Product Description
YDM 2030 Large Format Digital UV Printer 3D Ceramic Tiles UV Flatbed Printer
YDM 2030 Large Format Digital UV Printer 3D Ceramic Tiles UV Flatbed Printer can help you make faster printing, personalized and high resolution printing on many flatbed materials, such as Acrylic, Metal, Glass, PVC/PP board, Wooden, Phone case etc. At the same time , if you want to printing on bottles, only add a rotary attachment!
The printer has the advantages:
Japanese imported Original Ricoh GEN5 head for industrial grade
CMYK W LC LM W and Varnish optional
Japanese imported Original Ricoh GEN5 head for industrial grade
CMYK W LC LM W and Varnish optional
High quality printing adopting dual-level precision screw rod on the both sides of Y axis synchronous running(Printing error is less than 0.02 mm)
Auto height detection technology to detect print media thickness automatically
Automatic anti-static design to avoid dust ink drops flying
Advanced print head anti-crash system to avoid the risk of a collision between printer carriage and material
Auto height detection technology to detect print media thickness automatically
Automatic anti-static design to avoid dust ink drops flying
Advanced print head anti-crash system to avoid the risk of a collision between printer carriage and material
48-hour printing fatigue test to ensure that the printer can continue to work without uninterrupted.
Product Parameters
| Technical Data | UV2030 FLAGSHIP series |
| Print Technology | |
| Print Format | 200 x 300 cm/ 6.5 x 10 ft |
| Print Height | 10 cm/ 4 in ( Max. 40 cm/ 16 in ) |
| Head Model | Ricoh G5, 2-8 ph, Auto Heating |
| Color Set | CMYK+LM+LC+W+V, CMYK+W+V, CMYK+2W+2V, CMYK+W+CMYK |
| Control System | ROYAL |
| RIP Software | Printfactory by Holland Aurelon |
| Print Direction | Uni/ Bi-directional ; Front/ Rear Alternative |
| Application | Sign & Graphics Decoration & Construction Materials Industrial flagship Model, Designed or Batch production |
| Print Speed | Production mode: 18-25 sqm/h Quality mode: 15-18 sqm/h High resolution mode: 12-15 sqm/h |

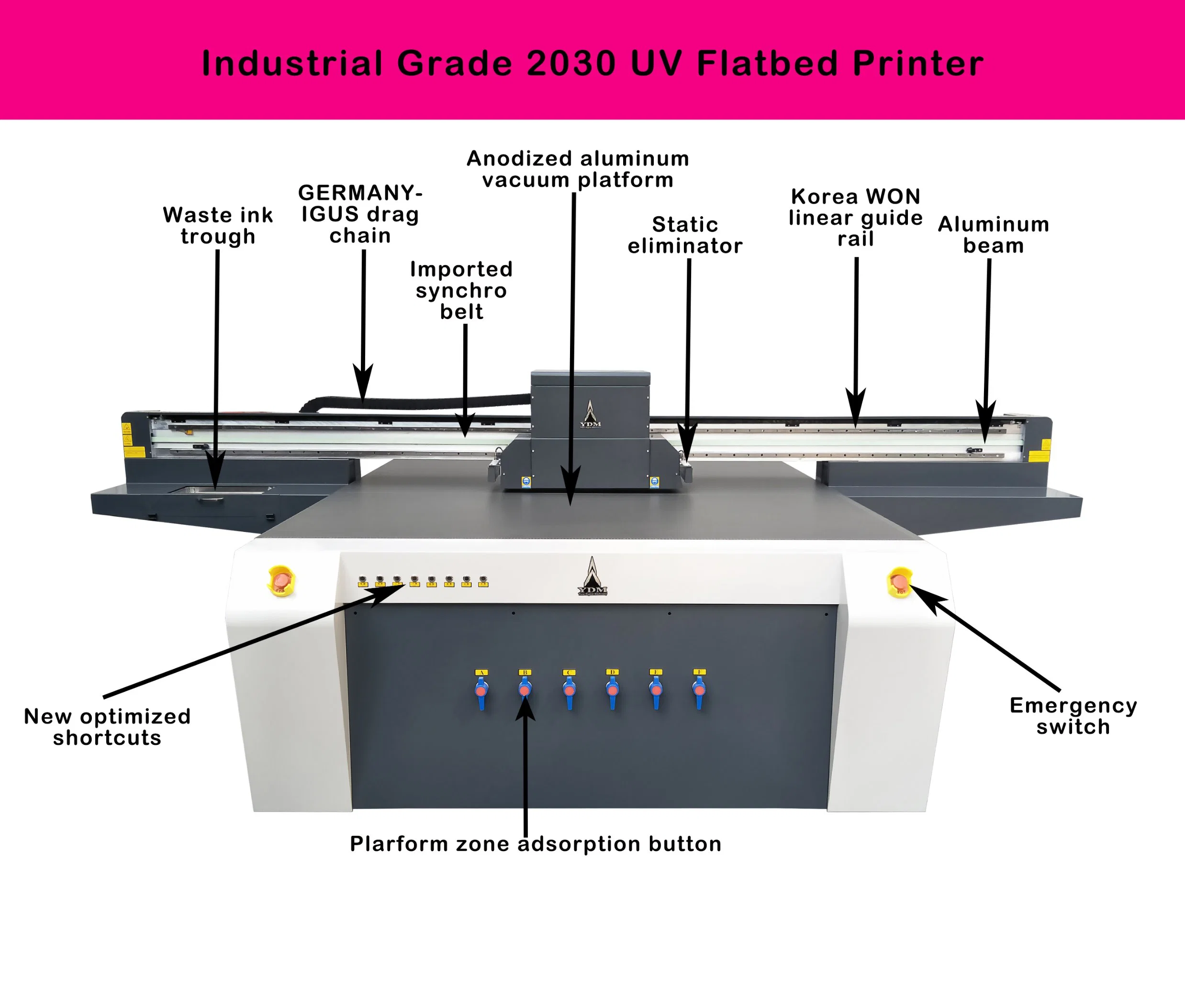

| Machine Highlight | |
| Heavy Duty Frame | Strengthened aluminum beam + Thicken steel base |
| Driving Mode | HIWIN linear rail + Servo motor + Lead screw + IGUS drag chain |
| Protective Device | Anti-collision + Static eliminator |
| Work Table | Anodized aluminum table + Independent vacuum control |
| Ink System | Negative pressure Ink supply + White Ink stirring and circulation |
| Curing System | Imported UV lamp, 30000 hours lifespan |
| Height Detection | Automatic sensor |
| Others | |
| Print Media | Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc |
| PC Configuration | Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G |
| Signal Transmission | Optical Fiber + USB 3.0 |
| Color Control | Comply with ICC standards, with curve and density adjustment function |
| File Format | TIFF/ JPEG/ POSTSCRIPT3/ PDF |
| Power Supply | AC220V,50/ 60HZ |
| Working Power | 4.5 KW |
| Noise | Standby < 32 dB ; Working < 65 dB |
| Machine Size | 4.3 m x 3.9 m x 1.45 m |
| Net Weight | 1600 KG |
Highlights
Application
About US
Established in 2005, YDM(short for YICAI digital machinery ) is a professional manufacturer of digital printing machinery in China ,officially verified by CE/SGE/BV. To meet customers' demands, YDM was always committed to machine innovation, optimize printing solutions and improve service.
At the same time, we have established YDM, FOCUS to attend global competition, and our machinery have been exported to USA, RUSSIA,INDIA, FRANCE ,TURKEY,MALAYSIA ect more than 50 countries.YDM has helped more than 1000 customers engaged in high-end digital printing industry.
"Precision, Efficiency, Stabil
ity"is the best praise from customer, we hope everyone will have best printing experience and make good profit .
YDM will keep working for the upgrade of global printing industry
Main business scope:
Industrial UV flatbed printer
Small format UV flatbed printer
Eco-solvent Inkjet printer
Large format UV Inkjet printer
Heavy duty Roll to Roll UV printer
Automatic CNC router
Other Printing machinery
