Product Description

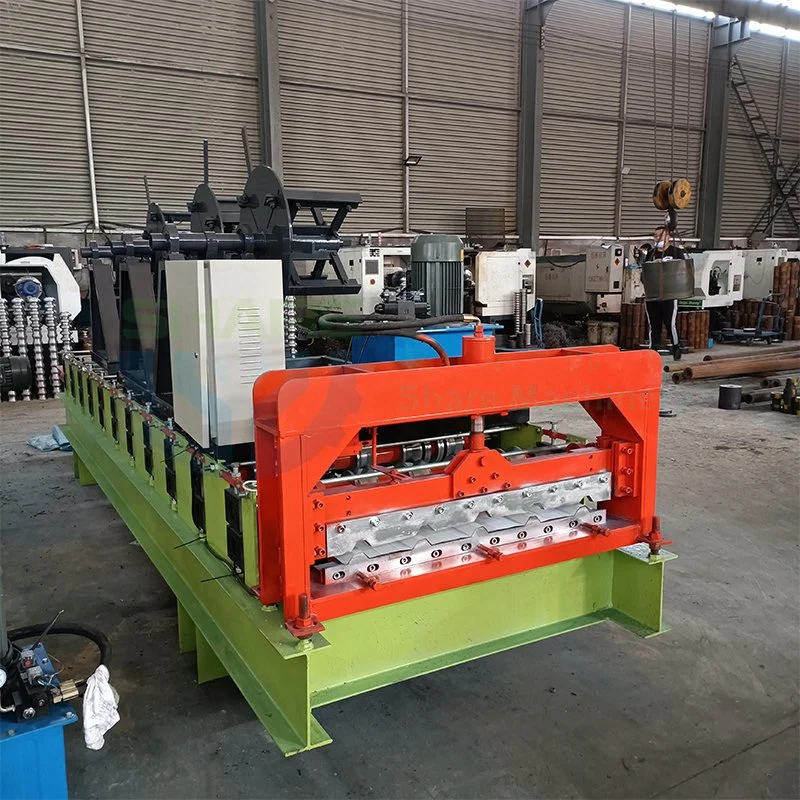

floor wall tiles press making machine shutter sheet metal rolling roffing forming machine
The advantages of 840-type tile machine :Low operation and maintenance costs, high dimensional accuracy of finished products, mechanical processing and stable operation, low energy consumption.
Model | SRYWJ-840 |
Voltage | 380v,50hz, 3 phases(customizable) |
Total Power | 6KW |
Speed | 8-10m/min |
Roll material thickness | 0.3-0.6mm |
Width of equipment inlet plate | 1000mm |
Sprocket chain specifications | 0.6" |
Driving method | Sprocket chain drive |
Molding press roller material | 45# steel |
Main engine large frame structure | 250H steel |
Molding shaft size | Diameter 70 |
Number of rolling molding rows | 11 rows |
Weight | 1500kgs |
Dimension | 4800*1300*1500mm |
