Application Scope:
The decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation, liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase particle sizes of 0.005-15mm, consistency of 1-40% and temperature of ≤ 100°C, esp. for separating the suspensions whose consistency and particle size vary greatly and for which recovery of filter cloth is difficult, such as treatment of PVC resins, ammonium sulfite, barrium carbonate, strontium sulphate, lithopone,starch, diatomite, plaster, bauxite, soybean protein, peanut protein, fruit juice, drinks, vegetable oil, citric acid, powder of blood, powder of titanium white, kaolin clay and drilling mud, etc., and dewatering of washed coal and fine coal, purification of waste oil, treatment of grain stillage liquid waste and municipal sewage and mineral classification. Besides, it is suitable for waste water treatment of electric power plant sludge, printing and dyeing sludge, paper manufacture sludge.
Two Phases Separation Principle:
The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated and directed into the interior of the bowl. The settled solids are conveyed axially towards the small end of the bowl by means of the screw conveyor, which rotates at a slightly different speed than the bowl. On the way to the discharge ports the solids are lifted out of the pond up along the dry beach. The solids are finally discharged from the bowl through the discharge ports into the collecting chamber of the casing that surrounds the bowl. From there the solids are removed by gravity through the outlet funnel. The liquid phase forming a hollow cylinder due to the centrifugal force, and flows towards the large end of the bowl. There the liquid overflows adjustable plate dams into the centrate chamber of the casing and is discharged by gravity.
Three Phases Separation Principle:
The light liquid phase is discharged into the casing through radial holes in the large end hub. The heavy liquid phase is discharged through axial holes in the large end hub. The liquid radius for the light liquid phase is smaller than the radius for the heavy liquid phase. The liquid level is controlled by plate dams. In order to prevent the light liquid phase from leaving the bowl through the heavy liquid phase outlet, a separating plate is placed on the inside of the large end hub. The heavy liquid phase has to pass under the separating plate before being discharged into the casing. The liquid radius for the heavy liquid phase is controlled by plate dams. The solids are discharged in the normal way.Bowl Diameter
(mm) | Bowl Speed
(rpm) | L / D | G - Force | Capacity
(m3/h) | Primary Motor
(Kw) | Weight
(Kg) | Dimension
(mm) |
250 | 4500~4600 | 3.0~5.0 | 2000~3500 | 3~5 | 11 | 760 | 1600×1100×850 |
300 | 4000~4600 | 3.0~5.0 | 2000~3500 | 3~15 | 11~15 | 1500 | 2470×1230×850 |
360 | 3200~4200 | 3.0~5.0 | 2000~3500 | 5~20 | 15~22 | 2000 | 2790×1300×880 |
400 | 3200~3900 | 3.0~4.8 | 2000~3500 | 5~30 | 18.5~30 | 2600 | 2950×1400×850 |
450 | 3000~3700 | 3.0~5.0 | 2000~3500 | 5~45 | 22~37 | 3200 | 3300×1500×920 |
500 | 2700~3450 | 3.0~5.0 | 2000~3500 | 10~80 | 30~55 | 5200 | 3730×1600×1100 |
550 | 2600~3300 | 3.0~5.0 | 2000~3500 | 10~90 | 45~75 | 6900 | 4000×1400×1600 |
600 | 2500~3200 | 3.0~5.0 | 2000~3500 | 20~95 | 37~90 | 7900 | 4200×1800×1350 |
650 | 2400~3100 | 3.0~5.0 | 2000~3500 | 20~105 | 37~90 | 8200 | 4300×1900×1350 |
750 | 2200~2900 | 3.0~5.0 | 2000~3500 | 30~120 | 55~135 | 12000 | 5000×2500×1500 |
900 | 1800~2600 | 3.0~5.0 | 2000~3500 | 40~180 | 75~160 | 18000 | 6500×2700×1500 |
product description

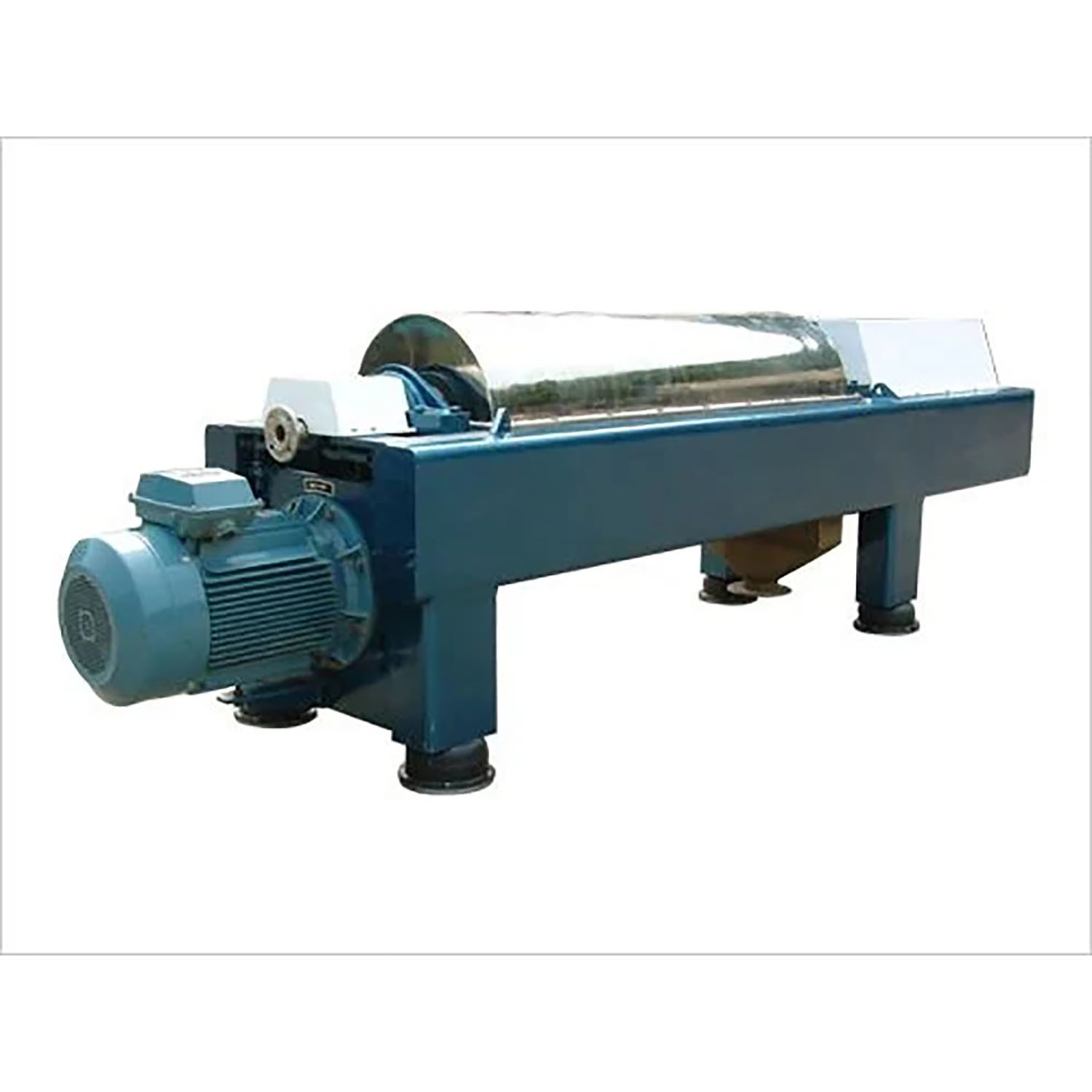

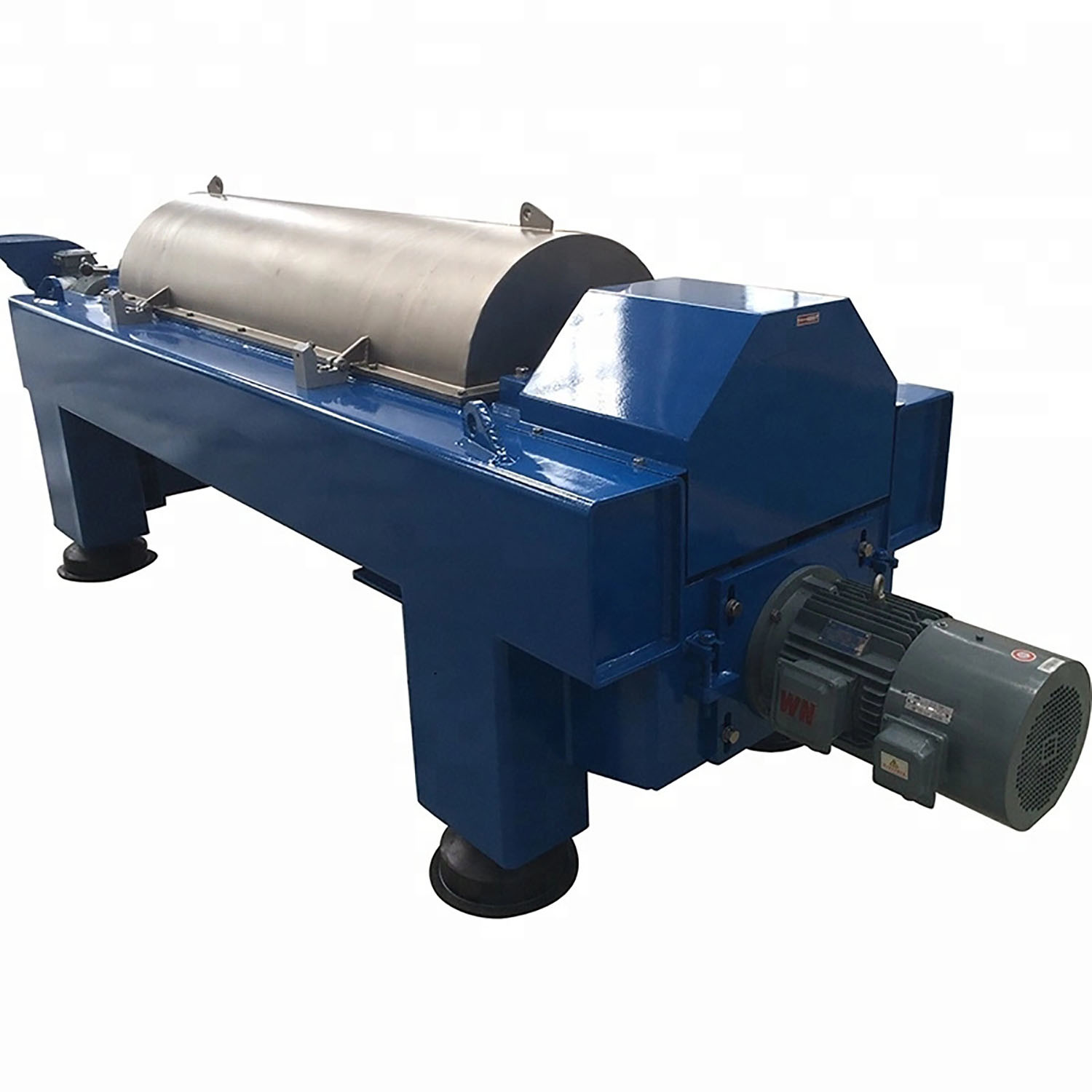

LW Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety or industries for separating all kinds of solid liquid suspension, defecating liquid phase with graded grains, and dehydrating sludge.
| | Processing capability(m³/h) |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
Polyoxyethylene resin | Sulphate | Diatomite | Starch |
Soy Protein | Peanut protein | Fruit juice | Ammonium acid |
Barium carbonate | Barium sulfate | Lit powder | Titanium dioxide |
Ore | China clay | Vegetable oil | Citric acid |
Waste oil purification | Washing water purification | Distiller's grains | Animal fat |
Blood meal | Power plant sludge | Printing and dyeing sludge | Paper sludge |
Weather desulfurization sludge | Power plant sludge | Activated sludge | Ammonia sludge |
Car wash sludge | Sludge drilling mud | Coal flotation waste | Cryolite flotation liquid |
Detials show
Packing & Delivery
Hebei Xinhuafa Petroleum Machinery Co, Ltd. is a specialized manufacturer that
focus on the manufacturing of oil drilling equipment and spare parts since 2006. Our main products are mud pump and accessories which can be interchangeable with many mud pump of oversea and domestic brand,including BOMCO F series, HHF series, NOV P series,LANSHI 3NB series, Oingzhou 3NB series and other mud pump. The products we supply are the cylinder liner, piston,valve(full open type and web type), piston rod, extension rod, cross head, bearing,v belt ,safety valve,manifold,sealing and other mud pump accessories.
The products all meet the requirements of IS09001, and API-7K (American Petroleum Association) standards.Since 2023,we expand our workshop which cover 20000 sqm,which can improve our production capacity and products stocks.
During the almost 20 years development,we have many advantages as below:
1.The company is located in Hengshui City which 2 hours by high speed train from Being.Very convenient if customers come to visit .
2.The factory is equipped with advanced machine, many technician with rich experience,strict quality control procedure make sure to supply best quality product.
3. Production capacity is 3000 units /month,and inventory enough can timely meet customer needs.
4. Perfect after-sales service and immediate response service at 24/7.
Principle: focus on service, and strive to achieve win-win for customers, employees and company.
Orientation: A professional One-stop supplier of oil and gas drilling equipment.
Mission: To provide high quality products and services for the oil and energy industry.
Values: Take responsibility and work hard,with seizing the day
Vision: To serve more than 80% of oil and gas drilling engineering customers within 5 years.
1. Do you have OEM service? Do you supply the parts? Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you proide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader , Westfaliar, Flottweg etc.
5. How do you protect the quality?
My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
6. Can we visit your end user or contact them?
Yes,users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.
