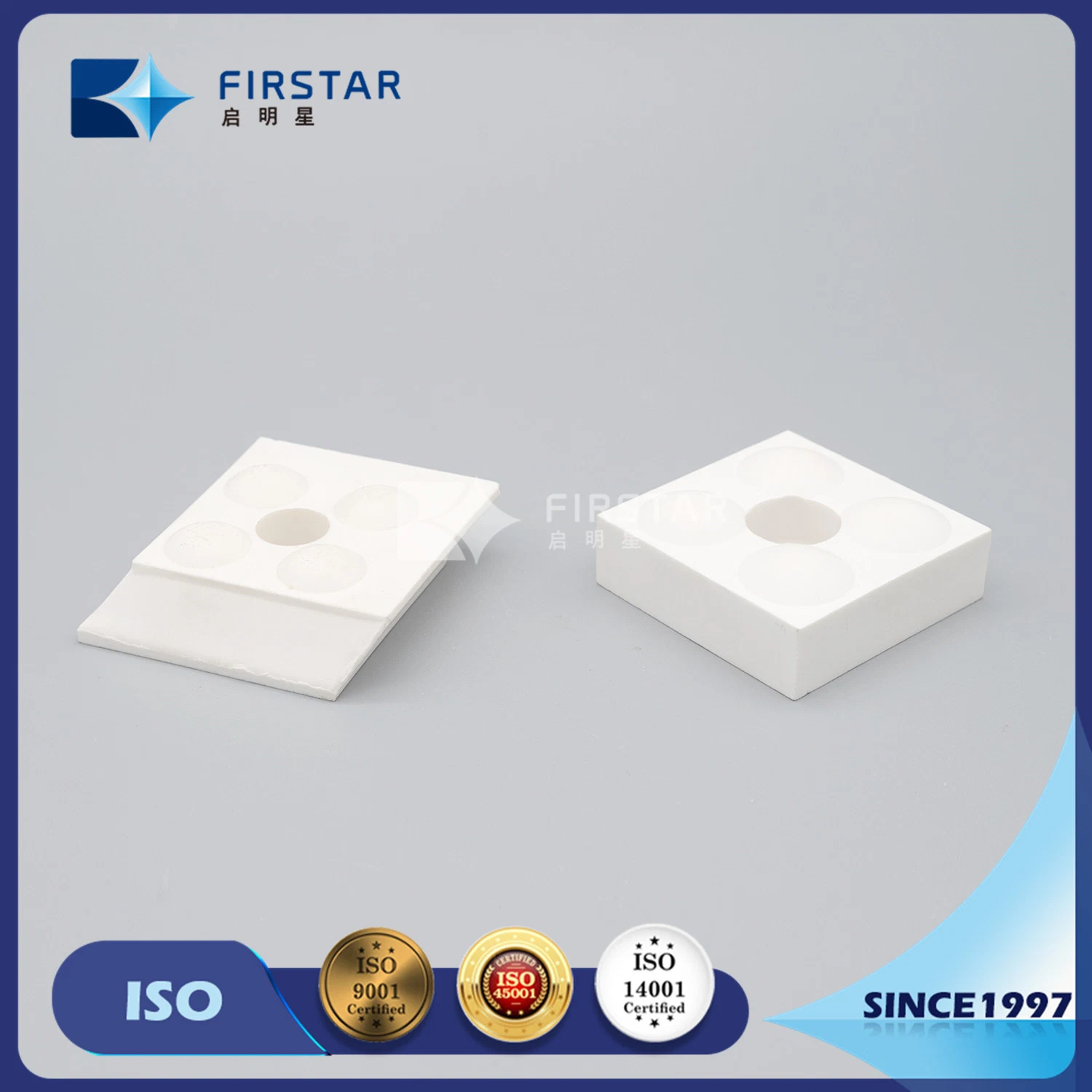

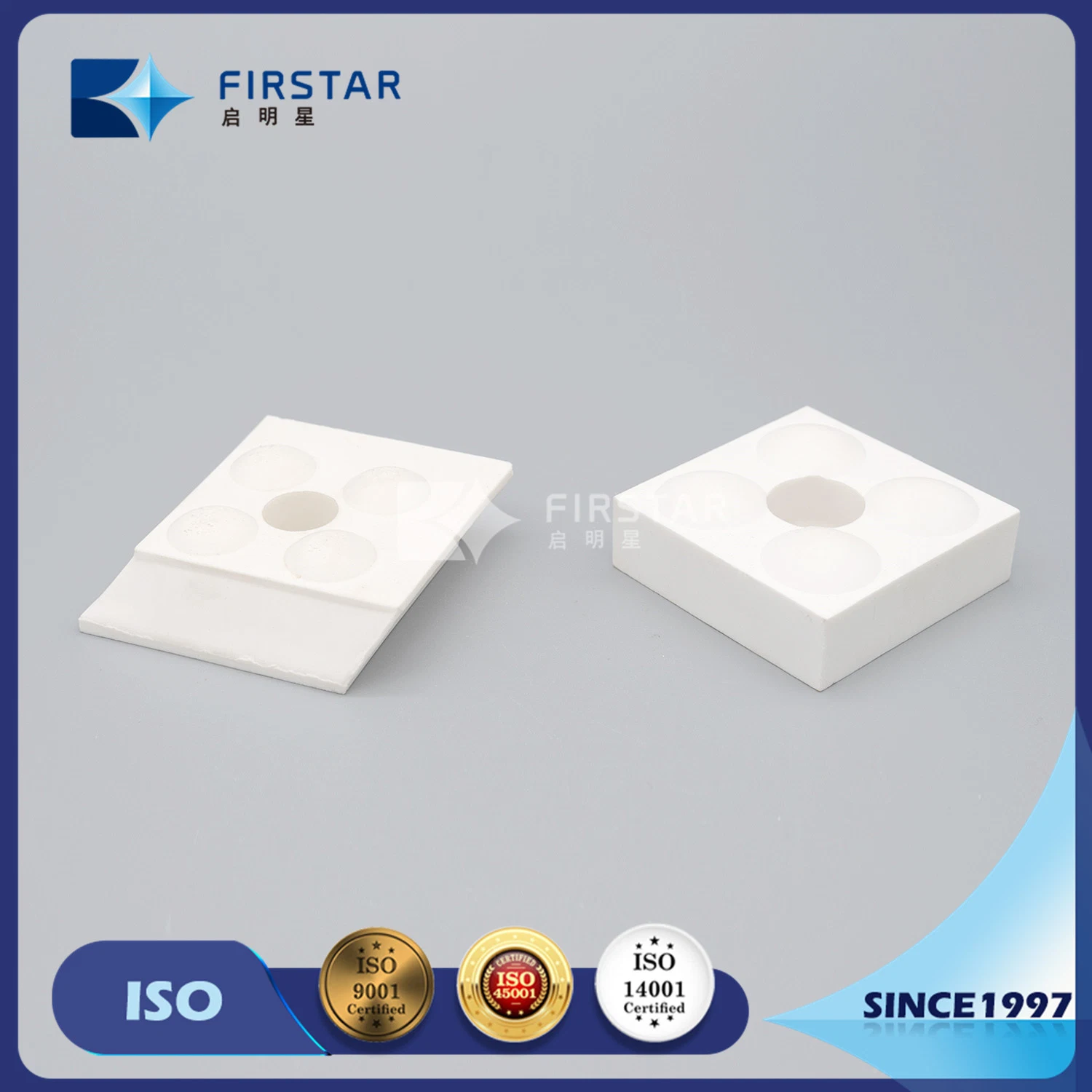

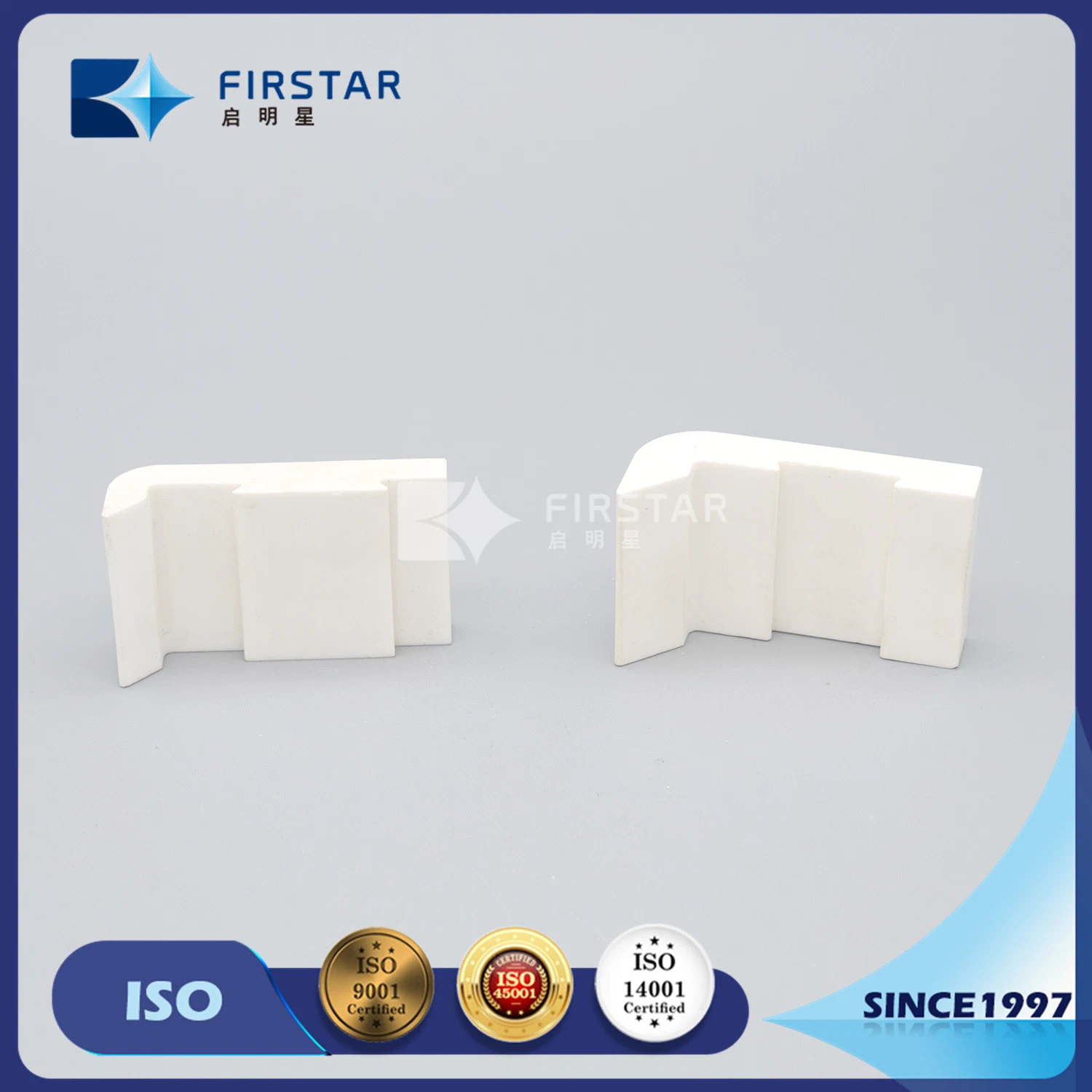

Weld-on Alumina Ceramic Wear Resistant Lining Tiles in Industrial Area Made From China Factory

Weldable Ceramic Tiles with Weld Washer and Ceramic Gap for Steel Fabrication Wear Solutions



Wear resistant ceramic which are mainly composed of at least 92%&95% Al2O3 and ZTA (zirconi toughened alumina) are the most widely used  in the world today.
Our products are made from strictly selected  alumina powder with uniform particle sizes and low CaO content.Wear resistant cera mics can be made through common dry press or isostatic pressing process and then sintering them at high temperature in the kiln. They are desirable lining materials for high wear equipment due to precise dimensions, high density,high alumina content,good flatness and stable quality.

Notes: We can make alumina wear tile according to your requirement.

Features

High hardness

Rockwell hardness of high alumina ceramics is up to HRA80-90 which is second only to diamond and far exceeds wear-resistant steel stainless



Excellent wear resistance

The wear resistance of high alumina ceramics is 266 times that of manganese steel and 171.5 times that of high chromium cast iron.According to our investigation & follow-up to the clients, the service life of equipment can be prolonged over 10 times under the same working conditions.



Corrosion resistance
High alumina ceramics are inorganic oxides with extremely stable molecular structure and no electrochemical corrosion, thus they can resist erosion of acid, alkali, salt solutions and organic Solvents.



Thermostability
Working temperature of high alumina ceramics can be as high as 1400ºC.



Good self-lubricity
High alumina ceramics have the properties of self-lubricity and inadhesion, the roughness is only 1/6 that of steel pipes thus less flow Resistance.



Light weight
The density of high alumina ceramics is about 3.6g/cm3, which is only half that of steel, thus easy for construction and installation



Wear solutions we provide

This is a complex process.Our engineers understand wear problems and specify
solutions to meet your operational environment. Material properties,tolerances, flatness,attachment methods, and material costs are all considered in a wear solution.





 Physical data:

Why Choose QMX wear ceramics?

Qimingxing offer quality wear and Ant- impact ceramics, in combination with our experienced and competent staff, ensure the increased efficiency and service life of all equipments and materials to which they are applied.

• Established Ultrafine Energy Efficiency Technology Research Institute
• Increase lifespan of wearable parts
• New improved technology and products
• Minimal downtime to minimize delays in production
• Variety of wear combating options available as a one stop solution
• Strong focus on product innovation supported by Chinese Academy of Sciences.
• Customizable application techniques to suite any wear problem









1. Are you a direct manufacturer or trader?

   We has been founded on 1997 and now has developed into a group company owning three factories, manufacturing alumina powder, alumina grinding media, wear resistant ceramic liner.
   Also we have our own equipment plant which manufacture rubber backed ceramic panel, pipe and cyclone.

   2.Can you supply samples to check the quality?

   Free samples with small quantity can be sent for quality checking.
   Express fee can be reduced from bulk order.

   3.What is the delivery time?

   Generally 7~30 days according to the Order quantity.

   4.What is your payment term?

   T/T, L/C at sight can be accepted. Also it can be negotiated.

5.What is your main markets?

Australia, Russia, Ukraine,South Africa, Panama, Chile, Peru, Brazil, USA and so on.

6.Can you accept small order?

Yes, orders small or big are from your trust. We will do the best to meet your requirements.

7.Can you receive orders with bulk quantity?

Yes, the production capacity is 18000 tons per year. We have ability to accept the big orders.

8.Can you speak English?

Yes, our staff can speak and write English very well.  We can supply 7*24 service and can reply your inquiry within short time.

9. The full range of the products you manufacture?

We manufacture Ceramic Wear Liner, Pipe&Pipe fitting, Cyclone.
               Ceramic Grinding Media
               Grinding Mills&Equipment lined with ceramics



1. Are your facility ISO Qualified?

   Yes, we are qualified manufacturer.
   ISO9001certificate,ISO14001 certificate,ISO 45001certificate have been acquired.
