Product Description

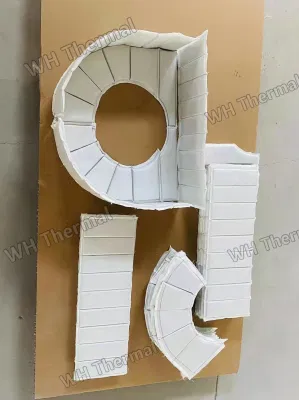

Nano Microporous Flexible Insulation Board WH nano flexible thermal insulation board is a nano high temperature thermal insulation board that is covered by special high temperature resistant fiber cloth and made into a grid shape .It has a certain flexibility and can be installed more closely on pipes or curved surfaces. It is also suitable for irregular shapes. The heat preservation of equipment components greatly increases the convenience of construction, has ultra-low thermal conductivity, and its heat preservation performance is 3-4 times that of traditional materials.
Product Features
- Extremely low thermal conductivity
- High thermal resistance and stability
- Most effective insulation up to 1,000°C (Our standard microporous can be up to 1200°C)
- A1 Non-combustible
- Thin lightweight and flexible
- Shock and vibration resistant
- Low shrinkage
- Environmentally friendly and safe
- Easy to shape, handle and install
Product Packaging
Wrapped with fiber cloth and sewed with high temperature thread to form a grid
Freight Packaging
Cartons/ Wooden cases/ Pallets.(suitable for long-distance transportation.)
1. Pile up each board on the wooden pallet;
2. then wrapped with protective film to prevent friction and movement;
3. then outer superthick carton board covered and wrapped with protective film again;
4. superthick carton board covered again with bingding tape fixed.
| Product | Nano Flexible Insulation Board | ||
| Type | WHMF-43-850 | WHMF-43-1000 | |
| Applicable temperature(ºC) | 850 | 1000 | |
| Density(Kg/m³) | 160-300 | 160-300 | |
| Specific heatºC kj/kg.K | 1.08 | 1.08 | |
| Permanent linear shrinkage (24h) | 800 ºC | <2.% | <0.5% |
| 1000 ºC | <2.5% | ||
| Thermal conductivity rate(W/m·k) | 200 ºC | 0.026 | 0.026 |
| 400 ºC | 0.031 | 0.031 | |
| 600 ºC | 0.037 | 0.037 | |
| 800 ºC | 0.042 | 0.042 | |
1000*600/500mm
Thickness: 5-12mm
Other products:
nano vacuum insulation board(for high temperature), VIP panel, high-density nano insulation board, nano aerogel insulation blanket, ultra-thin nano aerogel blanket and so on...... to learn more about these aerogel nano-porous insulation products, you can search relevant keywords in our store^_^
Any questions, feel free to let us know^_^(we can send the products manual for your reference) and our professional technical team can solve your problems and provide you with professional thermal solution.
More details about us!
WH Thermal Energy Technology (Shanghai) Co., Ltd. has been focusing on the research, manufacturing and sales of fire resistance, heat preservation, thermal insulation and energy saving products since its establishment in 2013. We also committed to providing customers with the most advanced high temperature insulation products and innovative energy saving solutions and adhere to the philosophy of "Professional stems from quality".
Recognized as "High-tech enterprise" by Shanghai in 2017, WH Thermal Energy Technology has obtained 26 intellectual property rights through independent research and development. It leads the industry in technical certifications, passing the certification of intellectual property management systems and obtaining ISO9001, ISO14001, ISO45001, EU CE and other system certification as well.
The company has a full range of nano-insulation and energy-saving materials' production line.All the products have passed the test of authorized third-party agencies and their performance has reached a level which leads the industry with an energy-saving rate of 10%~40%. The nano-aerogel microporous series, soluble environmental protection fiber series and ceramic fiber series provided by WH are widely used in aerospace, shipbuilding, electric power, metal smelting, petrochemical engineering, thermal equipment, waste gas treatment equipment, mining lifesaving equipment medical, new energy vehicle manufacturing and other industries.
About the shipping way:
We support air shipment, sea shipment, DHL, FedEx, ups, TNT, EMS,ARAMEX..
Why choose us?
1. Strict Quality Controled: self production, can control the quality ourself and provide customized products.
2. Our factory has large production capacity(2000tons per year) ensure the fast production cycle after confirmed the order.
(The material is the newest heat insulation material, produced in China which is the world's factory, the production cost is low compared to other developed countries(labor, logistics, materials, make the products competitive in your market.)
3. Professional Packing avoid damage and secure the goods in transportation
4. Delivery is fast
5. After sales service:we can provide 24 hours'consultation service.we are ready for your consultations at any time.
FAQ
Q1.Can we visit your factory?
Sure, seeing is believing.
Q2. Do you provide samples?
Yes, samples are available.
Q3.What are the payment terms?
Usually T/T, L/C etc are available for us.
Q4. How long is delivery time?
According to the quantity of the order.
Q6.How to slove the quality problems?
1. We can show the business license (which states that we produce and sell by ourselves for many years) and all the products have passed the test of authorized third-party agencies(REACH&ROSH10 TEST, ISO45001, ISO14001, ISO9001, European CE certification.....) and their performance has reached a level which leads the industry.
2. We can send free samples to test and we ensure that the sample' s quality is absolutely the same as the actual purchasing order' s quality!!
3. Every link of the production process is strictly controled and customer can visit the factory at any time.
Looking forward to your inquiry,
we will reply in 12 hours !
