Product Description
1-1. Basic introduction of Rubber tiles vulcanizing Press Machine made in China
Rubber tiles vulcanizing Press Machine made in China adopt to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) vulcanizing and compression molding.
Rubber tiles vulcanizing Press Machine adopted COLUMN and FRAME type, and it mainly used to produce various rubber products, such as SOLID TYRE, SHOE SOLES, RUBBER TILE, RUBBER SHEET,RUBBER MAT, RUBBER GASKET, RUBBER WHEELS, RUBBER BELT, RUBBER TREAD...
1.2 Structure of Rubber tiles vulcanizing Press Machine
-High speed open/close molds, high production efficiency.
-Automatic in/out mold and ejector device, low labor strength.
-Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
-The electric system adopt PLC programming control, which is easy to be operated.
-We can also design and produce according to customer's requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time.
4)Rubber tiles vulcanizing Press Machine Feature:
Adopting exhaust vacuum technology, could produce high accurate rubber components.
Controlled by PLC, several programs could to be process through automatic control, to check and adjust the heating temperature with automatic, improving control level, labor strength and product efficiency.
This large plate vulcanizing press is used to produce textile construction conveyor belt, such as ordinary rubber conveyor belt, nylon conveyor belt, PVG belt, steel wire core conveyor belt etc.
This machine is mainly used for vulcanizing and processing large rubber components, rubber products, rubber sheet, Rubber mat and large width rubber conveyor belt.
Rubber Hydraulic Vulcanizing Press Machine,Durable Recycled Rubber Speed Bump in Qingdao
FOR MORE INFORMATION : oulimachine.en.made-in-china.com
Type | XLB-D(Y)450x450x2 XLB-D 600*600*2/4 | XLB-D(Y)500x1000x2 XLB-D 600*800*1 | XLB-D(Y)750x850x1 XLB-D 800*800*1 |
(MN)Nominal mounding power | 1.00 | 1.00 | 1.60 |
Working layer number | 2 | 2/4 | 2 |
(mm)Piston stoke | 300 | 300 | 300 |
(Mpa)Plate pressure | 4.94/2.78 | 2.00/2.08 | 2.51/2.50 |
(KW)Main moter power | 2.2 | 2.2 | 2.2 |
(mm)Plate chearanle | 125-250 | 125-250 | 125-250 |
Calefaction manner | Electricity (Oil) | Electricity (Oil) | Electricity (Oil) |
Configuration | Column, Frame | Column, Frame | Column, Frame |
KW | 2.7/3.6 | 5.4/4.8 | 4.8/4.8 |

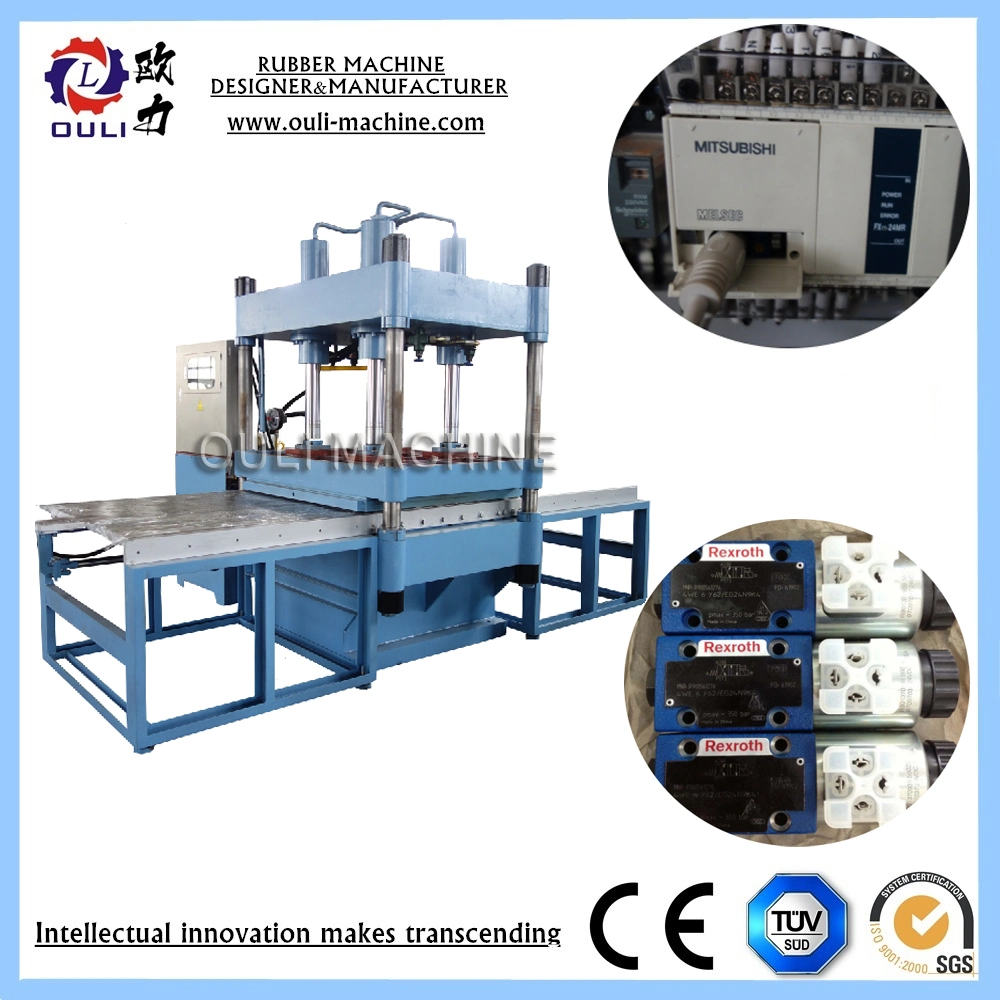

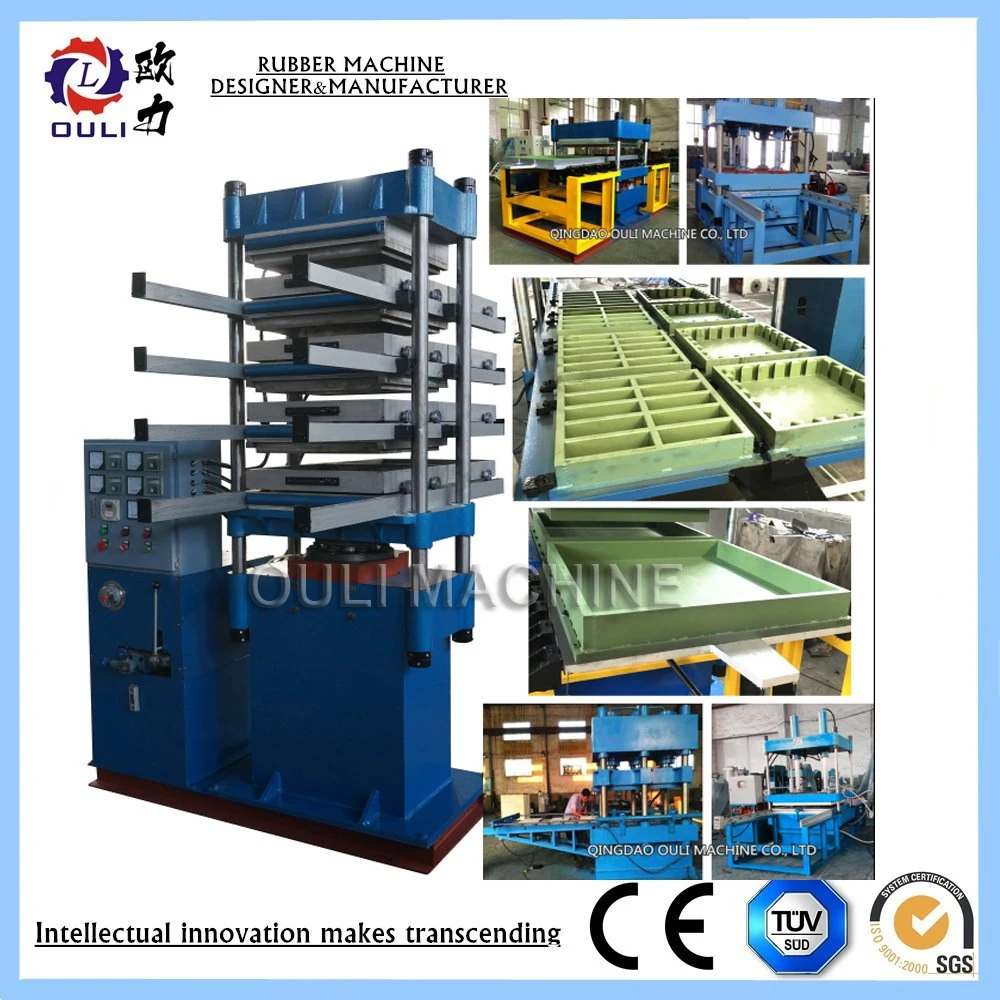

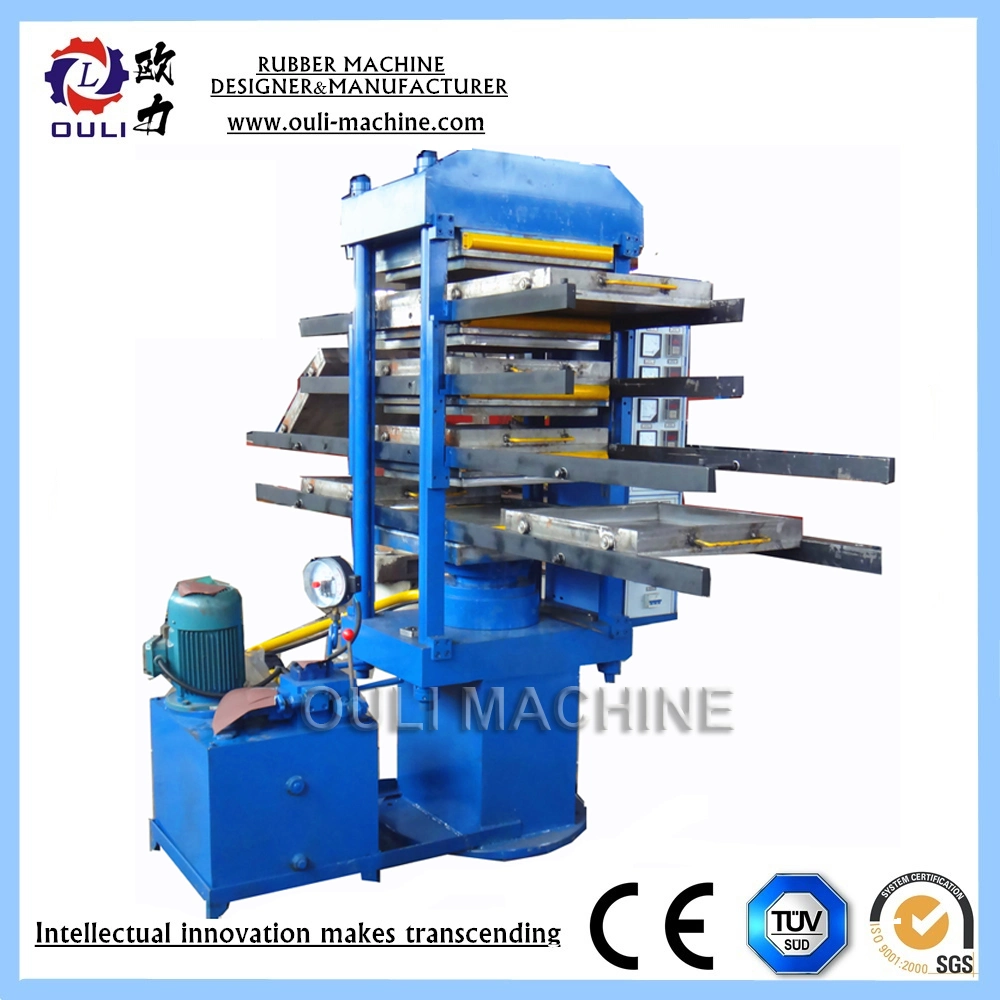

Sample pictures of Rubber tiles vulcanizing Press Machine
2-4. Rubber tiles vulcanizing Press Machine introduction.
1.Rubber tiles vulcanizing Press Machine adopts the advanced PLC control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan,japan, Germany.
3.Rubber tiles vulcanizing Press Machine is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4 Rubber tiles vulcanizing Press Machine are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance
COMPANY INFORMATION
OULI COMPANY---QINGDAO OULI MACHINE CO., LTD
Established in 1997 , Qingdao Ouli machine CO., LTD was located in Huangdao District, the west coast of Qingdao city,Shandong province ,China.
Branches in Suzhou , Dalian etc were created in 2012 and 2015 .
We are specialized in rubber machinery designing,manufacturing and maintenance works
OULI main products:
Rubber Kneader machine/ Rubber mixing equipment / Rubber vulcanizing machine / Automatic and semi-automatic waste tire recycling equipment / Rubber calendaring machine / Rubber extruding equipment / Reclaimed rubber production line
Our machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil .
We warmly welcome customers visit factory and technology discussion is highly appreciated .
1-2 OULI workshop
Related machines of Rubber tiles vulcanizing Press Machine
5. FAQ
Q1:Why choose Us?
1.More than 20 years history of OULI MACHINE factory.
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.
Accept urgent order for prompt shipment.
Q3:What's the warranty statement?
OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, OULI MACHINE warranty covers ONLY the product itself.
OULI MACHINE will assume no liability for labor costs, installation costs, or other losses.
Your warranty rights will be honored
Only when the product has been installed and used properly as deemed by OULI MACHINE,OULIMACHINE will not repair products damaged by improper use or faulty installation.
Q4:What about OULI oversea service ?
OULI will arrange oversea setting up and training works if customer need .
Customer should pay for accommodation , tickets and salary .
Meanwhile OULI has branches in different areas like north America , Southeast Asia , Brazil etc , etc .
Rubber tiles vulcanizing Press Machine
