Recycled UPVC PVC Asa Glazed Roofing Sheet Machine

Get durable and eco-friendly recycled UPVC PVC Asa glazed roofing sheets with our factory-made machine. Contact us for high-quality production.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
80/156
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
The Die Shape
Coat Hanger Style Flat Plate Die
Cooling Means
Water Cooling
Hauling Power
Frequency Conversion
Cutting Means
Shear Style (Pneumatic)
The Forming Unit
Roller Type
Hauling Speed(M/Min)
0.5-5
Cutting Follow Distance(mm)
500
Work Pressure(MPa)
0.4-0.6
Motor Brand
Simenz
Inverter Brand
ABB
Transport Package
According to Customers Needs
Specification
CE
Trademark
WEIER
Origin
Qingdao, China
HS Code
84772090
Production Capacity
5 Sets/Month

Product Description

UPVC PVC ASA glazed roofing sheet machine



1. Raw material & Final product of ROOF TILE MAKING MACHINE:

Raw material & formulation

PVC resin, Caco3, lubricant,stabilizing agent, pigment, anti-ultraviolet agent,Pigment etc

Central height:

1000mm

Max. Haul-off speed:

3m/min

Operation direction

From right to left (face to the operation panel)

Machine color

Standard color: RAL7016 (Anthracite grey) ;

RAL9002 (Grey white)

Description final product & Output capacity

Singlelayers PVC Roofing tile;

Width:500-1500mm,Thickness: 1.2~3.0mm;

Wave distance:180mm; Wave height:30mm;

Output:300-400kg/h(Depending on CaCO3 proportion)



2. Work condition (provide by customer) of ROOF TILE MAKING MACHINE

Warehouse/Workshop

Construction of foundations, construction works, earthworks, and wall works;

Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools;

Dimension (M×M×M): 20 (Length)×2.0 (width) ×2.5 (Height)

Crane: Machine positioning

Temperature & Humidity

≤40°C, ≤95%

Power supply

Supply voltage: 3*380V+N+PE;

Voltage tolerance: +5%/-5%;

Control voltage: 24VDC+220VAC;

Frequency: 50HZ+-2%

Wire/cables/water hose:

Wires/cables: from power supply to control cabinet of this production line and all electrical cables from control cabinet to each machine;

Water hose: supply water to machines and pools;

Cooling Water

Without dissolved or suspended minerals as phosphor, sulphur, iron, etc.

Inflow temperature T1: max. 15°C;

Outflow temperature T2: T2=T1+5°C;

Hardness: 5-8 OdH;

Reflux: without pressure

Lubrication oil:

Sinopec, Exxon mobile

Compressor

Unnecessary



3. consumption of  ROOF TILE MAKING MACHINE

Installation power

135KW,the real consumption only 80%

Cooling Water

≤20°C,   ≥0.3Mpa, ~4-5tons/hr

Compressedair

0.3m3/min, >0.6Mpa

Manpower

2-3 Person



Product Specification

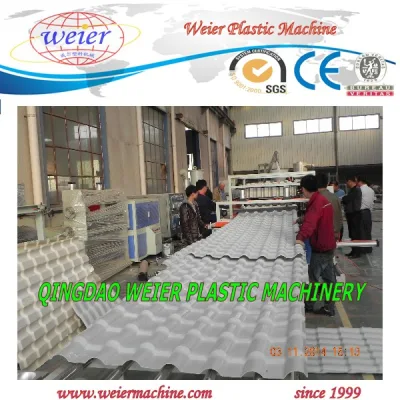

Glazed Tile Extrusion Line/Machine:

Glazed tile extrusion line/machine is consisted by following parts:

1) Extruder,

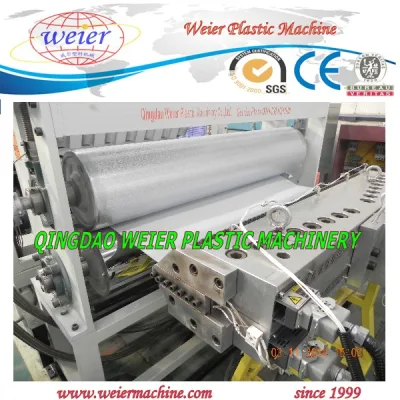

2) T-die and shaping downstream units,

Which can continuous extruding synthetic resin tile, single layer PVC glazed tile, PVC/PMMA and PVC/ASA composite multi-layer glazed tile

Glazed tile extrusion line/machine is mechanotronics, with the advantages of:

1) High production efficiency;

2) Reasonable structure compact;

3) Convenient operation and maintenance

4) Long use life etc.

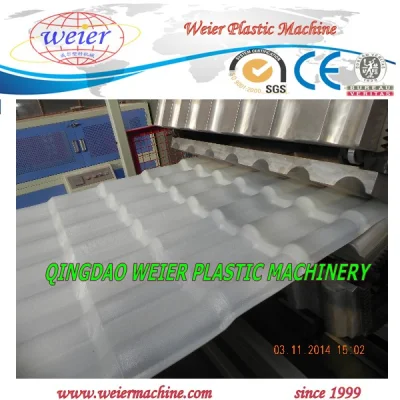

Compare with ordinary plastic tile, glazed tile has more beautiful appearance, better quality, and strong durability

And some special features, such as anti-fire, anti-corrosion, anti-freeze, good weather resistance and color retention,etc.



Application of  concrete roof tile
Glaze roof tile and resin tile can be high-grade plants, steel factories, warehouses, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plants, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.



4. Main commercial terms of ROOF TILE MAKING MACHINE

Project

PVC roofing tile extrusion line

Payment term

30% as down payment by T/T; 70% by T/T before delivery and after inspection

Delivery time

70 days since the date of receiving down payment

Packing

Wood pallet covered by plastic film

Warranty period

13 months since date of bill of lading

Recycled UPVC PVC Asa Glazed Roofing Sheet Machine
Recycled UPVC PVC Asa Glazed Roofing Sheet Machine
PVC three layer roof board plastic machine

The unit is comprised by a twin conical screw extruder and corresponding wave plate forming machine, tractor and cutting machine, can be used for continuously produce structural season resistance UPVC color block igniting plastic cement wave plate, if replacing the relevant component, the line can produce the chequer plank, possess steady molding performance, tight structure, high automation degree
 host model
SJSZ-65


SJSZ-80

 die shape
Coat hanger style flat plate die
L=1300mm


Cooling die dimensions


1300mm 600mm


Hauling power

.5KW (frequency conversion)

 forming unit
Cooling means


water cooling


Cutting means


Shear style
(pneumatic)

 big wave
R=15h=16.5
wave distance

63mm
Wave distance


Hauling velocity




0.5-5m/min


Cutting follow distance


500mm

 small wave
R=9h=8
wave distance
36mm
Wave distance

 Hauling roller length
1300mm


Work pressure

  0.4-0.6 MPa
