Basic Info.
Model NO.
SJSZ-80|156+50|30 or 65|30
Condition
New, Under The Order
Warranty
1year
Pipe Types
PVC ASA Composite Glazed Roof Tile
Delivery Conditions
Fob CIF CIP
Processing Period
40-60 Days
Delivery Period
30days
After-Sales Service
Send Engineers Install and Test Machine
Technical Support
Permanent
Dimension
20*4.0*3 (M)
Weight
12t
Output
350-450kg/H
PVC Roofing Machine Consists 2-1

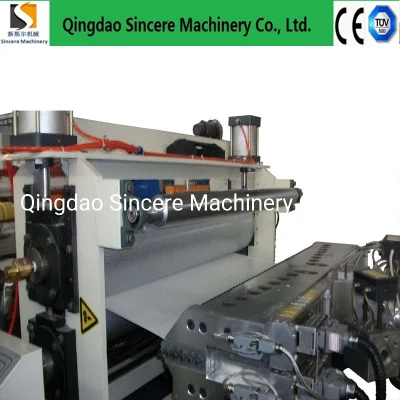

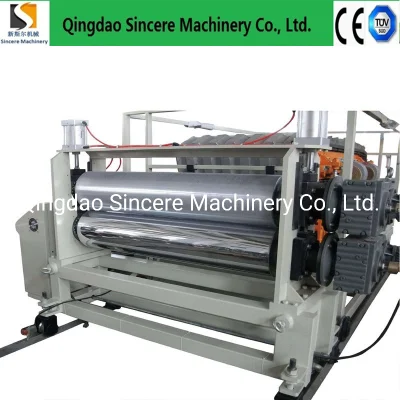

Extruder, T-Die, 2-Rollers Calender
PVC Roofing Machine Consists 2-2
Corrugated Forming Machine, Haul-off, Cutting Mach
PVC Resin Tile Features
Self-Cleaning, Anticorrosive, Recyclable
Optional Machines for The Line
Mixer, Pulverizer, Crusher, PVC Pelletizing Line
Electrical Elements
Siemens, Schneider, Omron, ABB
Transport Package
Stretch Film and Wooden Pallet, Wooden Packing
Specification
PVC ASA glazed roof tile Width 720/880/960/1040mm
Trademark
Sincere Machinery
Origin
Qingdao, China
HS Code
8477209000
Production Capacity
20sets\Year
Product Description

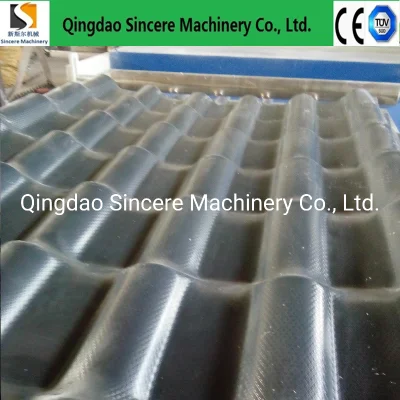

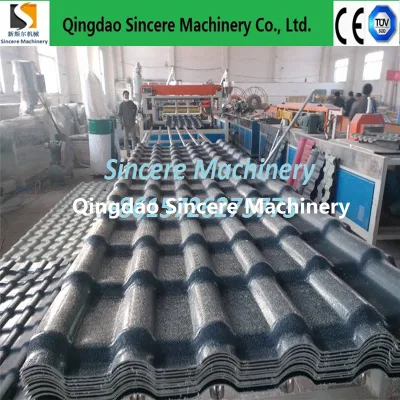

PVC ASA composite glazed roofing tile extrusion line extruding machine bamboo tile production line 880mm 1050mm.
720mm/880mm/960mm/1040mm/1050mm
1. PVC glazed roof tile extrusion production line advantages:
high production efficiency, the structure is reasonable and compact, easy operation and maintenance.
PVC glazed roof tile is widely used in pavilions, hotels, exhibition halls, resorts, families and other buildings. PVC glazed roof tile has a series of advantages: Weather resistance, Corrosion resistant performance, excellent load capacity, Shock resistant and low temperature resistant, Self clean and so on.
2. PVC glazed roof tile extrusion line configuration
Auxiliary machine:
3. Main Technical Specifications:
4. Raw material & Final product of ROOF TILE MAKING MACHINE:
5. Work condition (provide by customer) of ROOF TILE MAKING MACHINE:
6. Energy consumption of ROOF TILE MAKING MACHINE:
7. Main commercial terms of ROOF TILE MAKING MACHINE:
Contacts:
Ekaterina
720mm/880mm/960mm/1040mm/1050mm
1. PVC glazed roof tile extrusion production line advantages:
high production efficiency, the structure is reasonable and compact, easy operation and maintenance.
PVC glazed roof tile is widely used in pavilions, hotels, exhibition halls, resorts, families and other buildings. PVC glazed roof tile has a series of advantages: Weather resistance, Corrosion resistant performance, excellent load capacity, Shock resistant and low temperature resistant, Self clean and so on.
2. PVC glazed roof tile extrusion line configuration
| No | Name | Number |
| 1 | Screw loader for SJZ80/156 | 1set |
| 2 | SJZ80/156 Conical twin screw extruder | 1set |
| 3 | drying hopper for SJ50/30 | 1set |
| 4 | Vacuum loader for SJ50/30 | 1set |
| 5 | SJ50/30 single screw extruder | 1set |
| 6 | Extrusion Mould and Distributor (T-die) | 1set |
| 7 | DistributorForming machine | 1set |
| 8 | Embossing roller Trimming device | 1set |
| 9 | Embossing roller | 1set |
| 10 | Cutter | 1set |
| 11 | Stacker | 1set |
Auxiliary machine:
| No | Name | Number |
| 1 | Accessories machines for Top Ridge(Europe Style Tile), Side ridge, three way ridge, End Ridge, fittings. | 1.1)Flat sheet haul-off unit, 1 set 1.2)Oven,1set 1.3)Ridge tile forming unit,1set 1.4)ridge tile mold, 4sets |
| 2 | Mixer 200|500 or 300|600 | 1set |
| 3 | Screw loader | 1set |
| 4 | Crusher | 1set |
| 5 | Pulverizer (milling machine) | 1set |
3. Main Technical Specifications:
| Extruder | SJZS-80/156 | SJ50/30 |
| Productivity | 350kg/h | 50kg/h |
| Haul-off power | 20KN | |
| Haul-off speed | 0.3~5m/min | |

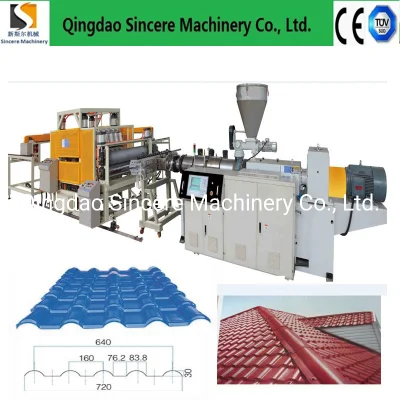

| Product specifications (Can be produced according to customer requirements) | Width title:720/880/960/1040mm Pitch:160mm wave length:220mm wave height:30mm Thickness:1~3mm Materials:PVC,ASA or PMMA with different colors and some additives. | |
4. Raw material & Final product of ROOF TILE MAKING MACHINE:
| Raw material & formulation | PVC resin, Caco3, lubricant,stabilizing agent, pigment, anti-ultraviolet agent,Pigment etc |
| Central height: | 1000mm |
| Max. Haul-off speed: | 3m/min |
| Operation direction | From right to left (face to the operation panel) |
| Machine color | Standard color: RAL7016 (Anthracite grey) ; RAL9002 (Grey white) |
| Description final product & Output capacity | Singlelayers PVC Roofing tile; Width:500-1500mm,Thickness: 1.2~3.0mm; Wave distance:180mm; Wave height:30mm; Output:300-400kg/h(Depending on CaCO3 proportion) |
5. Work condition (provide by customer) of ROOF TILE MAKING MACHINE:
| Warehouse/Workshop | Construction of foundations, construction works, earthworks, and wall works; Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools; Dimension (M×M×M): 20 (Length)×2.0 (width) ×2.5 (Height) Crane: Machine positioning |
| Temperature & Humidity | ≤40°C, ≤95% |
| Power supply | Supply voltage: 3*380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ+-2% |
| Wire/cables/water hose: | Wires/cables: from power supply to control cabinet of this production line and all electrical cables from control cabinet to each machine; Water hose: supply water to machines and pools; |
| Cooling Water | Without dissolved or suspended minerals as phosphor, sulphur, iron, etc. Inflow temperature T1: max. 15°C; Outflow temperature T2: T2=T1+5°C; Hardness: 5-8 OdH; Reflux: without pressure |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | Unnecessary |
6. Energy consumption of ROOF TILE MAKING MACHINE:
| Installation power | 135KW,the real consumption only 80% |
| Cooling Water | ≤20°C, ≥0.3Mpa, ~4-5tons/hr |
| Compressedair | 0.3m3/min, >0.6Mpa |
| Manpower | 2-3 Person |
7. Main commercial terms of ROOF TILE MAKING MACHINE:
| Project | PVC roofing tile extrusion line |
| Payment term | 30% as down payment by T/T; 70% by T/T before delivery and after inspection |
| Delivery time | 70 days since the date of receiving down payment |
| Packing | Wood pallet covered by plastic film |
| Warranty period | 12 months since date of bill of lading |
