Product Description
-Maintains durability 20 years! -Lifetime guarantee
-No odor -Slip-resistant
-Antimicrobial -Resists chemicals, salt, oil, and hot tires
-Dense surface resistant to bacteria, moisture and easy to clean
-Contains no solvent, allowing for interior application without harmful
-10X durability compared to kits sold in national chains
| Coating type | HL-001 penetrating epoxy primer | ||
| Flash point | 7° | Solid volume ratio | About 40% |
| Dilution ratio | (Volume ratio) not more than 10% | colour | Transparent |
| proportion | About 0.97 (g/cm³) | luster | bright |
| Dry film thickness | 40um | The mixing ratio | Main agent/curing agent (weight ratio) |
| Wet mold thickness | 100um | Package weight | 20kg |
| Theoretical coating amount | About 10Square meter/kg | ||
| Coating type | HL-001-1 Solvent Free Epoxy Resin Primer Coat | ||
| Flash point | 7° | Solid volume ratio | About 40% |
| Dilution ratio | (Volume ratio) not more than 10% | colour | Transparent |
| proportion | About 1.5(g/cm³) | luster | bright |
| Dry film thickness | 90um | The mixing ratio | Main agent/curing agent (weight ratio)Summer type 2:1 |
| Wet mold thickness | 100um | Package weight | 20kg |
| Theoretical coating amount | About 3kg/Square meter | ||
| Coating type | HL-002 epoxy intermediate high solids coat | ||
| Color and appearance of paint film | Various colors, flat and smooth | Alkali resistance (10%HCL) | About 40% |
| Adhesion (1mm grid) level | ≤1 | Pencil hardness | ≥HB |
| Viscosity (25°) | 1000±500CPS | Acid resistance (10%HCL) | Transparent |
| Impact resistance | ≥50 | Abrasion resistance (500g, 1000 revolutions) | bright |
| Surface dry | ≤4h | Ratio | Main agent/curing agent (weight ratio) |
| Hard work | ≤24h | ||
| Coating type | HL-003 Solvent Epoxy Resin Finish Coat | ||
| Dilution rate | DR-100 | colour | See special color card |
| Dilution ratio | (Volume ratio) not more than 10% | luster | bright |
| proportion | About 1.7 (g/cm³) white | The mixing ratio | Main agent/curing agent (weight ratio) 4:1 |
| Dry film thickness | 40um | Package weight | 20kg |
| Theoretical coating amount | Approximately 11.3Square meter/kg, the dry film thickness of coating is 40um, and the amount of coating varies depending on the substrate, the constructor and the construction method. | Wet film thickness | 88um |
| Solid volume ratio | About 45% | ||
| Coating type | HL-003-1 Epoxy Resin Highlight Finish Coat | ||
| proportion | About 1.5 (g/cm³) | colour | See special color card |
| Dry film thickness | 80um | Construction method | Roll coating, spraying |
| Solid volume ratio | About 99±1 | luster | highlight |
| Theoretical coating amount | Approximately 11.3Square meter/kg, the dry film thickness of coating is 40um, and the amount of coating varies depending on the substrate, the constructor and the construction method. | The mixing ratio | Main agent/curing agent (volume ratio) 4:1 |
| Pencil hardness | 3h | Package weight | 20kg |

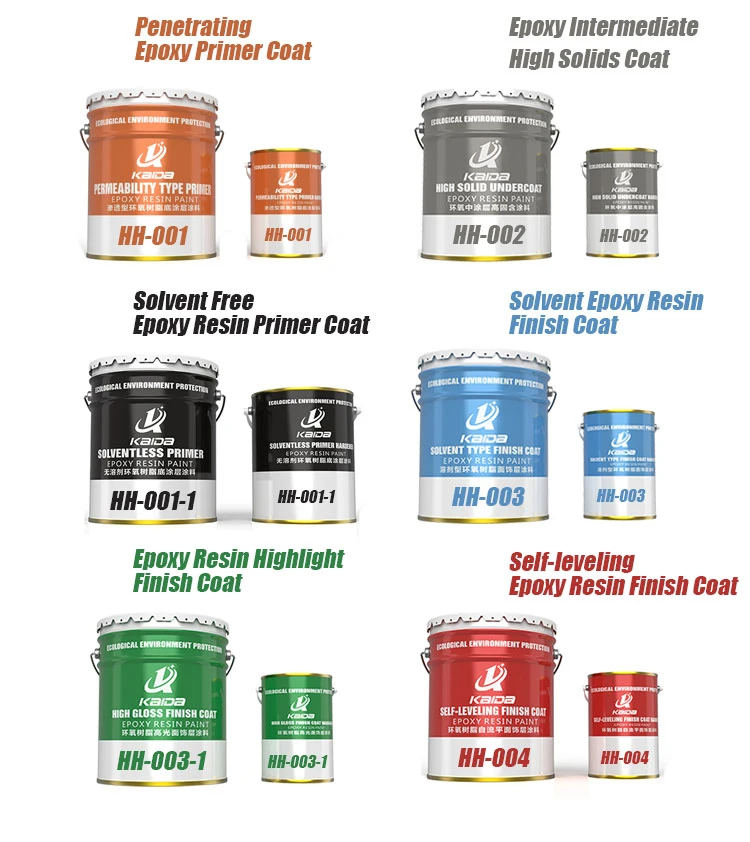

Various Types of Coatings to Meet Your Different Floor Needs
| HH-001 Penetrating Epoxy Primer Coat |
| HH-001-1 Solvent Free Epoxy Resin Primer Coat |
| HH-002 Epoxy Intermediate Coating High Solids Coating |
| HH-003 Solvent Epoxy Resin Finish Coat |
| HH-003-1 Epoxy Resin Highlight Finish Coat |
| HH-003-2 Solvent Free Epoxy Lacquer Finish Coat |
| HH-004 Self-leveling Epoxy Resin Finish Coat |
| HH-005 Epoxy Conductive Primer |
| HH-006 Solvent Free Anti-static Epoxy Self-leveling Finish Coat |
| HH-007 Solvent Anti-static Epoxy Finish Coat |
| HH-008 Epoxy Resin Anti-corrosion Finish Coat |
| HH-009 Waterborne Epoxy Primer |
| HH-010 Waterborne Epoxy Finish Coat |
| HH-011 Waterborne Epoxy Curing Agent |
| HH-012 Super Wear-resistant Micro-rough Finish Coat |
| HH-013 Epoxy Color Sand Self-leveling Finish Coat |
| HH-014 Solvent Free Clear Varnish |
| HH-015 Epoxy Iron Red (gray) Antirust Paint |
| HH-016 Retro Epoxy Floor Paint |
-High strength, wear resistance and compression resistance, highly durable
-Waterproof and non-slip, strong adhesion, Clean and environmentally friendly, no harmful substances
-It dries quickly, and it is ready to use without delay
-Simple operation, brushing after opening the cover, low labor cost
-Scrub resistant, easy to clean and easy to care for
-The protective film has high strength and is not easy for stains to penetrate
7 Step Guide on How to Apply Epoxy Floor Paint
Step 1. Preparing the surface before applying the epoxy
Step 2. Sweeping and cleaning of the floor
Step 3. How to Apply Epoxy: Prime the floor with a suitable epoxy primer
Step 4. Fill all cracks, holes etc with epoxy grout.
Step 5. Application of the first coat of epoxy paint
Step 6. Final Sanding and Filling before applying the final epoxy floor paint
Step 7 Apply the final coat.
Construction Conditions:
1. Substrate requirements
The painted surface of architectural coatings must be dry, firm, clean and smooth;
Dry: the floor humidity is lower than 6%RH, and the PH value is less than 10;
Firmness: no loose powder, no loose patent leather on the old ground;
Clean: Free of oil, grease, mildew, algae and other adherents.
2. Construction environment:
The ground temperature should not be lower than 5ºC, and the ambient humidity should be lower than 85%RH to ensure good film formation.
3. Construction precautions: This product can be appropriately added with diluent depending on different construction methods and construction environments, but the dilution ratio should be strictly controlled. Excessive dilution of the main agent and curing agent must be mixed in the correct proportion. The main agent should be mixed with an electric mixer first. Then slowly add the curing agent and stir well.
