Product Description

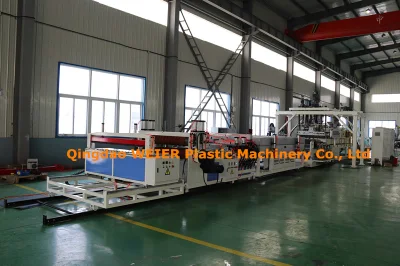

PC corrugated roof sheet machine
1. Raw material & Final product of ROOF TILE MAKING MACHINE:
Raw material & formulation | PVC resin, Caco3, lubricant,stabilizing agent, pigment, anti-ultraviolet agent,Pigment etc |
Central height: | 1000mm |
Max. Haul-off speed: | 3m/min |
Operation direction | From right to left (face to the operation panel) |
Machine color | Standard color: RAL7016 (Anthracite grey) ; RAL9002 (Grey white) |

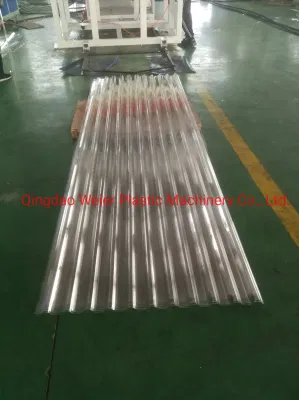

Description final product & Output capacity | Singlelayers PVC Roofing tile; Width:500-1500mm,Thickness: 1.2~3.0mm; Wave distance:180mm; Wave height:30mm; Output:300-400kg/h(Depending on CaCO3 proportion) |
2. Work condition (provide by customer) of ROOF TILE MAKING MACHINE
Warehouse/Workshop | Construction of foundations, construction works, earthworks, and wall works; Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools; Dimension (M×M×M): 20 (Length)×2.0 (width) ×2.5 (Height) Crane: Machine positioning |
Temperature & Humidity | ≤40°C, ≤95% |
Power supply | Supply voltage: 3*380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ+-2% |
Wire/cables/water hose: | Wires/cables: from power supply to control cabinet of this production line and all electrical cables from control cabinet to each machine; Water hose: supply water to machines and pools; |
Cooling Water | Without dissolved or suspended minerals as phosphor, sulphur, iron, etc. Inflow temperature T1: max. 15°C; Outflow temperature T2: T2=T1+5°C; Hardness: 5-8 OdH; Reflux: without pressure |
Lubrication oil: | Sinopec, Exxon mobile |
Compressor | Unnecessary |
3. Energy consumption of ROOF TILE MAKING MACHINE
Installation power | 135KW,the real consumption only 80% |
Cooling Water | ≤20°C, ≥0.3Mpa, ~4-5tons/hr |
Compressedair | 0.3m3/min, >0.6Mpa |
Manpower | 2-3 Person |
Product Specification
Glazed Tile Extrusion Line/Machine:
Glazed tile extrusion line/machine is consisted by following parts:
1) Extruder,

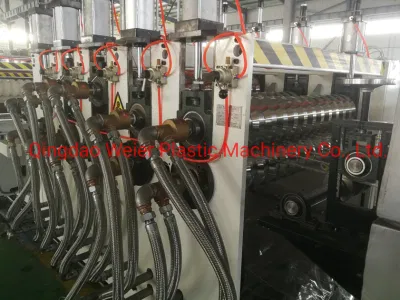

2) T-die and shaping downstream units,
Which can continuous extruding synthetic resin tile, single layer PVC glazed tile, PVC/PMMA and PVC/ASA composite multi-layer glazed tile
Glazed tile extrusion line/machine is mechanotronics, with the advantages of:
1) High production efficiency;
2) Reasonable structure compact;
3) Convenient operation and maintenance
4) Long use life etc.
Compare with ordinary plastic tile, glazed tile has more beautiful appearance, better quality, and strong durability
And some special features, such as anti-fire, anti-corrosion, anti-freeze, good weather resistance and color retention,etc.
Application of concrete roof tile
Glaze roof tile and resin tile can be high-grade plants, steel factories, warehouses, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plants, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.
