Product Description
| Model | DFY-5/40 | DFY-10/40 | DFY-20/40 | ||
| Technical data | Temperature range | -40~99ºC;±0.1ºC | |||
| Voltage(V) | 220V/50Hz,220V/60Hz | ||||
| Phase(P) | 1 | ||||
| Heating power(Kw) | 1 | 2 | 3 | ||
| Power(Kw) | 1.75 | 3 | 4.5 | ||
| Cooling capacity(w) | 0ºC | 875 | 1800 | 2300 | |
| -10ºC | 650 | 1650 | 1750 | ||
| -20ºC | 320 | 1800 | 950 | ||
| -40ºC | 225 | 350 | 550 | ||
| Temperature sensor | PT100 | ||||
| Protection | Overvoltage, time delay, overcurrent, overheating, leakage, protector | ||||

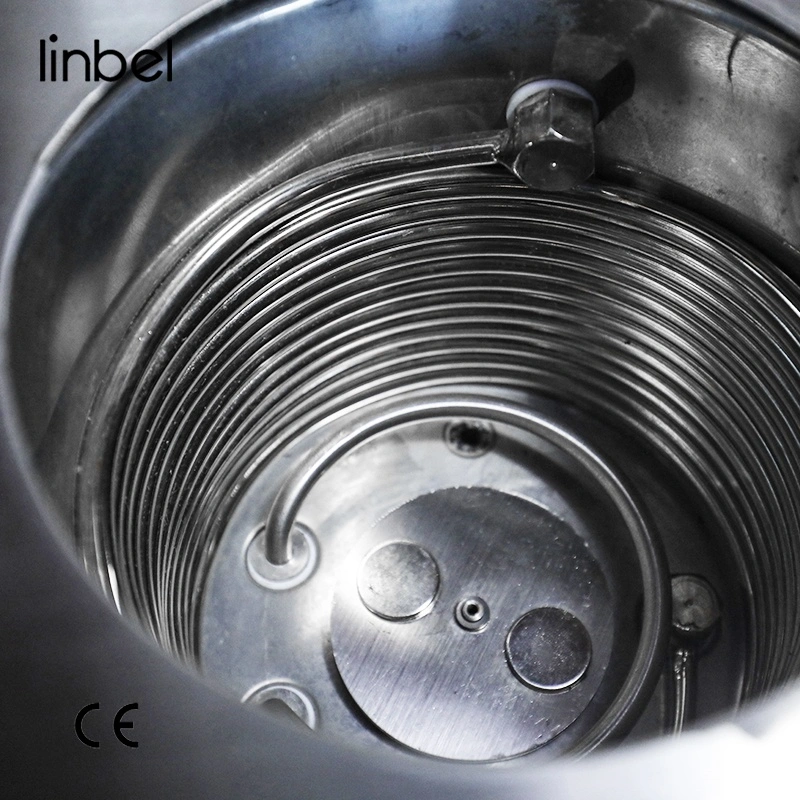

| Tank volume(L) | 5 | 10 | 20 | ||
| Tank size(mm) | 180*180 | 300*200 | 350*250 | ||
| Opening size(mm) | 180 | 240 | 320 | ||
| Max flask volume(L) | 2 | 5 | 10 | ||
| Compressor | Type | Rotor compressor | |||
| Brand | Secop | Tecumseh | |||
| Power(kW) | 0.75 | 1.125 | 2.25 | ||
| Current(A) | 3.4 | 5 | 10 | ||
| Horsepower | 1 | 1½ | 3 | ||
| Quantity | 1 | ||||
| Refrigerant | R404A | ||||
| Circulating pump | Power(W) | 100 | |||
| Current(A) | 0.5 | ||||
| Rated head(m) | 6 | ||||
| Rated flow(L/min) | 10 | ||||
| Size | L*W*H(mm) | 477*344*683 | 540*424*776 | 590*478*840 | |
| *PLC | Control system | Siemens S7-200 smart PLC | |||
| Programming | 5 programs can be written, each with up to 40 steps | ||||
| Control model | Material temperature and equipment outlet temperature can be switched automatically | ||||
| Protocol | Modbus RTU protocol RS485 interface (optional RS232 Ethernet) | ||||

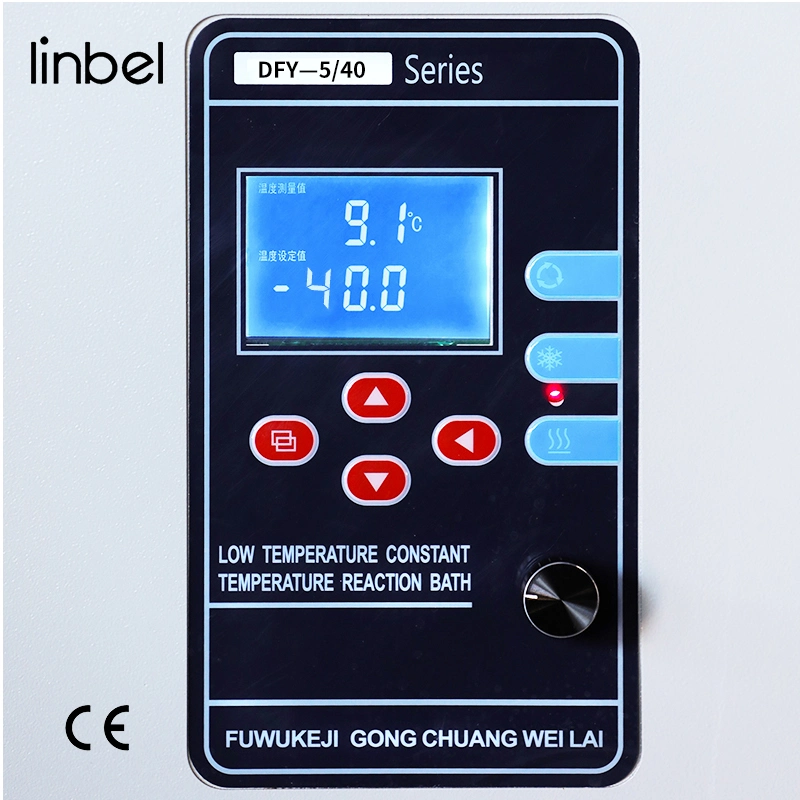

| Control panel | 7-inch Siemens color touch screen (optional 10 inch) | ||||
| Data export | Support USB flash disk data export, and export temperature data in TXT format | ||||
| Packing list | 1 gas valve,1 PTFE tape,1 vertical pole,1 cross shaped frame | ||||
| 2 silicone tape insulation hoses | |||||
| Operation instructions | |||||
| All data are measured in the factory, and users will have errors in the process of use | |||||
| *PLC for optional PLC part data, it is not applicable if there is no PLC | |||||
