Product Description
CJ-1610

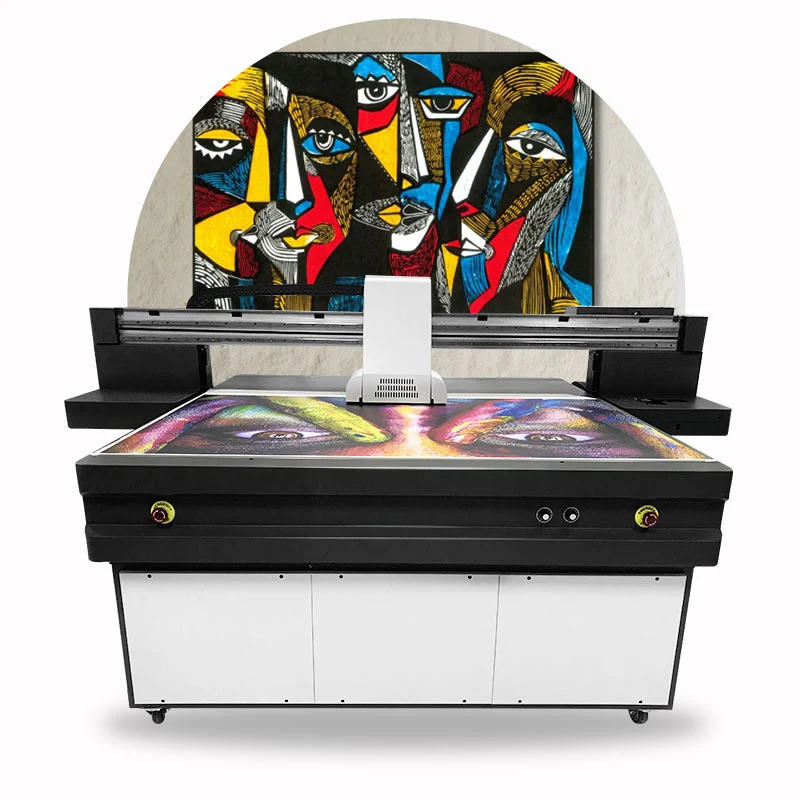

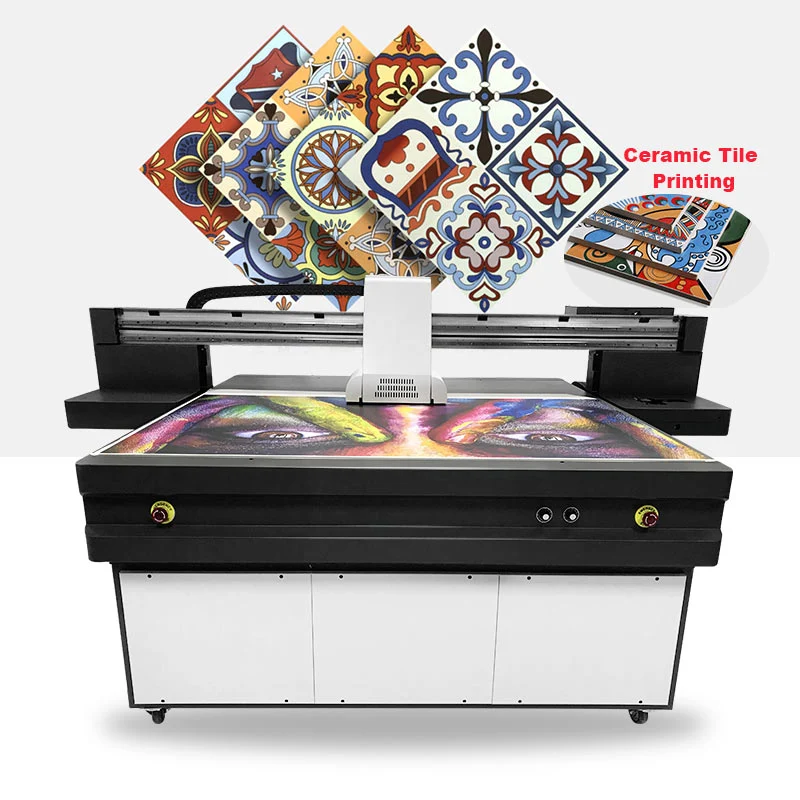

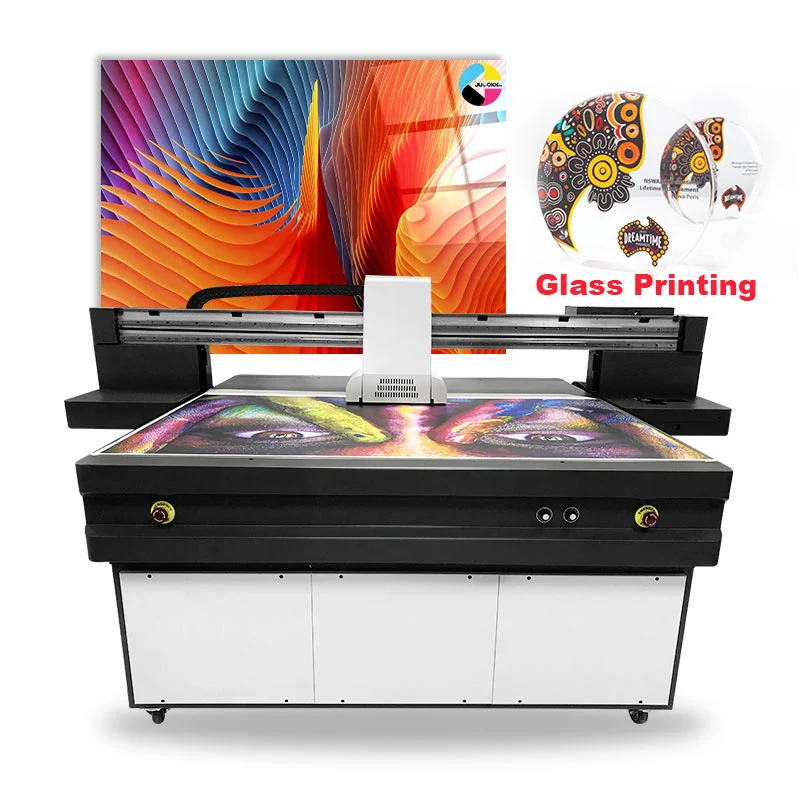

Jucolor Hot Digital Inkjet High resolution 1610 Large format UV printer
With the capability to print onto rigid/flexible substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use.
Print size 164*115cm/64.5*45'',print height 19cm/7.5'',meet more printing needs
-Support 3D embossed effect printing and varnish glossy effect printing
-Configure with I3200-U1/Ricoh G5i printhead,print White+CMYK+Varnish one pass with faster speed
-Equipped automatic medias height detecting system,measure the thickness of media, adjust the height automatically
Jucolor Hot Digital Inkjet High resolution 1610 Large format UV printer
With the capability to print onto rigid/flexible substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use.
Print size 164*115cm/64.5*45'',print height 19cm/7.5'',meet more printing needs
-Support 3D embossed effect printing and varnish glossy effect printing
-Configure with I3200-U1/Ricoh G5i printhead,print White+CMYK+Varnish one pass with faster speed
-Equipped automatic medias height detecting system,measure the thickness of media, adjust the height automatically
| Model | CJ-UV1610 Large A0 UV Printer |
| Print Head | 3 pcs EPSON DX10/DX7/i1600-U1/i3200-U1/Ricoh G5i print heads |
| Max Printing | 164*115 CM /64.5*45 Inches |
| Printing Height | 19 CM/7.48 Inches |
| Inks Color | CMYK/CMYK,LC,LM+White +Varnish |
| Printing Speed | 17 m2/h (720*720dpi) or 12 m2/h (720*1440dpi) or 8 m2/h (1440*1440dpi) |
| Print Resolution | 720dpi, 1440dpi, 2160dpi, 3200dpi |
| Printing Materials | Pen, Phone Case, Glass, Plastic, Board, Leather, Rubber, Lighter, Metal, Wood, Porcelain, PVC, ABS, Acrylic, Aluminum, Ceramic Tile, Marble, Granite, Paper etc. |
| Printing Software | Maintop/ SAI Flexiprint |
| Picture Mode | PSD/ TIFF/ BMP/ EPS/ JPG |
| Computer System | Windows 7/Window 8/Window 10 |
| Date Interface | USB3.0 High Speed Interface Transfer System |
| Power | 50-60Hz, 1000-1500W,110 V/ 220 V |
| Working Environment | Temperature 25-30ºC; Humidity 40%~60% |
| Machine Size | 260*170*140 CM |
| Package Size | 280*205*165 CM |
| Machine Weight | Net.650KG/Gross.780KG |
Require Not Get latest Quote And Free Samples Printing Test!!!!
1.One year warranty
You can discuss operation and maintenance with our technician online supportservice by Skype, MSN etc. Remote
control will be provided upon request.
2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge includesthe airfreight by
express, except for the print head and some consumable parts.
3. Convenient online consultation
The technician will keep online, No matter what kind of technical questionsthat you may have, you would get a
satisfactory answer from our professional technician easily.
4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc,
we can send our technician to your office, and to give you a free installation and training, till you use well
