Product Description

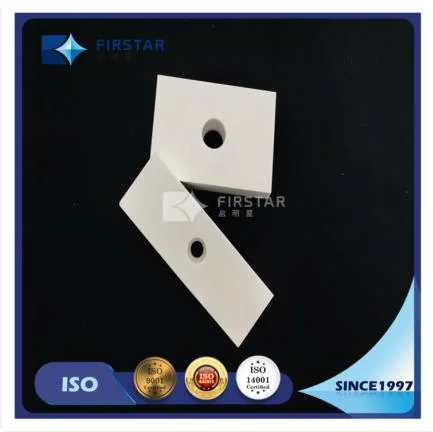

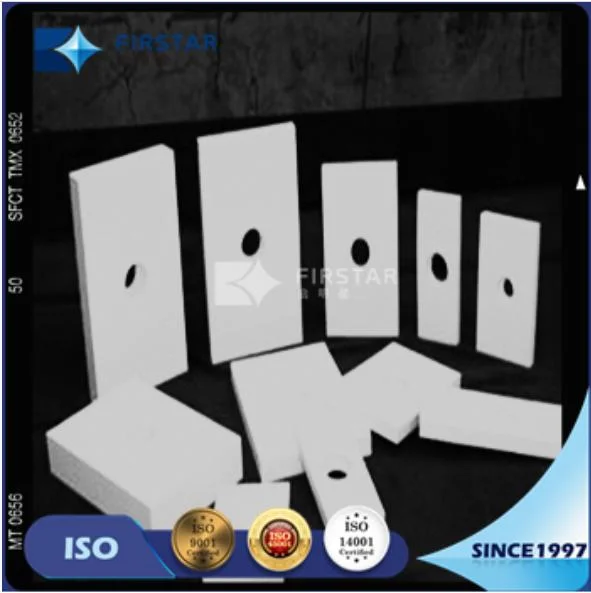

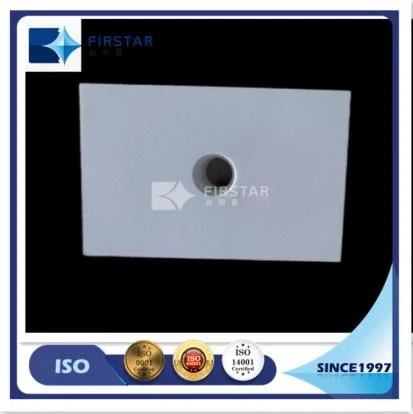

High alumina wear resistant tiles/weldable tiles /weld on tiles used in mining /port /cement etc.
1. Detailed description
Weldable Ceramic Tiles has charaters of abrasive & wear resistance,corrosion resistance,high temperature resistance,low weight,easy installation.which can effectively protect industry material handling machines against wear damage.especially applied in mining,port,cement,steel plant,power generation industry etc.
Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
l Alumina 92: most common wear product with great wear resistance
l Alumina 95: increased wear performance
l Alumina T95: premium alumina for best wear resistance
l Zirconium toughened alumina(ZTA): increased strength and impact resistance
2.Product features:
> High hardness
> Superior abrasion and impact resistance
> Corrosion and chemical resistance
> Light weight
> Easy installation by epoxy resin or bolt
> Improve your working environment-noise, vibration and safety
3. Product Specification:
- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.
- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.
- Hexagonal tile: S12.5xT3~20mm, S23.5xT6-25mm
- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)
- Ceramic Block: 40x40x40mm, 45x45x50mm,32x32x22mm, 38x38x38mm,etc.
- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.
5. Ceramic wear lining tiles for a variety of applications:
Processing equipment:
l Pharmaceutical clean rooms
l Food processing plants
l Grain handling
l Mineral processing
l Cement manufacturing
l Chemical processing
l Large Cyclones:
l Coal-fired power plants
l Steel Mills
l Asphalt Plants
l Petrochemical plants
l Pulp and paper mills
| Category | HC90 | HC92 | HC95 | HCT95 | HC99 | HC-ZTA | ZrO2 |
| Al2O3 | ≥90% | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
| ZrO2 | / | / | / | / | / | ≥21% | ≥95% |
| Density | >3.50g/ cm3 | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.83g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
| HV 20 | ≥900 | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1350 | ≥1100 |
| Rock Hardness HRA | ≥80 | ≥82 | ≥85 | ≥88 | ≥90 | ≥90 | ≥88 |
| Bending Strength MPa | ≥180 | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
| Compression strength MPa | ≥970 | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
| Fracture Toughness KIc MPam 1/2 | ≥3.5 | ≥3.7 | ≥3.8 | ≥4.0 | ≥4.2 | ≥4.5 | ≥7.0 |
| Wear Volume | ≤0.28 cm3 | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 | ≤0.10 cm3 | ≤0.05cm3 | ≤0.02cm3 |
Qimingxing offer quality wear and Ant- impact ceramics, in combination with our experienced and competent staff, ensure the increased efficiency and service life of all equipments and materials to which they are applied. - Established Ultrafine Energy Efficiency Technology Research Institute - Increase lifespan of wearable parts - New improved technology and products - Minimal downtime to minimize delays in production - Variety of wear combating options available as a one stop solution - Strong focus on product innovation supported by Chinese Academy of Sciences. - Customized application techniques to suite any wear problem
FAQ
Q: What is your experience in your products?
A: We have 22 years experience in this industry line. We are professional manufacturer in this area.
Q: What is your MOQ?
A: The MOQ is different as per different products, for example, 1 Ton for ceramic ball.
Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first.
Q: Can you provide free sample?
A: Yes, within 1kg.
Q: What is your production time?
A: We have large stock for standard products. Normally within 7-10days after receipt the deposit.
Q: What are your payment terms?
A: T/T, L/C, Western Union
