Basic Info.
Model NO.
Spanish Roof 1050
Color
Brick Red, Purplish Red, Grey, Blue, Green or Cust
Customized
Customized
Application
House, Warehouse, Farm, Plant, etc.
Thickness
2.0mm-3.0mm
Layers
2 -4layers
Fire Protection Rating
B1
Transport Package
Packaging According to The Shipping Standard
Specification
Width 1050mm
Trademark
GONGLI
Origin
Foshan
HS Code
39259000
Production Capacity
50000/Week
Product Description

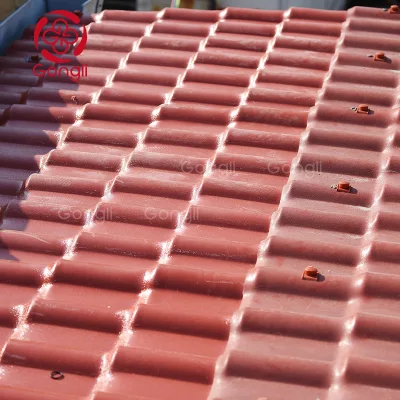

Pvc Plastic Synthetic Roofing plastic roof
PVC is the main raw material of plastic tiles. As a plastic tile manufacturer, we also have good relations and close cooperation with many construction projects. Based on the rich knowledge in the PVC field and the many needs of existing customers, the tiles we produce can better meet the needs of use and can replace traditional asbestos tiles, iron tiles, steel tiles, and wood. PVC tiles can be used for a longer time, are resistant to corrosion, and are not easy to leak. They are widely used in many countries in South America and Southeast Asia. We are also happy to bring high-quality products to more countries and regions!
Secondly, solution apply to
No matter you are Personal user,Builder or Trader, We not only provide high quality product , but also provide professional solutions on roofing sheet.
Thirdly, about our products
Main Product :

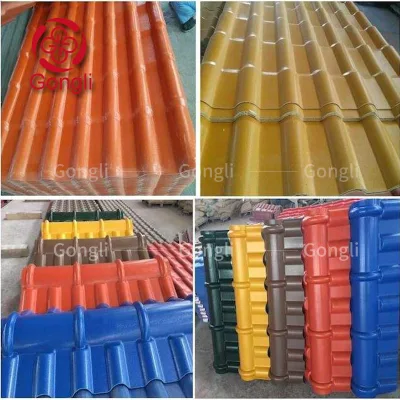

ASA synthetic resin roof tile ,ASA&PVC composite roofing sheet ,UPVC roof sheet,FRP transparent tile
| Type | ASA Synthetic Resin Roof Tile | |||
| Total width(mm) | 1050 | |||
| Practicality Width(mm) | 960 | |||
| Thickness(mm) | 2.5±0.1 | 3.0±0.1 | ||
| Length(mm) | Customized (must be accorded to the times of 219mm) | |||
| Weight(kg/m2) | 5.0±0.1 | 6.0±0.1 | ||
| Wave Distance(mm) | 160 | |||
| Wave Height(mm) | 30 | |||
| Pitch(mm) | 219 | |||
| Specifications | Sound and heat insulation,Colorfast and 25 Years Warranty Period | |||
| Fire Resistance,100% Waterproof | ||||
| Container Loading capacity | Thickness(mm) | SQ.M./20 FCL (22 tons) | SQ.M./40 FCL | |
| (26 tons) | ||||
| 2.5 | 4500 | 5300 | ||
| 3 | 3700 | 4400 | ||

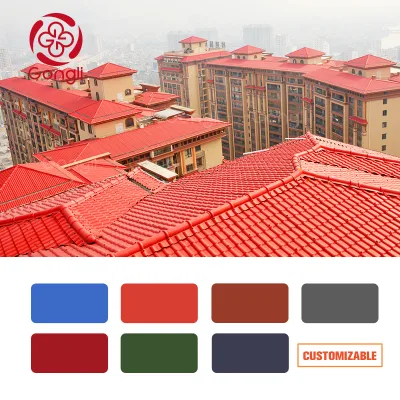

Villa,warehouse,factory,carport,farm market,green house .etc
Fourthly, our product deliver happy all over the world
Gongli upvc roof tile lasts long life span and color staying. Good fire resistance with excellent insulation and excellent waterproof performance.
It offers excellent performances not just covering , but safety and eco-friendly protection.
Application:
Widely used for roofing and wall of large-span portal steel structure, corrosive chemical plant, factory, warehouse, high temperature workshop etc.
Plastic PVC Roofing Materials are more and more popular in the world since it's excellent performance.
We would like to make great effort on small changes if it can make our product better.
Guangdong Gongli Building Materials is a leading manufacturer for the Spanish ASA roof sheet, UPVC roof sheet ,ASAPVC roof sheet, PC sheet, FRP sheet and wall panels in China, Established in 2009,.

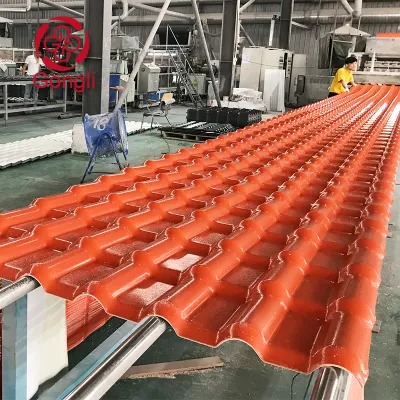

Our company is located in Foshan Guangdong .It covers an area of over 40,000 square meters. With more than 200 employees and 16 advanced production lines, 2 are under construction, we can produce 80,000 tons per year.
We are working on building high technology production lines which provide products with higher quality, reasonable price and better service in the future.
