Product Description
High Quality Building Foam Block EPS Making Machine Styrofoam Block 3D EPS Insulation Panel Making Machine PS foam panel machine High Quality Building Foam Block EPS Making Machine Polystyrene EPS Foam Block Making machine
EPS polystyrene foam compact foam block making machine horizontal construction EPS brick block molding machine manufacture

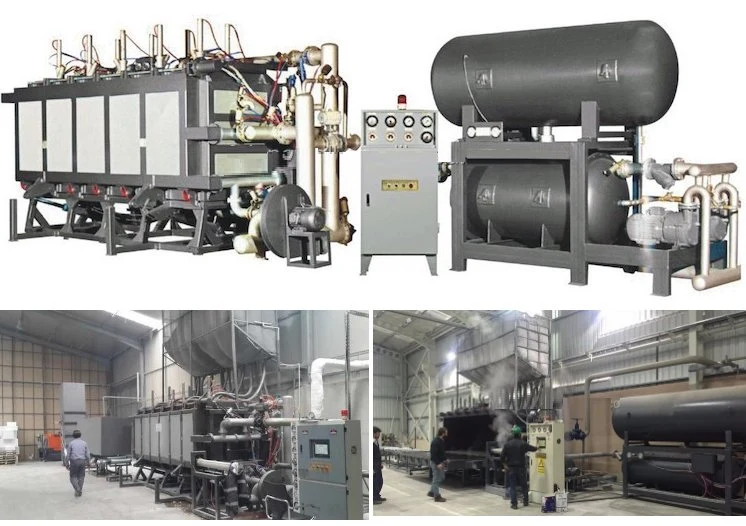

It makes eps foam beads to big foam block through steam heating and vacuum cooling. With PLC and touch screen to realize full automatic production for feeding, heating, vacuum cooling, mould opening, mould closing and ejecting the foam block.
Foam Eps Wall Retaining Wall Block machine Lightweight Wall Panel Making Machine Profitable Business
High Quality Building Foam Block EPS Making Machine Polystyrene EPS Foam Block Making machine
EPS polystyrene foam compact foam block making machine horizontal construction EPS brick block molding machine manufacture Foam Eps Wall Retaining Wall Block machine Lightweight Wall Panel Making Machine Profitable Business
EPS Wall Panel Making Machine for EPS Insulation Board External Wall EPS expanding board line
Foam Eps Wall Retaining Wall Block machine Lightweight Wall Panel Making Machine Profitable Business
PVC Expanding Board Production Line PVC foaming board making machine line
baby crawling mat making line PVC foaming plastic crawling mat production machines
1, PLC, touch screen control system, greatly improve the stability of the device, both self-monitoring function, simple and fast operation, can be based on different sets of memory storage, replacement mold, no need to re-temperature, pressure, time and other settings.
2, servo motor feed, accurate and no error, suitable for the production of large quantities of coil material, save the provincial materials.
3. The pressure forming part adopts a four-cylinder six-column automatic balance structure, thickens the worktable, and guarantees the compression molding accuracy ± 0.1 mm in each position.
4, pressure plate speed, flexible pressure, making the material better molding effect.
5, hydraulic system, supporting electrical appliances are imported famous products, power saving, small noise, simple operation, high efficiency.
The heating part of the oven is controlled by the inverter fan to drive the hot air cycle to heat up, and the heating effect is uniform and stable
7, the size of the company's equipment can be customized.
PVC Expanding Board Production Line PVC foaming board making machine line
PVC damperproof mat production line damperproof foam mat machine
baby crawling mat making line PVC foaming plastic crawling mat production machines
Column rubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. )plate vulcanizing and compression molding.
Column rubber vulcanizing press can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc..
Column rubber vulcanizing press can also be used to make bakelite products molding, and other thermalsetting plastic. The machine can be used to make foam products, foam resin,thin metal, construction material compression molding.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory with the export license, we have professional experience about many years.
2. Q: Can you do OEM?
A: Yes, OEM is available!
3. Q: How can I get some samples?
A: We are glad to offer you free samples. New clients are expected to pay for the delivery cost .
4. Q: What is your payment term?
A: Commonly 30% deposit by T/T, the balance payment before loading
5.Q: Where is your main market?
A: Our market are located in Eastern Asia,South Asia,Africa and so on.
PU PVC Automatic Synthetic Leather Production Line Leather Making machine
PVC antislip foaming mat production line yoga mat machine
Our Certificate
PVC antislip foaming mat production line yoga mat machine
EPS polystyrene foam compact foam block making machine horizontal construction EPS brick block molding machine manufacture
It makes eps foam beads to big foam block through steam heating and vacuum cooling. With PLC and touch screen to realize full automatic production for feeding, heating, vacuum cooling, mould opening, mould closing and ejecting the foam block.
Foam Eps Wall Retaining Wall Block machine Lightweight Wall Panel Making Machine Profitable Business
High Quality Building Foam Block EPS Making Machine Polystyrene EPS Foam Block Making machineEPS polystyrene foam compact foam block making machine horizontal construction EPS brick block molding machine manufacture Foam Eps Wall Retaining Wall Block machine Lightweight Wall Panel Making Machine Profitable Business
Technical Data | |||||
Item | JSD-2000V | JSD-3000V | JSD-4000V | JSD-6000V | |
Mold Cavity Size (mm) | 2040*1240*1030 | 3060*1240f*1030 | 4080*1240*1030 | 6100*1240*1030 | |
Block size(mm) | 2000*1200*1000 | 3000*1200*1000 | 4000*1200*1000 | 6000*1200*1000 | |
Steam | Entry | DN80 | DN80 | DN100 | DN150 |
Consumption | 25-45kg/cycle | 45-65kg/cycle | 60-85kg/cycle | 95-120kg/cycle | |
Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | |
Compressed Air | Entry | DN40 | DN40 | DN50 | DN50 |
Consumption | 1.5-2m3/cycle | 1.5-2.5m3/cycle | 1.8-2.5m3/cycle | 2-3m3/cycle | |
Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | |
Vacuum cooling water | Entry | DN40 | DN40 | DN40 | DN40 |
Consumption | 0.4m3/cycle | 0.6m3/cycle | 0.8m3/cycle | 1m3/cycle | |
Pressure | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | |
Drainage | Vacuum Drain Port | DN125 | DN125 | DN125 | DN125 |
Down Steam Drain | DN150 | DN150 | DN150 | DN150 | |
Blower Drain | DN150 | DN150 | DN150 | DN150 | |
Capacity@15kg/m3 | 4min/cycle | 5min/cycle | 6min/cycle | 8min/cycle | |
Connected Load/Power | 25kw | 25kw | 35kw | 35kw | |
Overall Dimension(mm) | 5700*4000*2800 | 7200*4500*3000 | 11000*4500*3000 | 12600*4000*3100 | |
Weight | 5000kg | 6500kg | 10000kg | 14000kg | |
Special size can also be made according to client's requirements | |||||
High Quality Building Foam Block EPS Making Machine Styrofoam Block 3D EPS Insulation Panel Making Machine PS foam panel machine
Foam Eps Wall Retaining Wall Block machine Lightweight Wall Panel Making Machine Profitable Business
Our Advantages
Foam Eps Wall Retaining Wall Block machine Lightweight Wall Panel Making Machine Profitable Business
Our Advantages

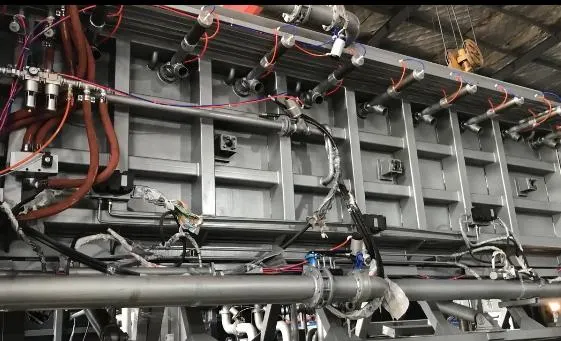

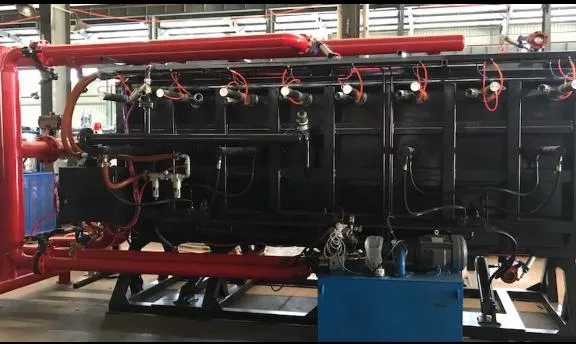

Machine Structure
1.The machine mold are welded by strong rectangle tube and steel plate make high strength to keep more safety of the machine.
2.All block mold frames are treated by heat-treatment to release the welding stress,so that the frames would no deformed.
3.After heating treatment,all mold frames are processed by sand blasting treatment to keep the rust away,then under coat and finishing coat are grearly improved anticorrosion performance and long life.
4.Adopts three Germany gauges and safety valve for multi-safety protection.The machine will be tested by water pressure and steam(many steps),ensure the machine more stable and safety.
Steam system
Three ball valves, comparing one big steam valve, saves 20% steam, with ISO standard butterfly valves, greatly improve stability and long life span.
Control system
Adopts PLC (Mitsubishi) and touch screen( Schnaider) for easy operation.
Equipped with material lever sensor to control beads filling. The block cooling is controlled by foam pressure sensor, the whole procedure for filling, heating, cooling are controlled automatically by PLC
Features
1. All block mold frames are treated by heat-treatment to ensure strength.
2. Taiwan original hydraulic station and all good quality parts.
3. It can make good blocks no matter low or high density with vacuum system.
4. Inside mold plates are 5mm thickness aluminum sheet coated with Teflonn, we will charge extra cost if you need stainless steel sheet.
5. Foam pressure sensor is optional.
2.All block mold frames are treated by heat-treatment to release the welding stress,so that the frames would no deformed.
3.After heating treatment,all mold frames are processed by sand blasting treatment to keep the rust away,then under coat and finishing coat are grearly improved anticorrosion performance and long life.
4.Adopts three Germany gauges and safety valve for multi-safety protection.The machine will be tested by water pressure and steam(many steps),ensure the machine more stable and safety.
Steam system
Three ball valves, comparing one big steam valve, saves 20% steam, with ISO standard butterfly valves, greatly improve stability and long life span.
Control system
Adopts PLC (Mitsubishi) and touch screen( Schnaider) for easy operation.
Equipped with material lever sensor to control beads filling. The block cooling is controlled by foam pressure sensor, the whole procedure for filling, heating, cooling are controlled automatically by PLC
Features
1. All block mold frames are treated by heat-treatment to ensure strength.
2. Taiwan original hydraulic station and all good quality parts.
3. It can make good blocks no matter low or high density with vacuum system.
4. Inside mold plates are 5mm thickness aluminum sheet coated with Teflonn, we will charge extra cost if you need stainless steel sheet.
5. Foam pressure sensor is optional.
