Economical Effective Foldable Stacked Modular Office Container House

Economical Effective Foldable Stacked Modular Office Container House

A containerized house is a mobile, reusable building product. It adopts modular design and factory production, and the cabinet is the basic unit, which can be used alone. It can also form a spacious use space by different combinations of horizontal and vertical directions, and the vertical direction can be laminated. The container unit structure is a standard component welded by special steel. The container and the container are connected by bolts, the structure is simple, and the installation is convenient and quick.

(1)Several containers combine together, flexible lay out.
Combine side by side to make a more big space.
(2)Quick install, short construct period.
4 workers can finish one single container half a day.
Can be installed before the shipment, the container can be used after connection with electricity and pipe at destination.
(3)Facility all in readiness, live in directly.
Bathroom, kitchen, laundry room, entertainment room for many choice.
Lighting facilities, door, window, furniture.
(4)Structure safe and stable, long life time.
Anti-seismic(Grade 8), wind resistance(Grade 11)
Can be used for more than 15 years.
(5)Easy to transport, save the freight.
Using scattered packing or transport installed directly.
Save long distance freight cost.
(6)Accessories design, simple and good performance.
With different type roof, corridor, rain shed, stair.


1. Surface: Layout
2. Colour: White, red, grey, blue, orange, wooden grain or other colour.
3. Electrical lines and water pipes.

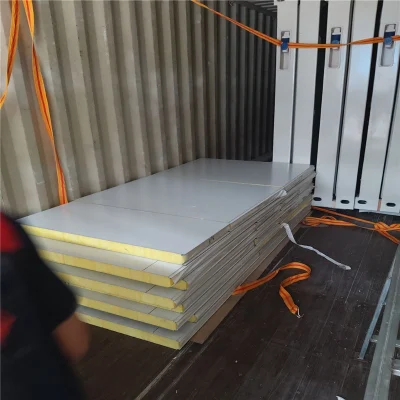

4. specification of sandwich panel.
5. Stair section, second floor corridor section and canopy.
6. We can provide solutions based on your design drawings.

Product Parameters

Structure	Framework profiles	The thickness of galvanized frame beam on the ground is 3.5mm;Roof galvanized frame beam thickness 3.0mm,The thickness of galvanized column is 3.0mm
	Structural connection	M12x40 high strength bolts
	Surface treatment	White spraying (color can be customized)
Wall	Glass wool composite board	Double-sided 0.5 after double-sided white, 75 thick,64kg/m
Roof	The waterproof layer	Roof tile, caigang veneer thickness 0.5 mm, 360bite
	Thermal insulation layer	Glass filament rolled felt, 100mm thick, bulk density 14kg/m
	Moistureproof layer	PE resin film
	Adornment layer	Strip ceiling plate, 0.5mm, gray color
Ground	The bottom panel	Galvanized bottom plate,0.3mm thick
	Heat preservation material	Glass filament rolled felt,100mm thick, bulk density 14kg/m
	Moistureproof layer	PE resin film
	Structure of plate	Cement fiber board,18mm thick
	Ground processing	PVC environment-friendly plastic floor with a thickness of 20mm and blue color (optional)
Door	Door	Steel door set, including door lock
Window	Outside the window	Push window of model steel, take window of guard against theft, take screen window
Decorate	Interior Angle	Color steel pressure Angle parts, thickness of 0.5mm
Electric	The lamp	LED dust lampx2sets,40w/set
	The socket	10A five-hole socketx3,16A air conditioner socketx1, reserved weak current black box1
	Switch	Single room switch1
	Distribution box	Dark assembly electric box1
	Industrial plug	220V,50 or 3P32A times1
	Wiring	Household line: 3x6 square meters, air conditioner socket: 3x4 square meters Five-hole socket: 3x2.5 square, lighting:3x1.5 square
