Basic Info.
Model NO.
2000
Size
600*600mm
Function
Thermal Insulation, Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static
Surface Treatment
Epoxy Paint
Color
Grey
Metal Type
Steel
Certification
CE, ISO, ASTM
Usage
Electrical Factory, Computer Room, Bank, Offices
Advantage
Long Life of Usage
Customized
Customized
Ffh
50mm~2000mm
Concentrated Load
2, 990n - 11, 093n
Top Finish
HPL PVC Laminate
Package
Pallet
Transport Package
Wooden Pallets
Specification
600x600x35mm
Trademark
MAJET
Origin
China
HS Code
73089000
Packaging & Delivery
Package Size
62.00cm * 62.00cm * 20.00cm
Package Gross Weight
15.000kg
Product Description

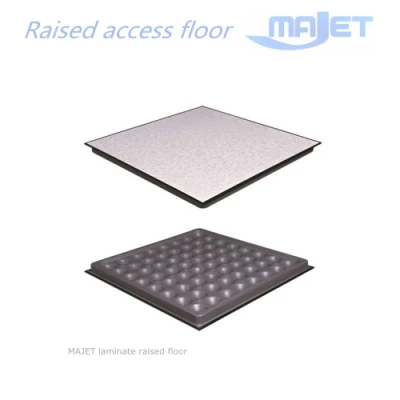

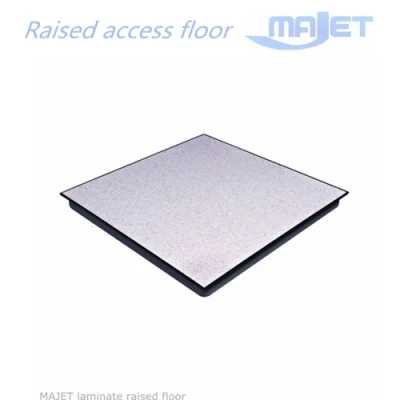

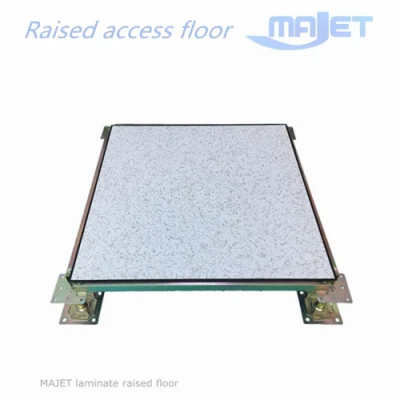

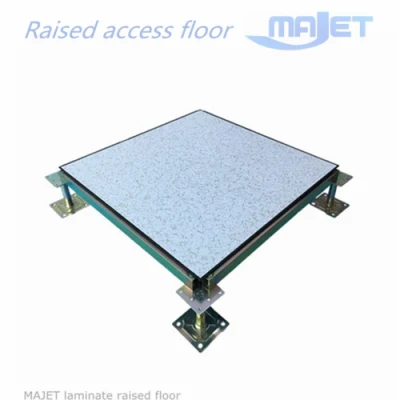

Steel Cementitious Panel (Anti-Static Laminate / PVC etc. on Top) Raised Floor
600x600. 610x610Feature:
- Used for computer room, data center and communication center.
- Excellent rolling load & ultimate load performance.
- Light weight cement makes panels solid and quite.
- Black / grey epoxy paint finish for long time protection.
- Class A flame spread and smoke development rating.
- Convenient installation supplies an excellent solution for office integrity, wiring and data cable service.
Anti static steel raised floor are fabricated with steel sheet (SPCC) welded to a formed steel bottom pan (ST14), filled internally with a light weight cement material which is totally encased with in the steel welded shell. The steel shell is protected from corrosion by applying epoxy paint.
top covering have lots choices can be available .

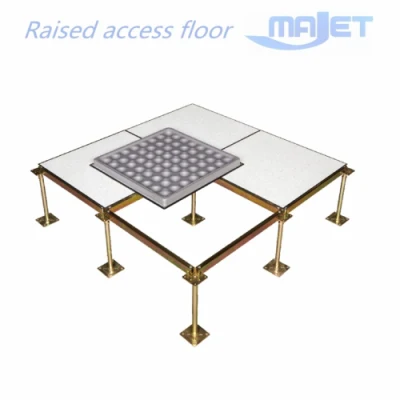

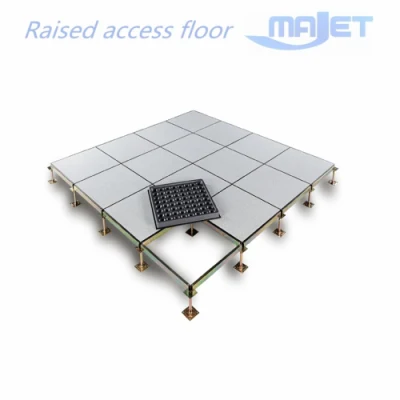

supporting structure is pedestals and stringers .
Advantages
All-steel structure, good load heavy
Fireproof
Waterproof
Anti-static
wear-resisant
Easy to clean and maintain
Widely used in data center, office buildings
| Concentrated | Impact load | Ultimate load | Uniform load | Rolling load | ||
| N | N | N | N/m2 | 10 times | 10000times | |
| SC668 | ≥2990 | 670 | ≥8890 | ≥12500 | 2215 | 1548 |
| SC800 | ≥3590 | 670 | ≥10799 | ≥19796 | 2959 | 2215 |
| SC1000 | ≥4498 | 670 | ≥13494 | ≥23294 | 3596 | 2959 |
| SC1250 | ≥5595 | 670 | ≥16797 | ≥33084 | 4498 | 3596 |
| SC1500 | ≥6693 | 670 | ≥20090 | ≥42581 | 5595 | 4498 |
| SC2000 | ≥8898 | 670 | ≥26685 | ≥49784 | 6693 | 5595 |
| SC2500 | ≥11093 | 670 | ≥33290 | ≥58280 | 8898 | 6693 |
Q1.What is your MOQ?
A: 100pieces each type
Q2.What is the loading quantity in one 20GP?
A:1100-1500pieces,depending on the raised floor type.
Q3.When is your delivery time?
A: 30days after receiving the prepayment.
Q4.What is your package?
A:packed in wooden pallet,covered with plastic paper.
Q5.What is your payment term?
A:T/T,L/C,Western Union.
