Product Description
92% and 95% Al2O3 Corner Ceramic Tiles for Steel Fabrication Made in China with Competitive Prices
1. Detailed description:
alumina ceramic liners and rubber ceramic composited plates
The alumina ceramic liner is a high-performance abrasion and impact resistant lining for applications in iron ore industry, coal mining, aggregate industry, power industry, cement industry, agricultrual industry and chemical industry.
They are used in heavy industry for years as a cost-effective, wear-resistant solution and these light weight materials offer high durability, strength, and excellent abrasion and corrosion resistance.
The main alumina ceramic liners our factory produce are as following:
- Alumina 92: most common wear product with great wear resistance
- Alumina 95: increased wear performance
- Alumina 96: premium alumina for best wear resistance
- Zirconium toughened alumina(ZTA TILES): increased strength and impact resistance
2.Product features:
> High hardness
> Superior abrasion and impact resistance
> Corrosion and chemical resistance
> Light weight
> Easy installation by epoxy resin or bolt
> Improve your working environment-noise, vibration and safety
3. Product Specification:
- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.
- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.
- Hexagonal tile: S11.5xT3~20mm, S12.5xT3~20mm, S23.5xT6-25mm
- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)
- alumina ceramic mosaic mat/sheet, hextile mat/sheet: 150x150x3mm to 15mm , 300x300x3 to 15mm, 500x500x3 to 10mm
- Ceramic Block: 32x32x22mm, 38x38x38mm, 40x40x40mm, 45x45x50mm, 47.5x47.5x15 to 40mm, etc.
- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.
- rectangular ceramic tile: 150x100x6 to 50mm, 100x50x6 to 50mm, 150x50x6 to 50mm
- weldable alumina ceramic tile: 150x100x10 to 50mm, 100x50x10 to 50mm, 150x50x10 to 50mm

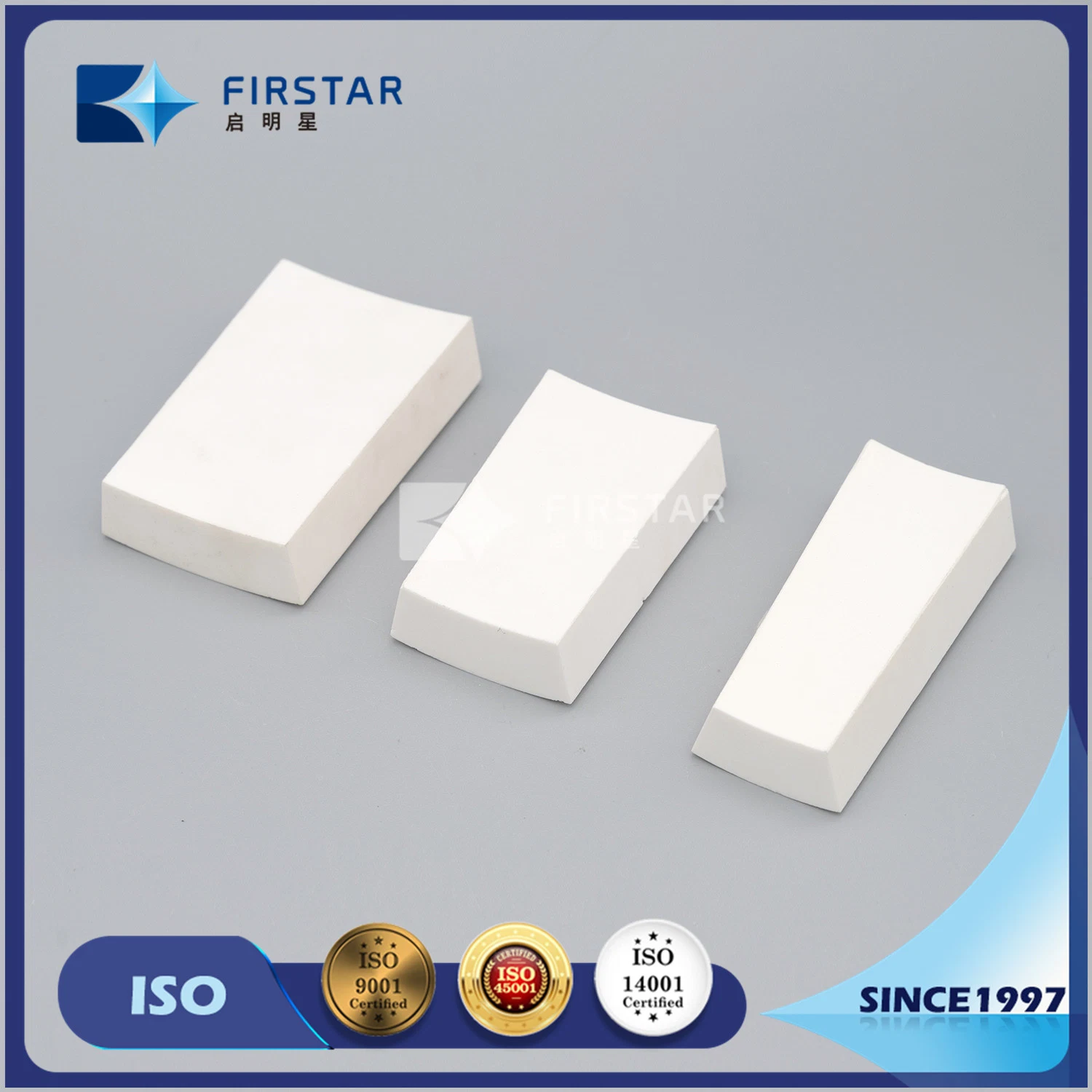

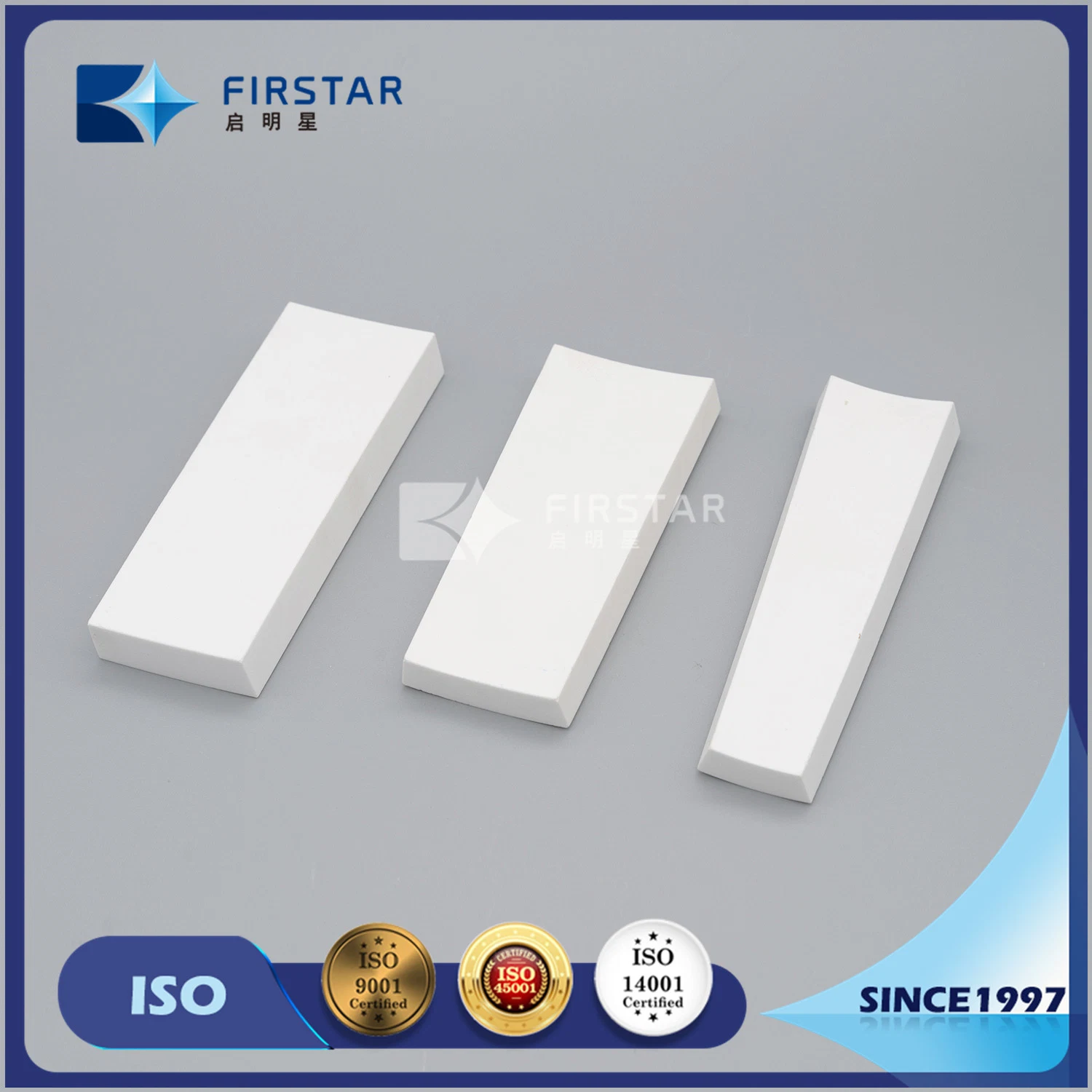

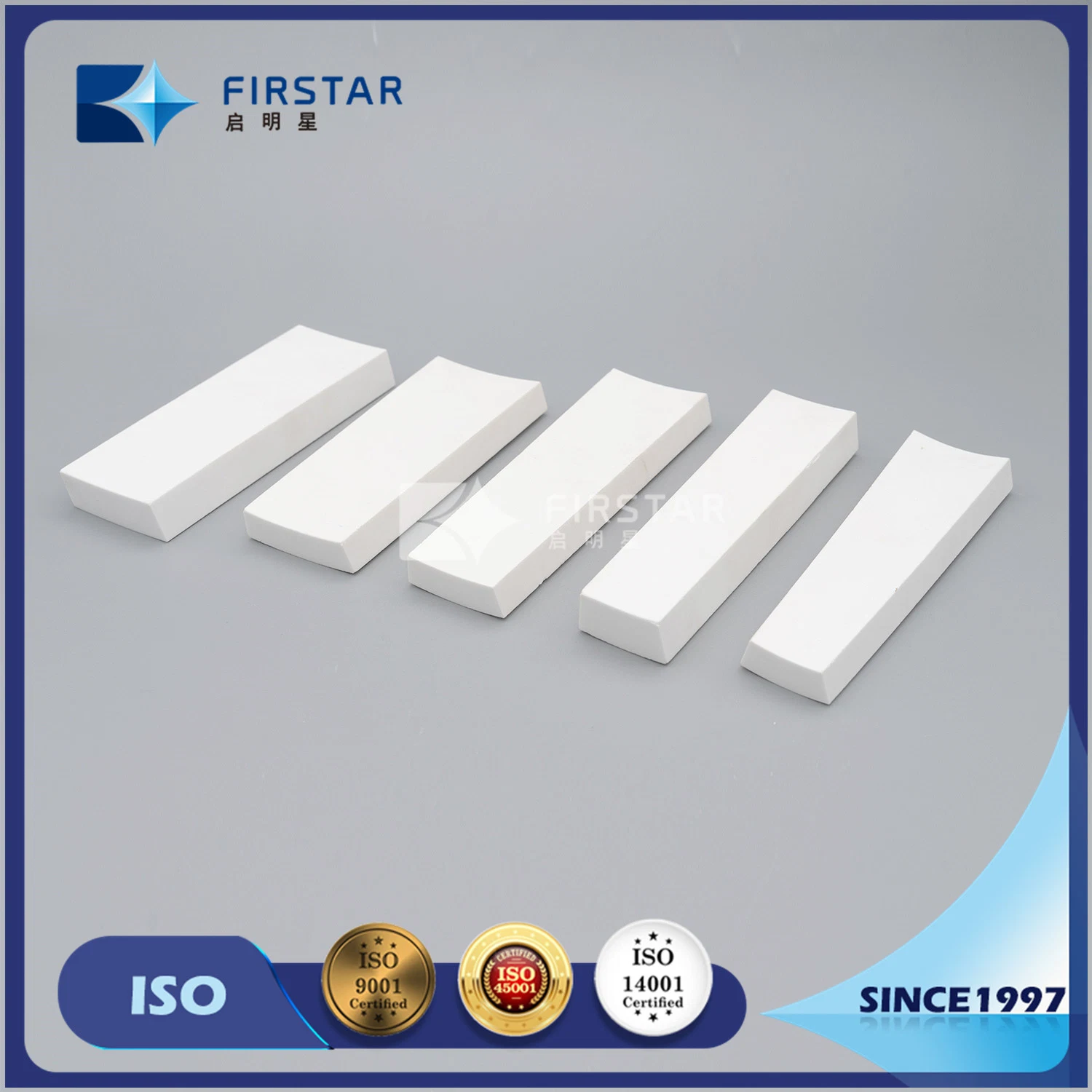

- Taperzoidal alumina ceramic tile (pipe tile)150x60/57x10 to 25mm, 150x5047x10 to 25mm, 150x40/37x10 to 25mm, 150x30/27x10 to 25mm
- Rubber ceramic composite plates: 300x300x37mm, 300x300x63mm, 250x500x35mm, 500x500x5 to 65mm
5. Ceramic wear lining tiles for a variety of applications:
Processing equipment:
Pharmaceutical clean rooms
Food processing plants
Grain handling
Mineral processing
Cement manufacturing
Chemical processing
Large Cyclones:
Coal-fired power plants
Steel Mills
Asphalt Plants
Petrochemical plants
Pulp and paper mills
Physical property of alumina ceramic and ZTA tile:
Factory gate:
Production Line and Workshop:
Lab:
Warehouse:
Exhibitions:
FAQ
Q: What is your experience in your products?
A: We have 22 years experience in this industry line. We are a professional manufacturer in this area.
Q: What is your MOQ?
A: 1kgs
Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first.
Q: Can you provide free sample?
A: Yes, within 1kg.
Q: What is your production time?
A: We have large stock for standard products and the delivery time is within 7-10days.
Q: What are your payment terms?
A: T/T, L/C, Western Union
If any inquiry, pls freely contact me, Betty Gao
1. Detailed description:
alumina ceramic liners and rubber ceramic composited plates
The alumina ceramic liner is a high-performance abrasion and impact resistant lining for applications in iron ore industry, coal mining, aggregate industry, power industry, cement industry, agricultrual industry and chemical industry.
They are used in heavy industry for years as a cost-effective, wear-resistant solution and these light weight materials offer high durability, strength, and excellent abrasion and corrosion resistance.
The main alumina ceramic liners our factory produce are as following:
- Alumina 92: most common wear product with great wear resistance
- Alumina 95: increased wear performance
- Alumina 96: premium alumina for best wear resistance
- Zirconium toughened alumina(ZTA TILES): increased strength and impact resistance
2.Product features:
> High hardness
> Superior abrasion and impact resistance
> Corrosion and chemical resistance
> Light weight
> Easy installation by epoxy resin or bolt
> Improve your working environment-noise, vibration and safety
3. Product Specification:
- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.
- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.
- Hexagonal tile: S11.5xT3~20mm, S12.5xT3~20mm, S23.5xT6-25mm
- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)
- alumina ceramic mosaic mat/sheet, hextile mat/sheet: 150x150x3mm to 15mm , 300x300x3 to 15mm, 500x500x3 to 10mm
- Ceramic Block: 32x32x22mm, 38x38x38mm, 40x40x40mm, 45x45x50mm, 47.5x47.5x15 to 40mm, etc.
- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.
- rectangular ceramic tile: 150x100x6 to 50mm, 100x50x6 to 50mm, 150x50x6 to 50mm
- weldable alumina ceramic tile: 150x100x10 to 50mm, 100x50x10 to 50mm, 150x50x10 to 50mm
- Taperzoidal alumina ceramic tile (pipe tile)150x60/57x10 to 25mm, 150x5047x10 to 25mm, 150x40/37x10 to 25mm, 150x30/27x10 to 25mm
- Rubber ceramic composite plates: 300x300x37mm, 300x300x63mm, 250x500x35mm, 500x500x5 to 65mm
5. Ceramic wear lining tiles for a variety of applications:
Processing equipment:
Pharmaceutical clean rooms
Food processing plants
Grain handling
Mineral processing
Cement manufacturing
Chemical processing
Large Cyclones:
Coal-fired power plants
Steel Mills
Asphalt Plants
Petrochemical plants
Pulp and paper mills
Physical property of alumina ceramic and ZTA tile:
| Category | HC90 | HC92 | HC95 | HCT95 | HC99 | HC-ZTA | ZrO2 |
| Al2O3 | ≥90% | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
| ZrO2 | / | / | / | / | / | ≥21% | ≥95% |
| Density | >3.50g/ cm3 | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.83g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
| HV 20 | ≥900 | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1350 | ≥1100 |
| Rock Hardness HRA | ≥80 | ≥82 | ≥85 | ≥88 | ≥90 | ≥90 | ≥88 |
| Bending Strength MPa | ≥180 | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
| Compression strength MPa | ≥970 | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
| Fracture Toughness KIc MPam 1/2 | ≥3.5 | ≥3.7 | ≥3.8 | ≥4.0 | ≥4.2 | ≥4.5 | ≥7.0 |
| Wear Volume | ≤0.28 cm3 | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 | ≤0.10 cm3 | ≤0.05cm3 | ≤0.02cm3 |
Factory gate:
Production Line and Workshop:
Lab:
Warehouse:
Exhibitions:
FAQ
Q: What is your experience in your products?
A: We have 22 years experience in this industry line. We are a professional manufacturer in this area.
Q: What is your MOQ?
A: 1kgs
Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first.
Q: Can you provide free sample?
A: Yes, within 1kg.
Q: What is your production time?
A: We have large stock for standard products and the delivery time is within 7-10days.
Q: What are your payment terms?
A: T/T, L/C, Western Union
If any inquiry, pls freely contact me, Betty Gao
