Product Description

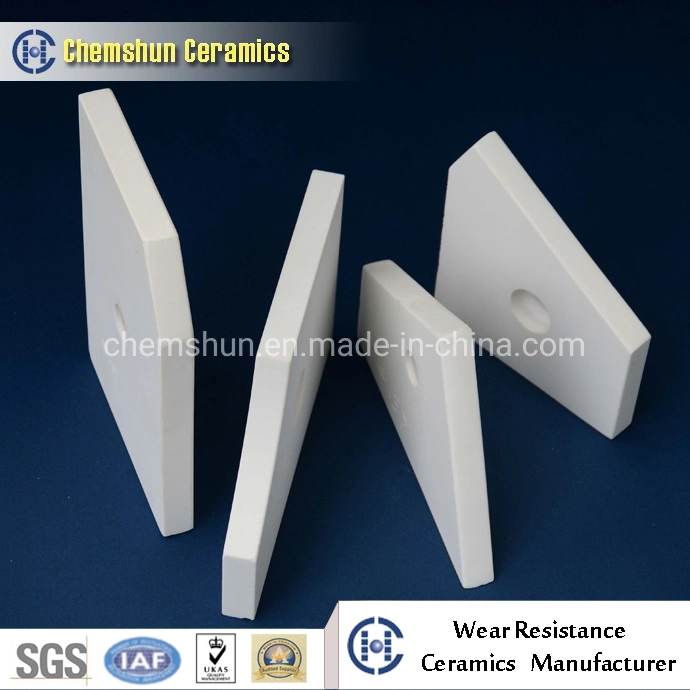

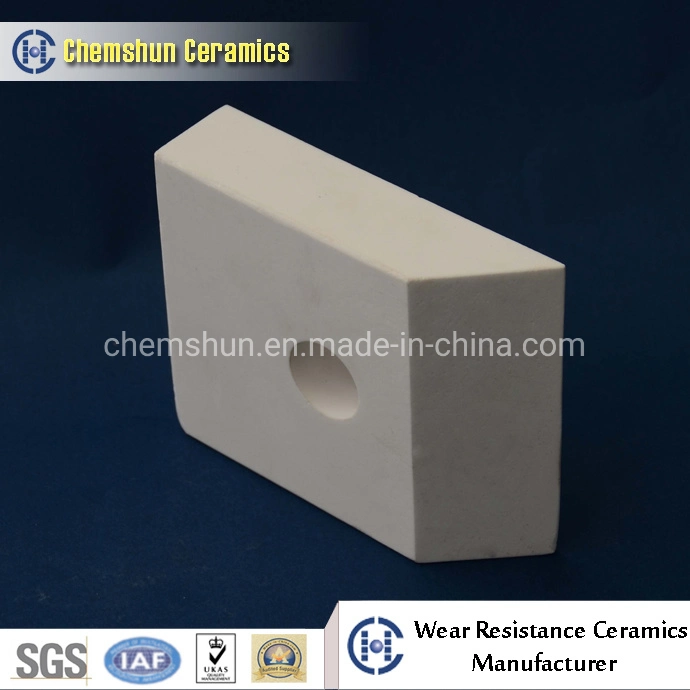

Alumina Ceramic Tile Engineering Ceramic Weldable Tile with Hole
>> Alumina ceramic plain tile
>> Ceramic weldable tile liner
>> Ceramic curved pipe tile liner
>> Ceramic arc pipe tile linings
>> Ceramic tile with inter-locking
>> Alumina brick linings
>> Ceramic square /rectangle /hexagonal tile
Technical Date:
Sizes:
Chemical Composition:
Physical properties:
Advantages:
>> Outstanding wear resistance and impact resistance, approx 10 times stronger than common pipes under same conditions.
>> Big size ceramic tubes with complicated shape molding in one have extremely ensity
>> Little gap, good integrity, smooth surface ensure the free flow of material without blocking.
>> Easy installation
>> Long service life and low maintenance cost: super wear-resistance reduce the maintenance frequency and the cost.
Chemshun Advantages:
>> Tailor made engineered ceramics available
>> Accept OEM & ODM wear engineered ceramics and project
>> Provide professional industrial wear consult and solution
>> Accept small and big quantity order
>> Delivery fast
>> Alumina ceramic plain tile
>> Ceramic weldable tile liner
>> Ceramic curved pipe tile liner
>> Ceramic arc pipe tile linings
>> Ceramic tile with inter-locking
>> Alumina brick linings
>> Ceramic square /rectangle /hexagonal tile
Technical Date:
Sizes:
| Alumina ceramic tile popular Sizes (Length*width*thickness ) |
| 100*100*20mm (4"x4"x3/4") |
| 150*100*13mm (6"x4"x1/2") |
| 150*100*15mm (6"x4"x5/8") |
| 150*100*20mm (6"x4"x3/4") |
| 150*100*25mm (6"x4"x1") |
| 150*100*50mm (6"x4"x2") |
| 150*50*25mm (6"x4"x1") |
| 100*75*25mm (4"x3"x1") |
| 120*80*20mm |
| 228*114*25mm |
| 114*114*25mm |

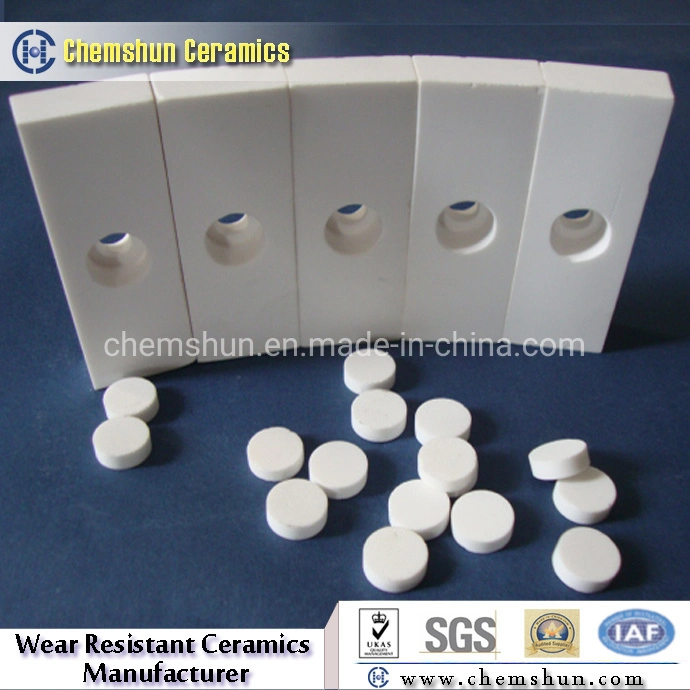

| More sizes and customized size acceptable. Chemshun ceramics afford the relative weldable steel cone and ceramic rod. |
| Al2O3 | SiO2 | CaO | MgO | Na2O |
| 92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
| Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (20ºC, Mpa) | 280 |
| Compressive strength (20ºC, Mpa) | 850 |
| Rockwell hardness (HRA) | 80 |
| Vickers hardness (hv) | 1050 |
| Moh's hardness (scale) | ≥9 |
| Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
| Crystal Size (μm) | 1.3~3.0 |
Advantages:
>> Outstanding wear resistance and impact resistance, approx 10 times stronger than common pipes under same conditions.
>> Big size ceramic tubes with complicated shape molding in one have extremely ensity
>> Little gap, good integrity, smooth surface ensure the free flow of material without blocking.
>> Easy installation
>> Long service life and low maintenance cost: super wear-resistance reduce the maintenance frequency and the cost.
Chemshun Advantages:
>> Tailor made engineered ceramics available
>> Accept OEM & ODM wear engineered ceramics and project
>> Provide professional industrial wear consult and solution
>> Accept small and big quantity order
>> Delivery fast
