Basic Info.
Model NO.
SGCC/SPCC/SPCD/DX51D/DX52D/DX53D/S220GD/S250GD/S35
Technique
Cold Rolled
Application
Mold & Dies, Ship Plate, Boiler Plate, Container Plate, Flange Plate
Special Use
Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
Stock
Stock
Thickness
0.5-100mm or as Required
Thickness Tolerance
0.01mm
Length
1000-11800mm
Width
600mm-1150mm
Width After Corrugated
600mm-1000mm
Surface
Galvanized/Color Coated/Galvalume
Paint
5um~25um
Usage
Roofing/Exterior and Interior Wall
MOQ
1 Ton
Zinc Coating
30-275G/M2
Tensile Strength
380-700MPa
Capacity
5000ton/Day
Transport Package
Standard Export Package
Specification
customized
Trademark
longhai
Origin
China
HS Code
7210410000
Production Capacity
250, 000 Tons/Year

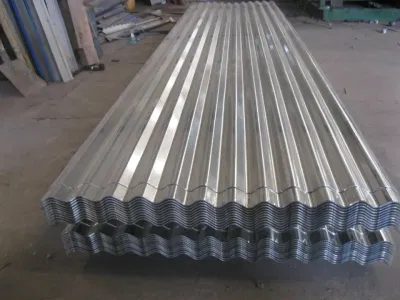

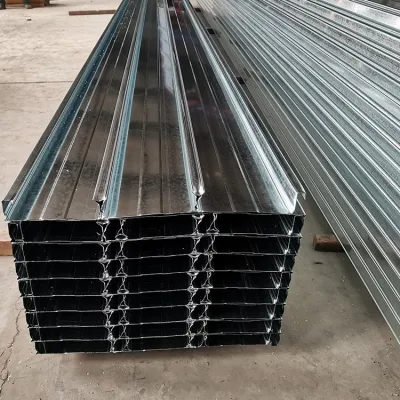

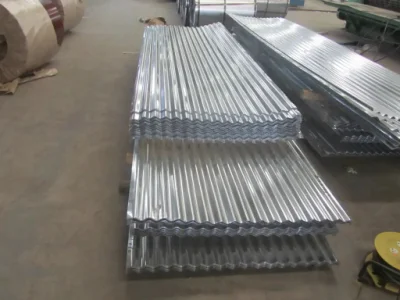

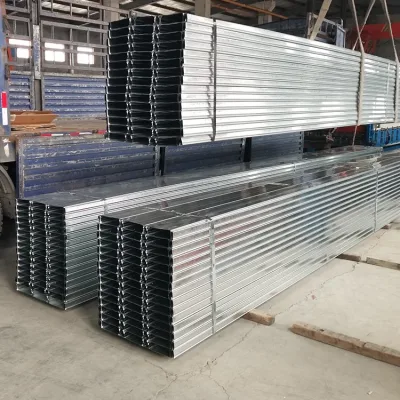

Product Description
| Steel Grade | DX51D,SGCC,SPCC,S350,G550.etc |
| Thickness | 0.12mm--1.2mm |
| Effective Width (after corrugation) | 665mm, 750mm, 815mm, 840mm, 900mm ,925mm,1000mm,1020mm, 1025mm, 1050mm, 1200mmetc |
| Base metal | Galvanized/galvalume/ Aluzinc /prepainted (PPGI,PPGL) Steel sheet |
| Zinc coating | Z30-275gsm,AZ30-180gsm |
| Coating type | PE,SMP,PVDP, HDP |
| Painting Type | 2/2 2/1 |
| Length | Generally 1830, 2440, 3000, 3660mm, any length can be customized according to the transportation,generally less than 11.8m |
| Delivery | Within 7~25 working days after receiving deposit |

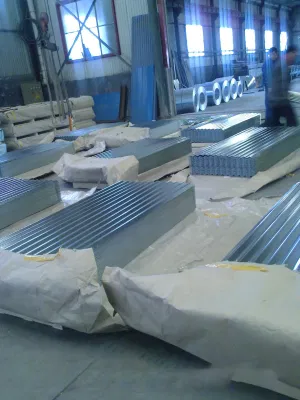

| Packing | Export standard seaworthy packing. Waterproof paper+steel sheet+bundle with steel strips(3-4pcs) |
| Price | FOB&CFR&CIF price |
| Payment terms | TT or L/C |
| Steel grade | Chemical composition% | <Residual Element> | Tensile strength(MPa) | Yield strength(MPa) | |||||
| C%< | Si%< | Mn%< | P%< | S%< | Alt< | ||||
| SGCC, DX51D+Z | 0.07 | 0.03 | 0.5 | 0.025 | 0.025 | 0.02 | Cu<0.10Ni<0.08Cr<0.10As<0.05Sn<0.05 | 270-500 | 140-280 |
| DX52D+Z | 0.06 | 0.03 | 0.45 | 0.025 | 0.025 | 0.02 | 270-420 | 140-300 | |
| DX53D+Z | 0.03 | 0.03 | 0.4 | 0.02 | 0.02 | 0.02 | 270-380 | 140-260 | |
| S220GD+Z | 0.17 | 0.3 | 1 | 0.035 | 0.3 | 0.02 | 300-440 | >220 | |
| S250GD+Z | 0.17 | 0.3 | 1 | 0.035 | 0.3 | 0.02 | 330-470 | >250 | |
| S350GD+Z | 0.2 | 0.55 | 1.6 | 0.035 | 0.3 | 0.02 | 420-560 | >350 | |
| Grade | Yield Strength MPa | tensile strength MPa not less than | Elongation after breaking b(l=80mm, b=20mm) % not less than Nominal thickness mm | r value is not less than | n value is not less than | |||
| 0.70- | 1.0- | ≥1.6 | ||||||
| DC01(St12) | 130~260 | 270 | 28 | 30 | 32 | 34 | - | |
| DC03(St13) | 120~240 | 270 | 32 | 34 | 35 | 36 | - | - |
| DC04(St14, St15) | 120~210 | 270 | 36 | 38 | 39 | 40 | 1.5 | 0.18 |
| DC05(BSC2) | 110~190 | 260 | 38 | 39 | 40 | 41 | 1.8 | 0.2 |
| DC06(St16,St14-T, BSC3) | 100~180 | 250 | 39 | 40 | 41 | 42 | 2 | 0.22 |
| Grade | Yield Strength MPa no greater than | Tensile Strength MPa not less than | Elongation after breaking b(Lo=50mm, b=25mm) % not less than Nominal thickness mm | |||||
| 0.25- | 0.40- | 0.60- | 1.0~ | ≥1.6 | ||||
| SPCC | - | 270 | 30 | 32 | 34 | 36 | 37 | 38 |
| SPCD | - | 270 | 32 | 34 | 36 | 38 | 39 | 40 |
| SPCE, SPCEN | 210 | 270 | 34 | 36 | 38 | 40 | 41 | 42 |
| Grade | Chemical Component % | |||||||
| C | Mn | P | s | Alta | Tib | |||
| DC01(St12) | C0.10 | ≤0.50 | ≤0.035 | ≤0.025 | ≥0.020 | - | ||
| DC03(St13) | ≤0.08 | ≤0.45 | ≤0.030 | ≤0.025 | ≥0.020 | - | ||
| DC04(St14,St 15) | ≤0.08 | ≤0.40 | ≤0.025 | ≤0.020 | ≥0.020 | - | ||
| DC05(BSC2) | ≤0.008 | ≤0.30 | ≤0.020 | ≤0.020 | ≥0.015 | ≤0.20 | ||
| DC06(St16,SH4-T,BSC3) | ≤0.006 | ≤0.30 | ≤0.020 | ≤0.020 | ≥0.015 | ≤0.20 | ||
| SPCC | ≤0.12 | ≤0.50 | ≤0035 | ≤0.025 | ≥0,020 | |||
| SPCD | ≤0.10 | ≤0.45 | ≤0.030 | ≤0.025 | ≥0.020 | |||
| SPCE. SPCEN | ≤008 | U0.40 | W0.025 | ≤0.020 | ≥0,020 | |||
| Alt greater than or equal to 0.015 when C is less than or equal to 0.01 for all grades |
| Supply some tile types for your reference | |||
| Tile Types | Effective Width(mm) | Feeding Width(mm) | Thickness(mm) |
| YX10-128-900 | 900 | 1000 | 0.15-0.8 |
| YX14-65-850 | 850 | 1000 | 0.15-0.8 |
| YX15-225-900 | 900 | 1000 | 0.15-0.8 |
| YX18-76-665 | 665 | 750-762 | 0.15-0.8 |
| YX18-76-800 | 800 | 900-914 | 0.15-0.8 |
| YX18-76-900 | 900 | 1000 | 0.15-0.8 |
| YX25-205-820 | 820 | 1000 | 0.15-0.8 |
| YX25-205-1025 | 1025 | 1200 | 0.15-0.8 |
| YX25-210-840 | 840 | 1200 | 0.15-0.8 |
| YX25-210-1050 | 1050 | 1200 | 0.15-0.8 |
| YX28-207-828 | 828 | 1000 | 0.15-0.8 |
| YX28-207-1035 | 1035 | 1200 | 0.15-0.8 |
| YX25-196-980 | 980 | 1000 | 0.15-0.8 |
| YX25-2196-782 | 782 | 1000 | 0.15-0.8 |
| YX35-200-1000 | 1000 | 1200 | 0.15-0.8 |
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surfacetreatment requirements, as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Tianjin and Qingdao ports.
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:What about product pricing information?
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
Q9. What is your delivery time?
Within 7 working days after receiving your balance payment.
