Product Description

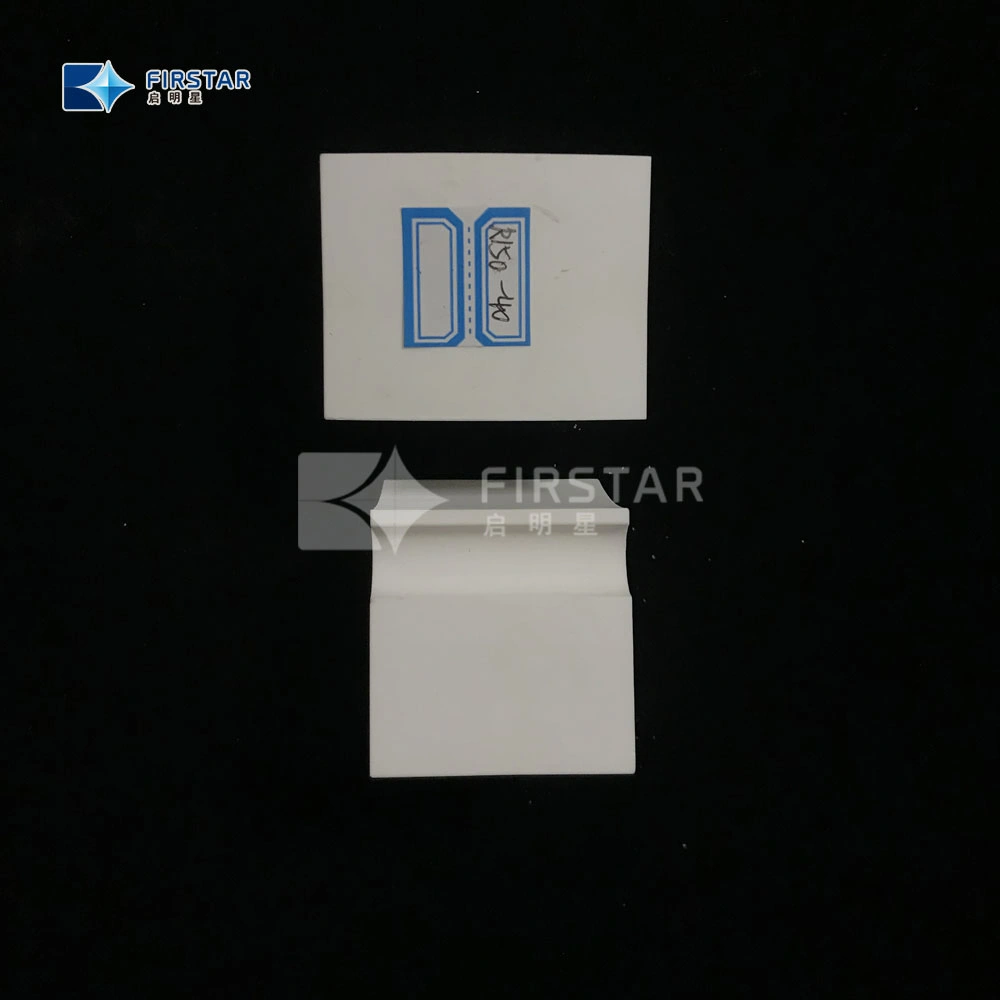

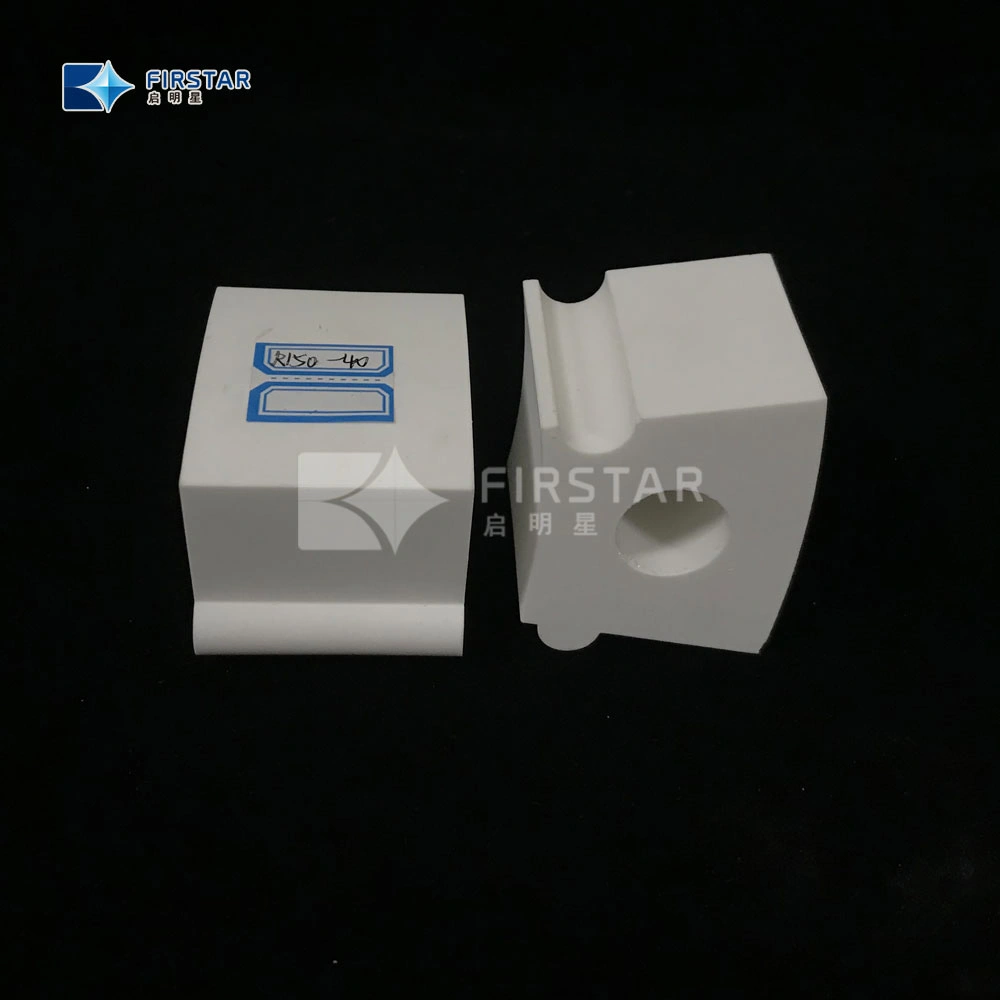

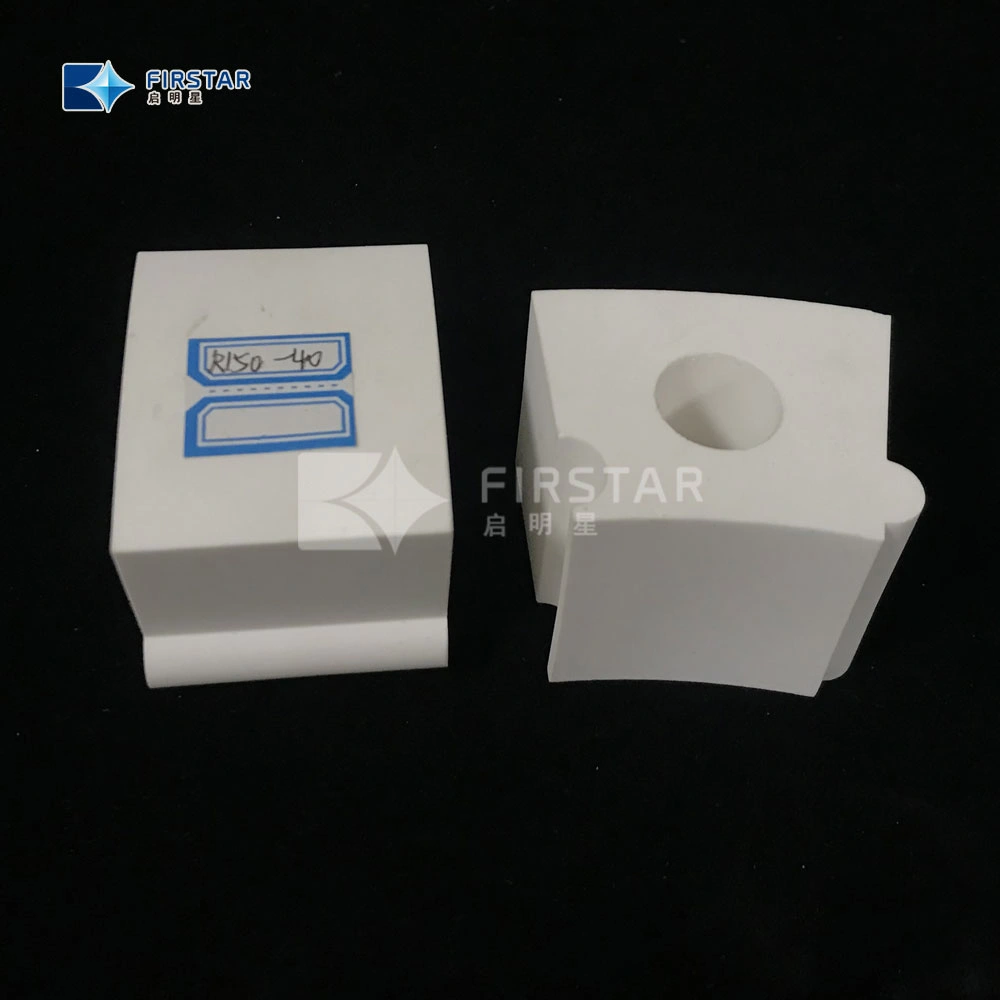

Wholesale R150-40 White Alumina Ceramic Tile/Brick With Hole
Product Introduction :
1.Alumina cubes
The Ceramic Cube is a high-performance abrasion and impact resisting linings for high-impact, high-pressure applications in which ceramic tile may not have sufficient structural resistance, and high-performance rubber may not offer the required wear life. In extreme applications, the Cube liners can be installed in a matrix or abrasion resistant steel plate to provide structural support for the ceramic/rubber matrix and provide exceptional wear life where competing products cannot.
Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
l Alumina 92: most common wear product with great wear resistance
l Alumina 95: increased wear performance
l Alumina 96: premium alumina for best wear resistance
l Zirconium toughened alumina(ZTA): increased strength and impact resistance
2.Product features:
> High hardness
> Superior abrasion and impact resistance
> Corrosion and chemical resistance
> Light weight
> Easy installation by epoxy resin or bolt
> Improve your working environment-noise, vibration and safety
3. Product Specification:
- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.
- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.
- Hexagonal tile: S12.5xT3~20mm, S23.5xT6-25mm
- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)
- Ceramic Block: 40x40x40mm, 45x45x50mm,32x32x22mm, 38x38x38mm,etc.
- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.
4. Ceramic wear lining tiles for a variety of applications:
Processing equipment:
Pharmaceutical clean rooms/Food processing plants/Grain handling/Mineral processing/Cement manufacturing/Chemical processing/Large Cyclones/Coal-fired power plants/Steel Mills/Asphalt Plants/Petrochemical plants/Pulp and paper mills.
Packaging :
About package and shipping mark all could be customzied.
Kindly contact with Amy please : )
Our Company :
1.Established in 1997,20 years experience in wear solutions products.
2.Factory is under expanding, the total construction area is 50,000 sqm.
3.ISO9001:2000 certified,over 260 staffs.
4.Three Own-designed production lines, the ball mils are own produced.
The company specializes in the production of HC series wear-resistant ceramic liners(alumina ball, zirconium silicate ball, zirconia toughed alumina ball, zirconium ball), agate ball, polyurethane ball, 92/T95/ZTA wear-resistant ceramic liner (alumina liner, zirconium toughed aluminum composite liner, zirconia plate), three-in-one,Two-in-one vulcanized ceramic runner sheet,ceramic mending compound, ceramic lining cyclone, ceramic lining pipe.
FAQ :
Q: Are you trading company or manufacturer ?
Q: How long is your delivery time ?
Q: What is your terms of payment ?
| Category | HC90 | HC92 | HC95 | HCT95 | HC99 | HC-ZTA | ZrO2 |
| Al2O3 | ≥90% | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
| ZrO2 | / | / | / | / | / | ≥21% | ≥95% |
| Density | >3.50g/ cm3 | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.83g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
| HV 20 | ≥900 | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1350 | ≥1100 |
| Rock Hardness HRA | ≥80 | ≥82 | ≥85 | ≥88 | ≥90 | ≥90 | ≥88 |
| Bending Strength MPa | ≥180 | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
| Compression strength MPa | ≥970 | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
| Fracture Toughness KIc MPam 1/2 | ≥3.5 | ≥3.7 | ≥3.8 | ≥4.0 | ≥4.2 | ≥4.5 | ≥7.0 |
| Wear Volume | ≤0.28 cm3 | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 | ≤0.10 cm3 | ≤0.05cm3 | ≤0.02cm3 |
1.Alumina cubes
The Ceramic Cube is a high-performance abrasion and impact resisting linings for high-impact, high-pressure applications in which ceramic tile may not have sufficient structural resistance, and high-performance rubber may not offer the required wear life. In extreme applications, the Cube liners can be installed in a matrix or abrasion resistant steel plate to provide structural support for the ceramic/rubber matrix and provide exceptional wear life where competing products cannot.
Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
l Alumina 92: most common wear product with great wear resistance
l Alumina 95: increased wear performance
l Alumina 96: premium alumina for best wear resistance
l Zirconium toughened alumina(ZTA): increased strength and impact resistance
2.Product features:
> High hardness
> Superior abrasion and impact resistance
> Corrosion and chemical resistance
> Light weight
> Easy installation by epoxy resin or bolt
> Improve your working environment-noise, vibration and safety
3. Product Specification:
- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.
- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.
- Hexagonal tile: S12.5xT3~20mm, S23.5xT6-25mm
- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)
- Ceramic Block: 40x40x40mm, 45x45x50mm,32x32x22mm, 38x38x38mm,etc.
- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.
4. Ceramic wear lining tiles for a variety of applications:
Processing equipment:
Pharmaceutical clean rooms/Food processing plants/Grain handling/Mineral processing/Cement manufacturing/Chemical processing/Large Cyclones/Coal-fired power plants/Steel Mills/Asphalt Plants/Petrochemical plants/Pulp and paper mills.
Packaging :
1.Packaged with carton box.
2.There are compartments in the cartons to prevent friction.
2.There are compartments in the cartons to prevent friction.
About package and shipping mark all could be customzied.
Kindly contact with Amy please : )
Our Company :
1.Established in 1997,20 years experience in wear solutions products.
2.Factory is under expanding, the total construction area is 50,000 sqm.
3.ISO9001:2000 certified,over 260 staffs.
4.Three Own-designed production lines, the ball mils are own produced.
The company specializes in the production of HC series wear-resistant ceramic liners(alumina ball, zirconium silicate ball, zirconia toughed alumina ball, zirconium ball), agate ball, polyurethane ball, 92/T95/ZTA wear-resistant ceramic liner (alumina liner, zirconium toughed aluminum composite liner, zirconia plate), three-in-one,Two-in-one vulcanized ceramic runner sheet,ceramic mending compound, ceramic lining cyclone, ceramic lining pipe.
