Product Description

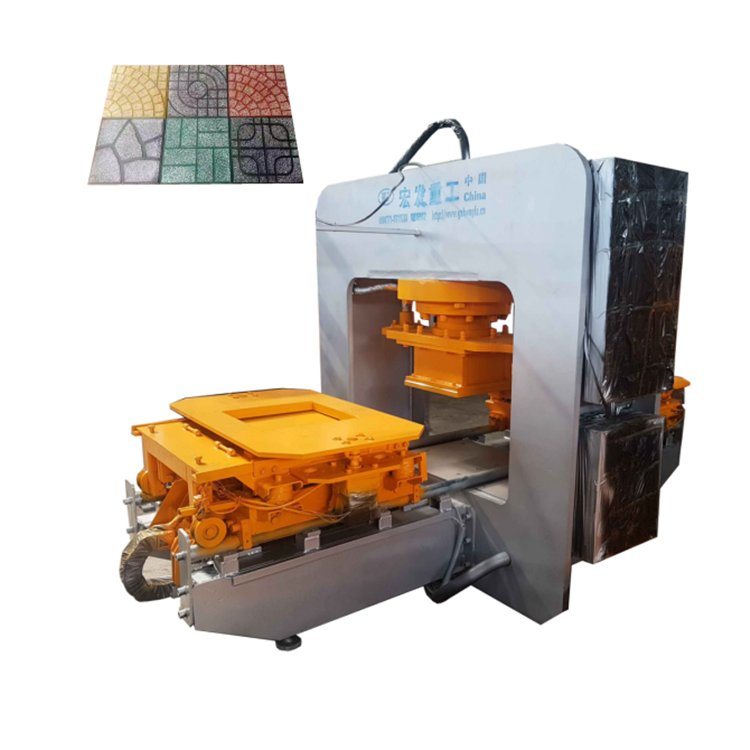

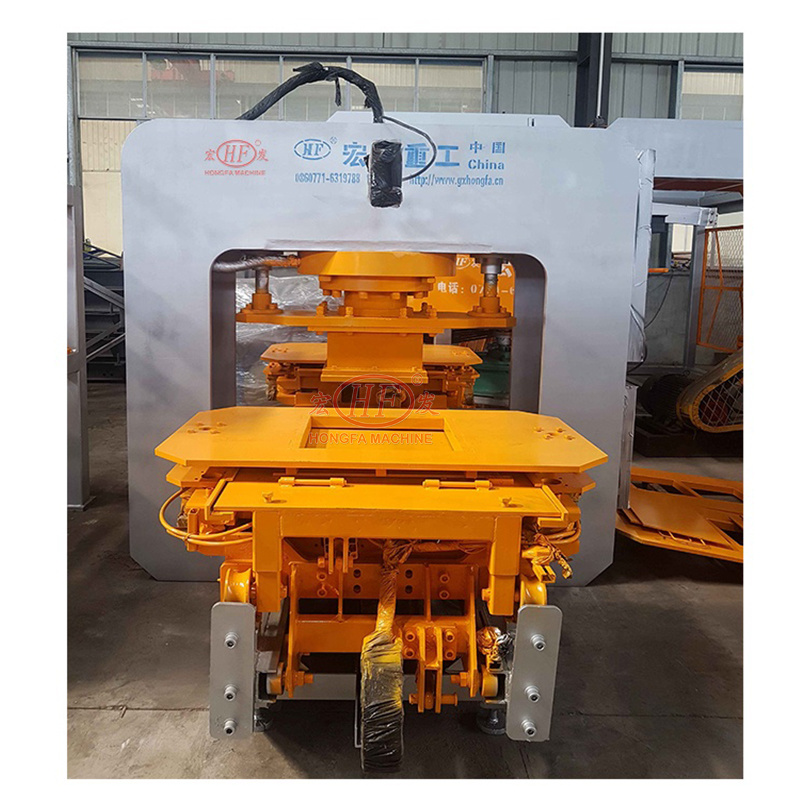

Hongfa tile making machine precast concrete machinery floor tiles cement terrazzo tile hydraulic press pavers tiles
Product Description of Terrazzo Making Machine Stone Brick Machine
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00BtEWvClIfnbJ/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
Terrazzo Making Machine Stone Brick Machine Specification
* Molding pressure: 300t* Powder:18.5 kw
* Capacity: 4-6 pieces/minute
* Max. Product size: 600x600mm
* Weight: 5700kg
* Rated hydraulic pressure: 16Mpa
* Overall dimension: 3000x1800x1950mm
Terrazzo Brick Making Machine Interlocking Stone Machine Terrazzo Tile Making Machine Capacity
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00BTaieOVtEyow/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
- Special designed for manual operation,low investment, high efficiency

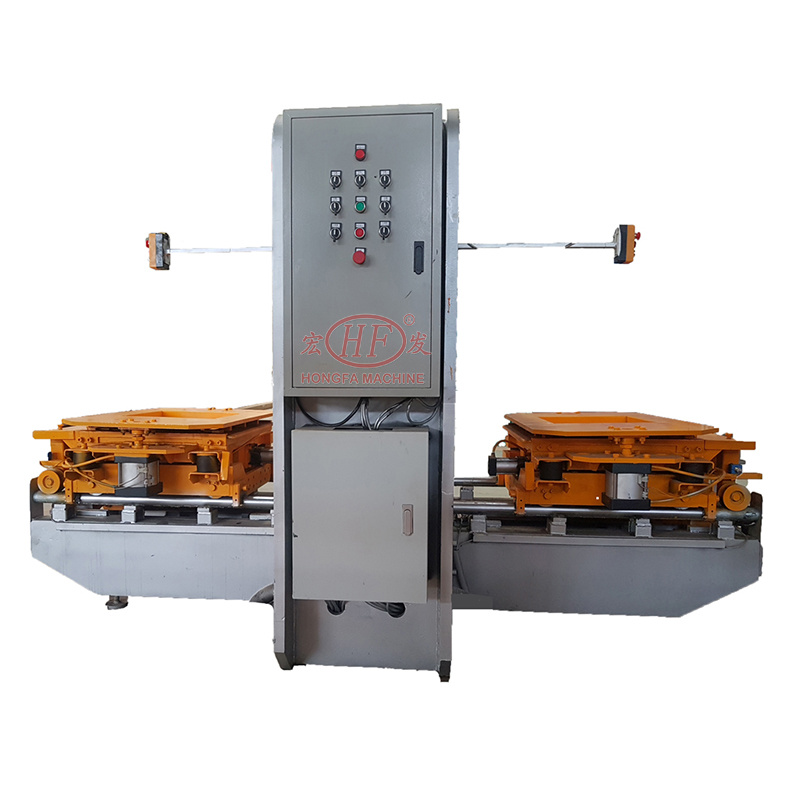

- Two molds at both sides, can produce terrazzo tiles at the same time
- Hydraulic pressure guarantees the high density of the terrazzo tile
- The tile machine easy operation,low maintenance rate
- HFT300 terrazzo tile machine can produce floor tile,pave brick,paving tile,garden tile, with customized pattern.
- The machine can install with Pan mixers
- Only three or four workers can run the terrazzo tile molding machine
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00saTiMgWhAnow/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
The Cheap Brick Making Machine Terrazzo Tile Making Machine Terrazzo Stone Machine
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00jQaWeilhfNcA/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
What Are the Brick Making Machine Terrazzo Tile Making Machine Features
Combining with German High-tech and Hongfa Technology, this advanced terrazzo tile making machine concrete making machine is superior in these aspects:
Passing the strict quality inspection
- CE/SGS/ISO9001:2000
With the best configuration
- Imported Control Panel
With great performances
- With vibration case in the bottom, so can produce more densitive terrazzo tile stone
- Extremely proving the stability
- Upper mould moving and raw materials released handle by control box
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00jtahBelrfNbd/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
The Terrazzo Tile Stone Making Process and Control System with Hongfa Terrazzo Tile Machine
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00sETVCOidQFcw/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
Raw Materials to Produce Terrazzo Tile Brick Making Machine Interlocking Brick
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00OTQietVBEFqm/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
Available Sizes and Thickness of Terrazzo Tile Making Machine Interlocking Brick Products
- Applied Block or Brick Products: concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
- This Automatic Block Making Equipment or Brick Production Machine machine can make all kinds of bricks by changing mould, so we can make the mould according to customer's need .Below type of bricks just for your reference.
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00FtEhezWylnod/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
With over 20 years' experience in R&D and manufacturing block making machine, fully-automatic brick production line, concrete pipe making machine, concrete mixing plant, as well as light weight EPS wall panel machine, Hongfa Heavy Machinery Co., Ltd. have gained much reputation by its high quality products which meet the ISO9001-2000 standard and with the certificates of CE, SGS, BV etc.
Owning over 67 patents (including invention and practical patents) and gaining "China Well-Known Trademark" honor, Hongfa Machinery is dedicated to providing high quality EPS light wight wall panel making machines to our customers.
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00FQahvVWcLOqd/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
The machinery production facility established in 1990 is known for its quality, durability and efficiency. Building material machinery is the core business of "HONGFA Group".
It has four production factories with imported equipment and a large Research and Development centre. The plant area is 110,000 m2 employing 1500 including 40 engineers and 150 assistant engineers. The annual sale is approx. 100Million USD covering more than 76 countries such as the United States, Russia, Australia, Brazil, India, Vietnam, Thailand, Sudan, North Korea, Angola, Bangladesh, the Five Central Asian Countries, etc.
Hongfa machinery has many Honours and Recognitions to its credit like:
1. One of Top Ten Influential Brands in China for Brick & Tile Industry
2. AAA Grade Credit Enterprise.
3. Star Enterprise with China Patent
4. China National Enterpriseabiding Contract & Good Faith
5. Quality and Credibility of the Dual-protection Demonstration Unit
6. Advance Quality Management Unit
7. High and New Technology Enterprise
8. Famous Trademark of China
9. Consumer Satisfaction Unit
10.One of Top Ten Good Faith Units
11.Advanced Exporter in China
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00nTtlvMWzrNqm/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
FAQ
1,How many kinds of concrete blocks and bricks that QTJ4-25C can make?
QTJ4-25C can make: hollow block,solid brick,porous block,paver brick,interlock brick,etc, by changing different mold.
2,What is the main materials to make the bricks, and how about the ratio of each material?
Normally used main materials are: Cement, sand,stone powder,fly ash,gravel,construction waste materiasl,etc.
Materials ratio samples: cement 10%+sand 30%+stone powder 60%.
Our engineer will adjust the materials ratio at site accoridng to the requirement.
3,What is the lead time after the order contracted and payment confirmed?
We always have the main machine in stock, only the customized produced mold need about two weeks to make. so we will ship
the machines and mold with 15 days.
![Tile Making Machine Precast Concrete Machinery Floor Tiles Cement Terrazzo Tile Hydraulic Press Pavers Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00FaQivnWdGOcA/Tile-Making-Machine-Precast-Concrete-Machinery-Floor-Tiles-Cement-Terrazzo-Tile-Hydraulic-Press-Pavers-Tiles.webp)
4,What is the terms of payment?
We condcut with 30% down payment and balance against B/L.
5,When we buy your brick making machine,what kinds of after sales services will be provided?
Our engineer will issue the land layout drawing for our clients to make foundation for the installation of the machines before the shipping of the cargo. When the machine arrives, we will send our technicians to guide the installation upon client's request. And after the installation, our technician will do the testing and commissioning, and also training to workers of how to operate and maintain the machines and equipment of the brick production line.
