Plastic Double-Layer PVC Corrugated Sheet Roofing Tile Extruder/Machine

Durable Plastic Double-Layer PVC Corrugated Sheet Roofing Tile Extruder/Machine. Buy direct from our factory for high-quality and cost-effective solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
720, 880, 1050
Customized
Customized
Condition
New, Under The Order
Warranty
1year
Corrugated Sheet Structure
Composite Glazed Roof Tile,PVC+ASA\PMMA
Delivery Conditions
Fob CIF CIP
Corrugated Sheet Processing Period
40-60 Days
Delivery Period
30days
After-Sales Service
Send Engineers Install and Test Machine
Technical Support
Permanent
Dimension
20*4.0*3 (M)
Weight
12t
Corrugated Roofing Tile Line Output
350-400kg/H
Transport Package
Stretch Film and Wooden Pallet, Wooden Packing
Specification
PVC ASA glazed roof tile Width 720/880/960/1040mm
Trademark
Sincere Machinery
Origin
Qingdao, China
HS Code
8477209000
Production Capacity
20sets\Year

Product Description

PVC ASA composite glazed House roofing tile extrusion line.
PVC Resin Roofing tiles extruding machine.
PVC bamboo roofing tile production line.


 720mm/880mm/960mm/1040mm/1050mm

1. PVC glazed roof tile extrusion production line advantages:
high production efficiency, the structure is reasonable and compact, easy operation and maintenance.
 PVC glazed roof tile is widely used in pavilions, hotels, exhibition halls, resorts, families and other buildings. PVC glazed roof tile has a series of advantages: Weather resistance, Corrosion resistant performance, excellent load capacity, Shock resistant and low temperature resistant, Self clean and so on.

Plastic Double-Layer PVC Corrugated Sheet Roofing Tile Extruder/Machine
Plastic Double-Layer PVC Corrugated Sheet Roofing Tile Extruder/Machine

2. PVC glazed roof tile extrusion line  configuration
No Name Number
1 Screw loader for SJZ80/156 1set
2 SJZ80/156 Conical twin screw extruder  1set
3 drying hopper for SJ50/30 1set
4 Vacuum loader for SJ50/30 1set
5 SJ50/30 single screw extruder 1set
6 Extrusion Mould and Distributor (T-die) 1set
7 DistributorForming machine  1set
8 Embossing roller Trimming device 1set
9 Embossing roller  1set
10 Cutter  1set
11 Stacker 1set
 Plastic Double-Layer PVC Corrugated Sheet Roofing Tile Extruder/Machine

 Auxiliary machine:
No Name Number
1
Accessories machines for Top Ridge(Europe Style Tile), Side ridge, three way ridge, End Ridge, fittings.

1.1)Flat sheet haul-off unit, 1 set
1.2)Oven,1set
1.3)Ridge tile forming unit,1set
1.4)ridge tile mold, 4sets
2 Mixer 200|500 or 300|600 1set
3 Screw loader  1set
4 Crusher 1set
5 Pulverizer (milling machine) 1set
 Plastic Double-Layer PVC Corrugated Sheet Roofing Tile Extruder/Machine
3. Main Technical Specifications:
Extruder   SJZS-80/156   SJ50/30
Productivity   350kg/h   50kg/h
Haul-off power   20KN
Haul-off speed  0.3~5m/min
Product specifications
(Can be produced according to customer requirements)
 Width title:720/880/960/1040mm
Pitch:160mm
wave length:220mm
wave height:30mm
Thickness:1~3mm
Materials:PVC,ASA  or PMMA with different colors and some additives.

4. Raw material & Final product of ROOF TILE MAKING MACHINE:
Raw material & formulation PVC resin, Caco3, lubricant,stabilizing agent, pigment, anti-ultraviolet agent,Pigment etc
Central height: 1000mm
Max. Haul-off speed: 3m/min
Operation direction From right to left (face to the operation panel)
Machine color Standard color: RAL7016 (Anthracite grey) ;
RAL9002 (Grey white)
Description final product & Output capacity Singlelayers PVC Roofing tile;
Width:500-1500mm,Thickness: 1.2~3.0mm;
Wave distance:180mm; Wave height:30mm;
Output:300-400kg/h(Depending on CaCO3 proportion)

5. Work condition (provide by customer) of ROOF TILE MAKING MACHINE:
Warehouse/Workshop Construction of foundations, construction works, earthworks, and wall works;
Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools;
Dimension (M×M×M): 20 (Length)×2.0 (width) ×2.5 (Height)
Crane: Machine positioning
Temperature & Humidity ≤40°C, ≤95%
Power supply Supply voltage: 3*380V+N+PE;
Voltage tolerance: +5%/-5%;
Control voltage: 24VDC+220VAC;
Frequency: 50HZ+-2%
Wire/cables/water hose: Wires/cables: from power supply to control cabinet of this production line and all electrical cables from control cabinet to each machine;
Water hose: supply water to machines and pools;
Cooling Water Without dissolved or suspended minerals as phosphor, sulphur, iron, etc.
Inflow temperature T1: max. 15°C;
Outflow temperature T2: T2=T1+5°C;
Hardness: 5-8 OdH;
Reflux: without pressure
Lubrication oil: Sinopec, Exxon mobile
Compressor Unnecessary

6. Energy consumption of  ROOF TILE MAKING MACHINE:
Installation power 135KW,the real consumption only 80%
Cooling Water ≤20°C,   ≥0.3Mpa, ~4-5tons/hr
Compressedair 0.3m3/min, >0.6Mpa
Manpower 2-3 Person

7. Main commercial terms of ROOF TILE MAKING MACHINE:
Project PVC roofing tile extrusion line
Payment term 30% as down payment by T/T; 70% by T/T before delivery and after inspection
Delivery time 70 days since the date of receiving down payment
Packing Wood pallet covered by plastic film
Warranty period 12 months since date of bill of lading

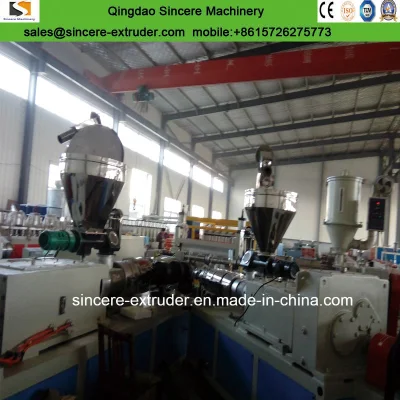

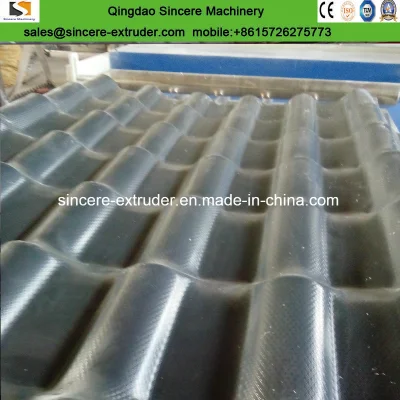

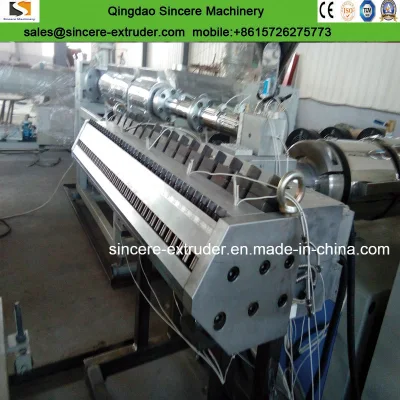

PVC roof tile making machine pictures:
