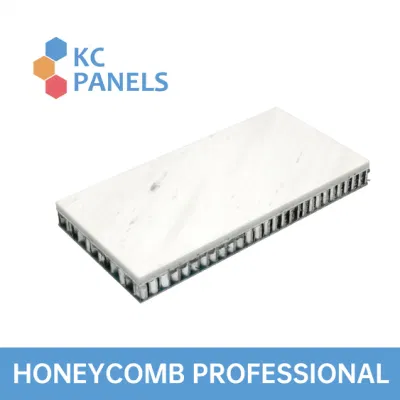

5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

Discover our cost-saving 5mm Natural Marble Tile on Honeycomb Panel lightweight thin stone wall panels. We are a factory specializing in manufacturing high-quality stone panels.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SHP
Stone Form
Cut-to-Size
Application
Floor, Wall, Countertop, Cladding / Table Top
Size
up to 1500*3000mm
Density
2.7(g/cm³)
Thickness
5mm Natural Marble + 15mm Honeycomb Backing
Technics
Natural
Stone Type
All Types of Natural Stone
Finishes
All Types of Finishes
Thickness of Stone Veneer
3~10mm
Overall Weight
20kg/M2
Fabrication
Pre-Fabrication in Factory
Transport Package
Plywood Crates / Steel Frames
Specification
Up to 2000*6000mm
Trademark
KC PANELS
Origin
China
HS Code
76169990
Production Capacity
100, 000m2/Year

Product Description

5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

WHY KCP?

Foshan Yixiang, with its brand 'KC PANELS', has been dedicated in aluminum honeycomb products for more than 15 years.

KCP understands international standard. By participating in landmark projects all over the world, we have gained ample experience and know-how to meet with the most stringent standards in the industry.

KCP cares about quality. We fully implement ISO 9001 at every production sector in the factory. Experienced QC staffs are assigned to each individual project to tackle possible defects and issues throughout the whole processing.

KCP got capacity. We have a 20,000M2 workshop with high-efficient machineries and production lines. Our key workers all have more than 8 years in manufacturing aluminum honeycomb panels which enables punctual delivery with high quality.

KCP makes good offers. We integrate production from aluminum honeycomb core to aluminum honeycomb panels and stone panels which reduces outsourcing and effectively lower the cost.

Talk to us and let us take care anything about honeycomb.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------


5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

THE SPECIFICATIONS

1. Composition of Panels

5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel
KCP's stone honeycomb panels consist of 6mm natural stone veneer or 3mm porcelain slab on top and aluminum honeycomb panels as backing for reinforcement. The top veneer is bonded with the backing by specifically developed epoxy adhesive.

KCP works closely with internationally renowned adhesive brands to ensure that the glue applied on each individual stone panel fits for the use in even the most extreme conditions. For example, our stone honeycomb panel can endure vast temperature changes from -40 degree to 80 degree Celsius while the bonding strength stays at excellent level after decades.

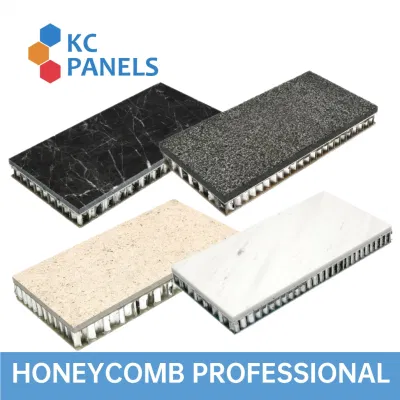

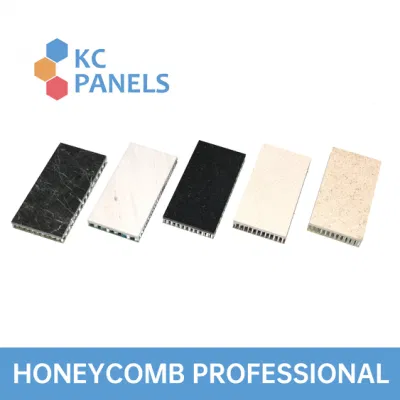

2. Collection of Panels

a. Natural Stone:
Marble, Granite, Limestone, Traverthine, Sandstone, Basalt, Onyx, etc.

b. Porcelain Tile:
3mm~10mm-thick tile, with stone pattern, wood vein, pure colors, etc.

c. Brick-alike Ceramic Tile
Multiple color and finishes of tiles available. With grouting and fabrication already completed in factory.

d. Curved Natural Stone
With 3mm thin stone veneer reinforced by aluminum honeycomb backing, the curved panels are lightweight and saving massive stone material comparing to solid stone curved blocks.



5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

3. Our Guaranteed Bonding

The bonding is always the most pivotal concern for stone honeycomb panels, especially for exterior applications. KCP only applied adhesive from proven brands which have at least 20 years of experience in the honeycomb composites field. Such adhesive is wildly used in honeycomb projects around the world for decades.

KCP also deeply cooperate with adhesive suppliers and follow strictly with their guidelines of proper applications. The storage room with constant temperature control is built for adhesive storing; Dust-free glue blending room is also built for two-component blending for lamination. Our panels can reach 2.0MPa for tensile test and lasts for over 100 years with acceptable degradation.

A 20-year warranty is provided for our panels.



4. Panel Specifications

ITEMS EXTERIOR PANELS INTERIOR PANELS
Width Up to 1600mm
Length Up to 3200mm
Overall Thickness 5mm to 500mm - Customizable
Stone Veneer Thickness 3mm to 20mm
Stone Finishes Polished, Honed, Flammed, Bush Hammering, Sandblast, etc.
Flatwise Tensile Strength 2.0Mpa 1.2Mpa
Flatwise Compressive Strength 1.0Mpa 0.8Mpa
Flatwise Shear Strength 1.0Mpa 0.8Mpa
Flatwise Compressive Elastic Modulus 35Mpa 30Mpa
Flexural Strength 8Mpa 4Mpa
Drum Peeling Strength 60N.mm/mm 50N.mm/mm
Weather
Resistance
From -40 degree Celsius to 80 degree Celsius N/A

5. Factory Fabrication

Factory in-house fabrication according to shop drawings. Leave the complex work to us so to cut down overall budget on your project.

5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel
6. Applications

KCP's stone honeycomb panels are applicable for both exterior cladding and interior fitting-outs. We have rich experiences in commercial / residential / public projects in China and overseas.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------


5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

THE TESTING

KCP conducts comprehensive tests with Intertek and SGS, covering key aspects related to panel performances. Moreover, we established our in-house laboratory in 2010 to run random tests on each of our production, so to make sure consistency in bonding quality.

Fire Rating:
BS EN13501-1: A2, s1, d0
BS 476 Part 4, Part 6, Part 7
ASTM E84

Key Performances:
ASTM C297 - Flatwise Tensile Strength
ASTM C365 - Flatwise Compressive Strength
ASTM D1781 - Drum Peeling Strength
ASTM C273 - Plane Shear Strength
ASTM B117 - Salt Spray Test

Freeze & Thaw Resistance
ASTM C67 / ASTM C297 Freeze & Thaw: 50 cycles

Contact us to get test report copies.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------


5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

THE QUALITY CONTROL

KCP fully implements ISO 9001 at every production sector in the factory. Experienced QC staffs are assigned to each individual project to tackle possible defects and issues throughout the whole processing. In-house laboratory carries out vital testing on randomly selected specimens during production to monitor the bonding performances.

5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

In KCP, we have a 10-man QC team which is well trained and each individual having more than 5 years of experiences in the field of aluminum honeycomb industry.  Each batch of production will be monitored by designated personnel from incoming material to final check before shipping. In this way we grant every single panel shipped is flawless and live up to customers' expectations.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------



5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

THE FACTORY

KCP has a state-of-art facility which covers over 20,000M2, producing from aluminum honeycomb core, aluminum honeycomb panels to stone honeycomb panels. In-house laboratory was established in 2010 to monitor the consistency in quality throughout each of our production.

5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel
KCP is one of the few manufacturers in China who produces from aluminum honeycomb core, to aluminum honeycomb panels, and to stone honeycomb panels. Through this all-in-one production facility, not only overall cost can be controlled, and most importantly, the quality is always consistant throughtout every procedure of production.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------


5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

THE PROJECTS

Throughout the years, KCP completed various projects in U.S, Canada, Australia, Israel, Hong Kong, and major Chinese cities, covering from exterior cladding to interior fitting-outs.

5mm Natural Marble Tile on Honeycomb Panel Lightweight Cost-Saving Thin Stone Panels Wall Panel

Contact us for more project portfolios.
