Product Description
Lightweight simple installation (NO Crane Required) Lightweight Composite Wall Panel for construction
The ZJT Panel is a lightweight composite wall panel having a solid concrete core used for quick assembly of interior and exterior walls. With the aim to modernize commercial, residential and industrial structures and buildings, the wall panel pushes beyond boundaries in pursuit of a more ecological and sustainable society. As a replacement to traditional hollow blocks, brick-laying techniques, the ECOWALL is designed for speed, durability, environmental friendliness and most of all cost-effectiveness.
Advantages of ZJT wall panel
1).Interior partition (60mm,75mm or 90mm is your best choice)
2).Exterior Wall (120mm, 150mm, 180mm for your reference)
3).Floor and roof
4).prefabricated houses
5).Modern high-rise Building
6).Schools, Hotels, office
7).Indoor space of ecological residences
8).All kinds of houses and structures
Floor System

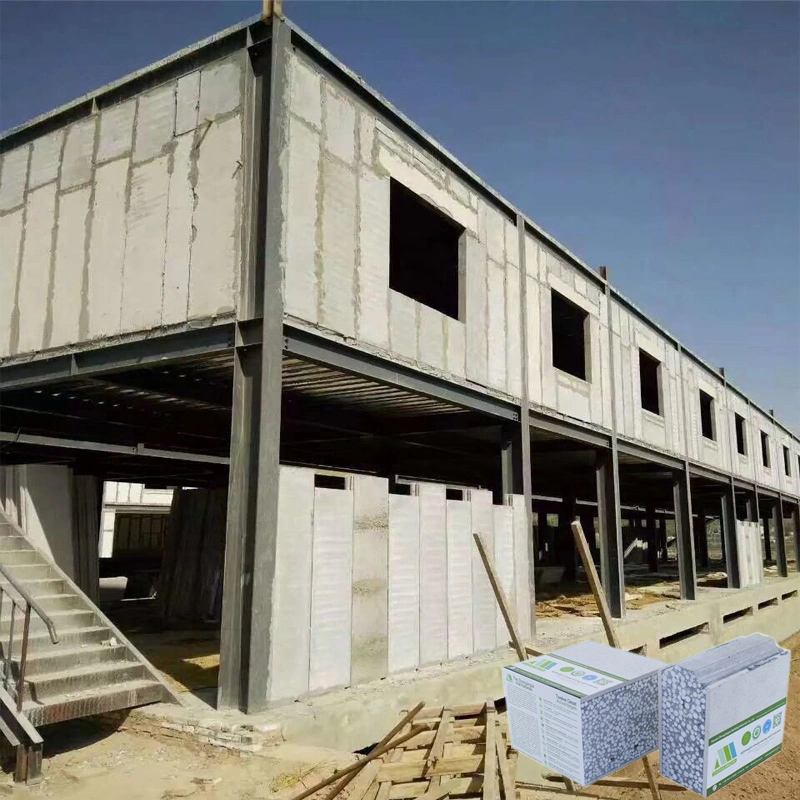

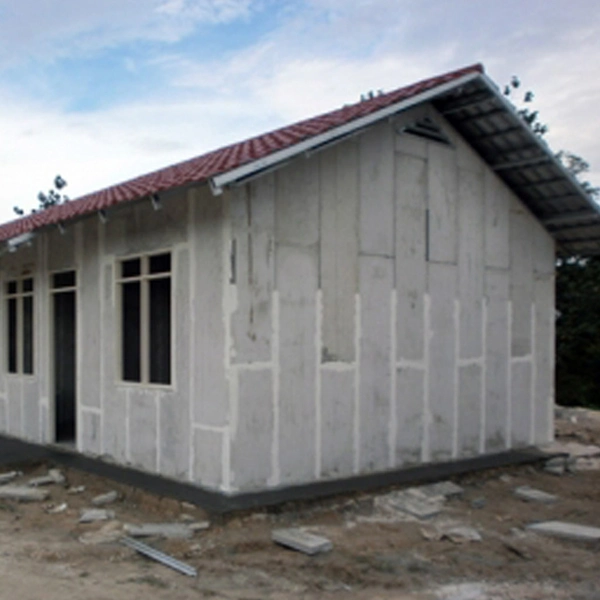

Villa & Exterior Wall System

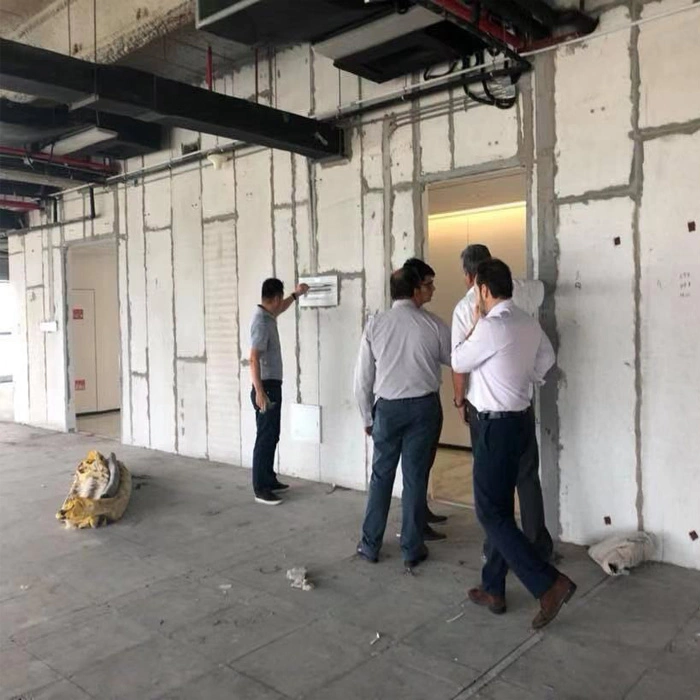

Interior Partition System & Roof System
Others
Loading Information
About Us
Xiamen ZhongJingtai building materials Co., Ltd, is a professional high-tech research and development company producing new wall materials, machinery and equipment development, technology production and promotion of product applications. The company is situated in the charming Xiamen city, with the convenience of water and land transportation and only ten minutes from the airport. We respond positively to the national policy on wall reforming. We have developed successfully wall panels that meet the energy saving needs of modern architecture.
We can produce more than 2 million square meters of various wall materials annually.
The light composite wall materials produced by us are environmentally-friendly, highly efficient, light, solid, thin, seismic resistant, good insulation, sound-proof, water-proof, fire-resistant , among other advantages.
Contact us
Dear friend, if you are interested in our product and have any problems, contact me and let's talk more details.
Contact Person: zoe zeng
Mobile Phone: 8618559217326
Website: http://zjteps.en.made-in-china.com
Company Address: Xiamen ZhongJingTai Building Materials CO., Ltd.
Unit 2A, Lianchang Building, No 6-8Huli Avenue, Huli District, Xiamen, China.
The ZJT Panel is a lightweight composite wall panel having a solid concrete core used for quick assembly of interior and exterior walls. With the aim to modernize commercial, residential and industrial structures and buildings, the wall panel pushes beyond boundaries in pursuit of a more ecological and sustainable society. As a replacement to traditional hollow blocks, brick-laying techniques, the ECOWALL is designed for speed, durability, environmental friendliness and most of all cost-effectiveness.
| Structure | 1). Surface: Reinforced calcium silicate board |
| 2).Core: Cement, EPS, sand, Fly ash | |
| Size | 1). Length:2270/2440mm |
| 2). Thickness: 60/75/90/100/120/150mm | |
| 3). Width: 610mm | |
| Color | Grey |
| Application | Floor, Roofing, Wall, Villa, Prefab building, Etc. |
| Character | Lightweigt, insulation, fireproof, waterproof, moistureproof, and eco-friendly etc. |
| Delivery Time | 7-20 days after order confirmed |
| Package | Put a layer of foam cloth between each panel, use hard paper to protect angles, use roll whole pallet with thin film, OEMis welcome. |
Advantages of ZJT wall panel
| No.1 | Easy and Fast | Direct application. Ready for rendering, coating, painting and other finishing. |
| NO.2 | Thin and Light | Lightweight but dur1able (average weight of 65 KG/sqm). Saves at least 20% floor area space. |
| NO.3 | Durability | High compression strength for a non-load bearing wall material with good earthquake resistance. |
| NO.4 | Heat Insulation / Preservation | Cooling effect against outside heat by maintaining the temperature inside the walls. |
| NO.5 | Water & Fire Proof | Fire rating of up to 4 hours with an anti-moisture face that can be exposed to open air environment. |
| NO.6 | Sound Insulation | Great for partitions that require sound proofing of up to 44dB in residential and commercial spaces. |
| NO.7 | Strong Hanging Strength | Single point hanging strength can take up to 70KG |
| NO.8 | Versatility | Applications in many forms of construction from vertical to horizontal structures, and in various components of the project such as inner/outer walls, floorings and roofings. |
Application
1).Interior partition (60mm,75mm or 90mm is your best choice)
2).Exterior Wall (120mm, 150mm, 180mm for your reference)
3).Floor and roof
4).prefabricated houses
5).Modern high-rise Building
6).Schools, Hotels, office
7).Indoor space of ecological residences
8).All kinds of houses and structures
Floor System
Villa & Exterior Wall System
Interior Partition System & Roof System
Others
Loading Information
| Items(mm) length*width*thickness | single(Pc) | Load by 20'GP | Load by 40'GP | ||||||||
| m3 | Kg/pcs | kg/m2 | Qty(pcs) | m2 | Tons | Qty(pcs) | m2 | Tons | |||
| 2270*610*60 | 0.08 | 47 | 34 | 313 | 413 | 15 | 525 | 727 | 26 | ||
| 2270*610*75 | 0.10 | 65 | 52 | 252 | 349 | 17 | 364 | 504 | 26 | ||
| 2270*610*90 | 0.12 | 73 | 60 | 216 | 299 | 17 | 322 | 446 | 26 | ||
| 2270*610*100 | 0.14 | 79 | 65 | 198 | 274 | 17 | 280 | 388 | 26 | ||
| 2270*610*120 | 0.17 | 90 | 74 | 162 | 224 | 16 | 252 | 349 | 26 | ||
| 2270*610*150 | 0.21 | 106 | 88 | 126 | 174 | 15 | 189 | 261 | 26 | ||
| 2440*610*60 | 0.09 | 60 | 40 | 240 | 357 | 15 | 420 | 625 | 26 | ||
| 2440*610*75 | 0.11 | 80 | 54 | 204 | 304 | 17 | 308 | 458 | 26 | ||
| 2440*610*90 | 0.13 | 90 | 60 | 168 | 250 | 16 | 336 | 500 | 26 | ||
| 2440*610*100 | 0.15 | 100 | 67 | 144 | 214 | 16 | 240 | 357 | 26 | ||
| 2440*610*120 | 0.18 | 110 | 74 | 108 | 161 | 12 | 216 | 321 | 26 | ||
| 2440*610*150 | 0.22 | 160 | 107 | 78 | 116 | 16 | 167 | 250 | 26 | ||
About Us
Xiamen ZhongJingtai building materials Co., Ltd, is a professional high-tech research and development company producing new wall materials, machinery and equipment development, technology production and promotion of product applications. The company is situated in the charming Xiamen city, with the convenience of water and land transportation and only ten minutes from the airport. We respond positively to the national policy on wall reforming. We have developed successfully wall panels that meet the energy saving needs of modern architecture.
We can produce more than 2 million square meters of various wall materials annually.
The light composite wall materials produced by us are environmentally-friendly, highly efficient, light, solid, thin, seismic resistant, good insulation, sound-proof, water-proof, fire-resistant , among other advantages.
