Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line

Discover our state-of-the-art Lightweight EPS Cement Wall Panel Line for high-quality construction. We are a leading factory with precision production.
Request a Quote

PRODUCTS DETAILS

Product Description

lightweight eps cement wall panel line/lightweight concrete panel production line
Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line



Product Description

EPS Cement Sandwich Panel is a kind of lightweight energy saving wall material, which uses cement calcium silicate or reinforced calcium silicate board as face panel, filled with cement, Expanded Polystyrene (EPS) foam particles as core material and forming by one time compound.

Automatic lightweight eps cement wall panel line:

The EPS lightweight panel production line mainly have these parts foaming system, storage system, conveying system, measuring system, mixing system, casting system, demolding system. Demoulding, 20panels/time. So can save a lot of your labor cost.

After installation and commissioning, we will provide technical formula suitable with client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promise you a 100% perfect project.


Machinery Parameters
Capacity20,000sqm~600,000sqm per year
Thickness50-200mm thickness. special sizes need to be customized
Length2440~3600mm
Width610mm
Raw materiaThere are mainly two different types
1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add)
2. Fomed cement+additives
Finished board type1. Composite board/sandwich board, with surface board
2. Lightweight solid panel, without furface board
Surface board types1. Calcium silicate board
2. Fiber cement board
3. Mgo board
Electrical There are mainly two different types


Raw material:
Basic MaterialCement
Heavy AggregateSand
Lightweight AggregateEPS particles ( Particle size 3-5mm after forming )
Ceramsite (large than 5mm ),Pumice stone(5-12mm)
Perlite ,Tire pellets,Construction rubbish,Rice husk
Chemical additivesLike forming agent , water reducer ,cellulose ether ect.

Main equipment

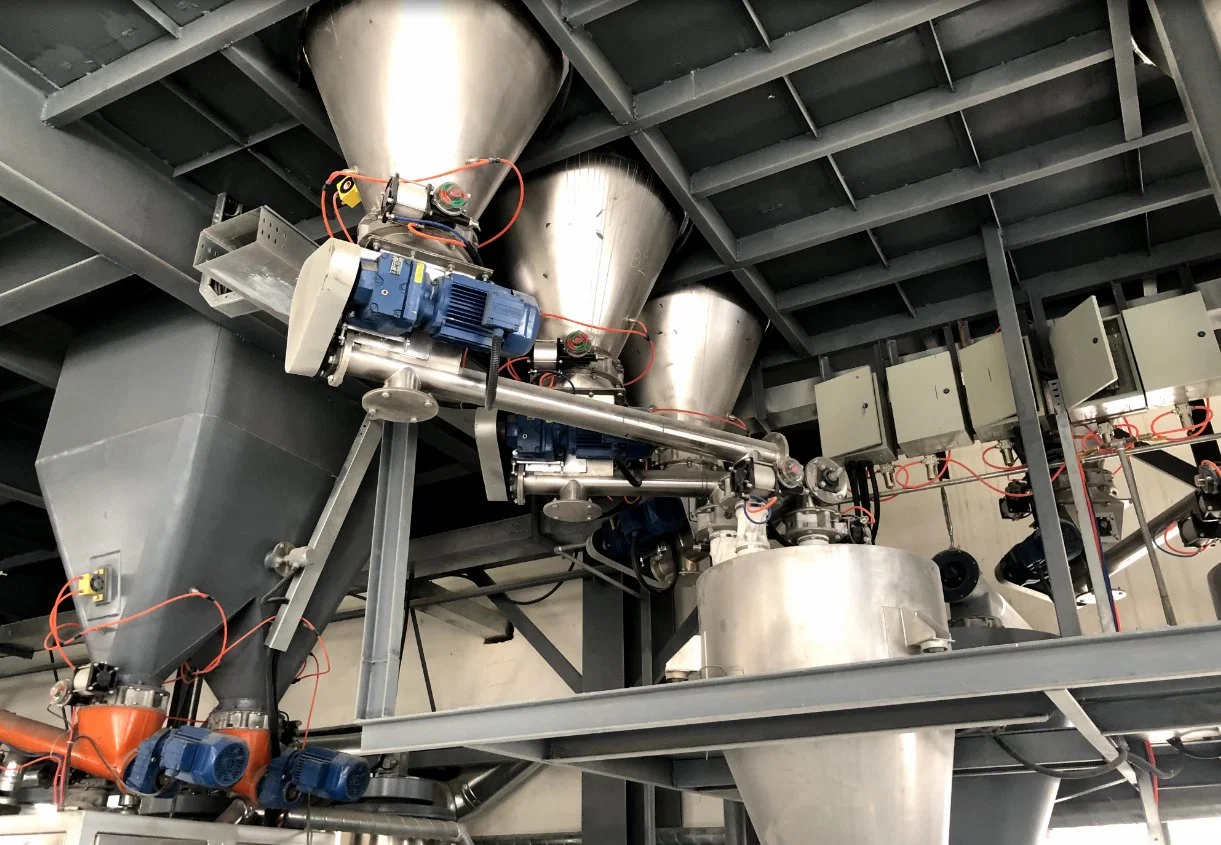

1)Mixing system:(include mixer, platform)

Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line

1)Double-shaft mixer
Capacity available :1.2/1.5/2.0/2.5/3.0/3.5 sqm
Introduce:the mixer capacity is related to the mould car quantity.
Features: the double shaft is to blend the raw material more even ,also save time . When mould car qty over 10 units, we recommend to use the secondary mixing mixer. This can save time of 01st mixer, improve efficiency.

2)Platform
-Measuring platform,
-Mixing platform (necessary),
-Casting platform (necessary),
-Electric control cabinet platform ,
-Auxiliary Platform /Calcium Silicate Board installation platform
ps:Besides necessary platform , other platform we can equip as client requirement .

Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line
3)MOVABLE/FIXED FEEDING MACHINE:
It can help convey concrete mixing material into the mold car. It is made up by pump and technical industrial hose, pump convey method avoid the air holes. The feeding machine can be moveable or fixed, matched well with mold car, easily operate.
4) Mould car:
This is the part to form eps cement sandwich wall panel.It can cast 20pcs to 36pcs panels per time according to different panel thickness. The mold car qty depends on panel production capacity. It can be moveable or fixed.
Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line
Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line

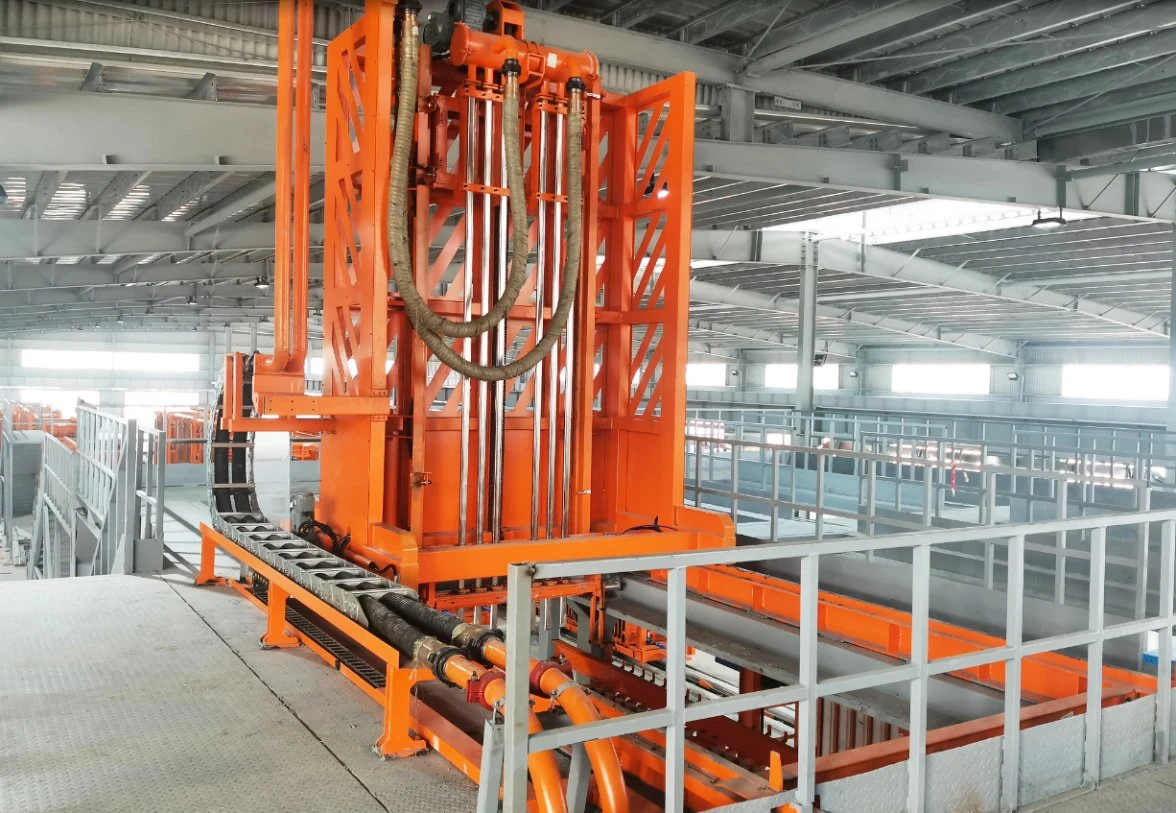

4)Automatic de-molding&tilting system:
→Pull out the panels automatically, it can pull out 20 panels at one time
→turn over the board make it horizontally for stacking



Finished product advantage

Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line
Finished Product advantages
1.The lighter material of the brick used weighs 25% to 40% of the  weight of the bricks.
2.High thermal insulation.
3.Remove a higher sound.
4.Install faster 4 times than the regular blocks.
5.Wall does not need the expenses of the work of the plaster.
6.Change the cement used to modern materials doubles the daily production and make the product lighter weight.
7. Manufacturing mold molds so that the measurement can be changed according to demand.

Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line



Engineering cases



Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line

Company Profile

Dezhou Haitian was established in 1997. We have been focusing on the manufacturing of machines for prefabricated (precast) concrete components, and provide the supporting service of a total solution.


Our company receive more than fifty national technical patents and Participate in the formulation of nine national prefabricated building standards. We are the only high-tech enterprise in the industry that undertakes the national key R&D project of the "13th Five-Year Plan" - "PRECAST CONCRETE COMPONENTS INDUSTRIALIZATION PRODUCTION OF KEY TECHNOLOGIES AND MACHINE". Our company is committed to building three core capabilities of R&D, manufacturing, and service.

It can customize a total of various prefabricated concrete component machine solutions for customers. The machines are sold throughout China and exported to more than 80 countries and are trusted by customers.
Lightweight EPS Cement Wall Panel Line/Lightweight Concrete Panel Production Line


Welcome to visit our plant!


FAQ

1.Why choose you?
-26 years professional experiences in the precast concrete machinery/molds and production line.
-Vice president of CCPA(Short for "Concrete and Cement Products Association of China")
-An ISO9001:2008 and CE certified company!

2.Where is your company situated?

Our factory located at Dezhou city, Shandong province, China.

3.How do we come to your factory?
 If you are in Shanghai, take fast train from Hongqiao to Dezhou East, it takes 3-4h.
 If you are in Beijing, take fast train from Beijing South to Dezhou East, it takes 1.5h.
We will pick you up at the destination station.


4.What is your payment term ?
You can transfer the payment via T/T. We will provide you the bank detail.
Generally, 30% prepaid and the rest 70% should be paid before shipping.
