Product Description

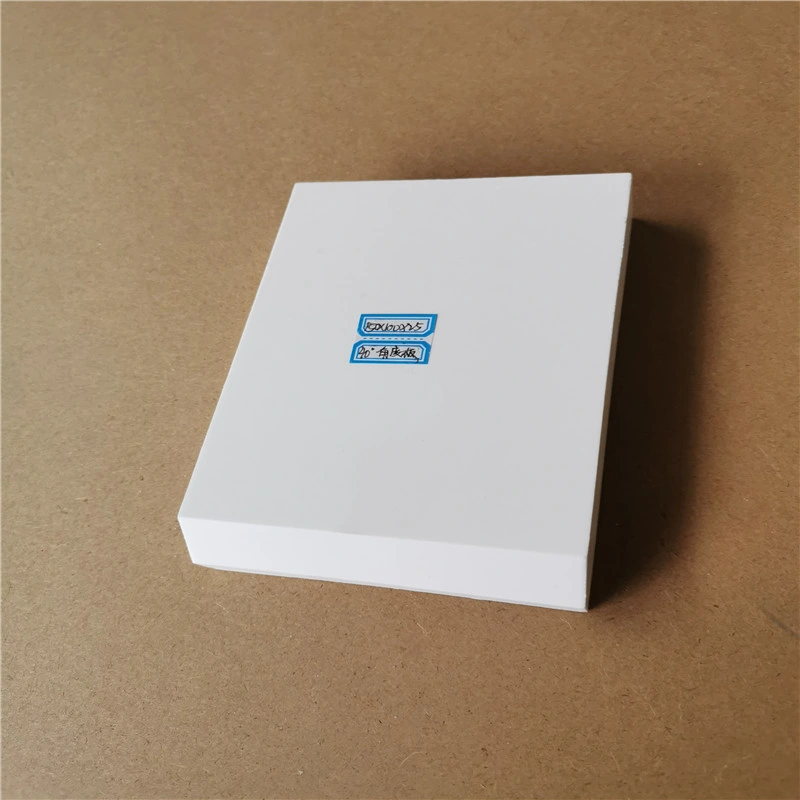

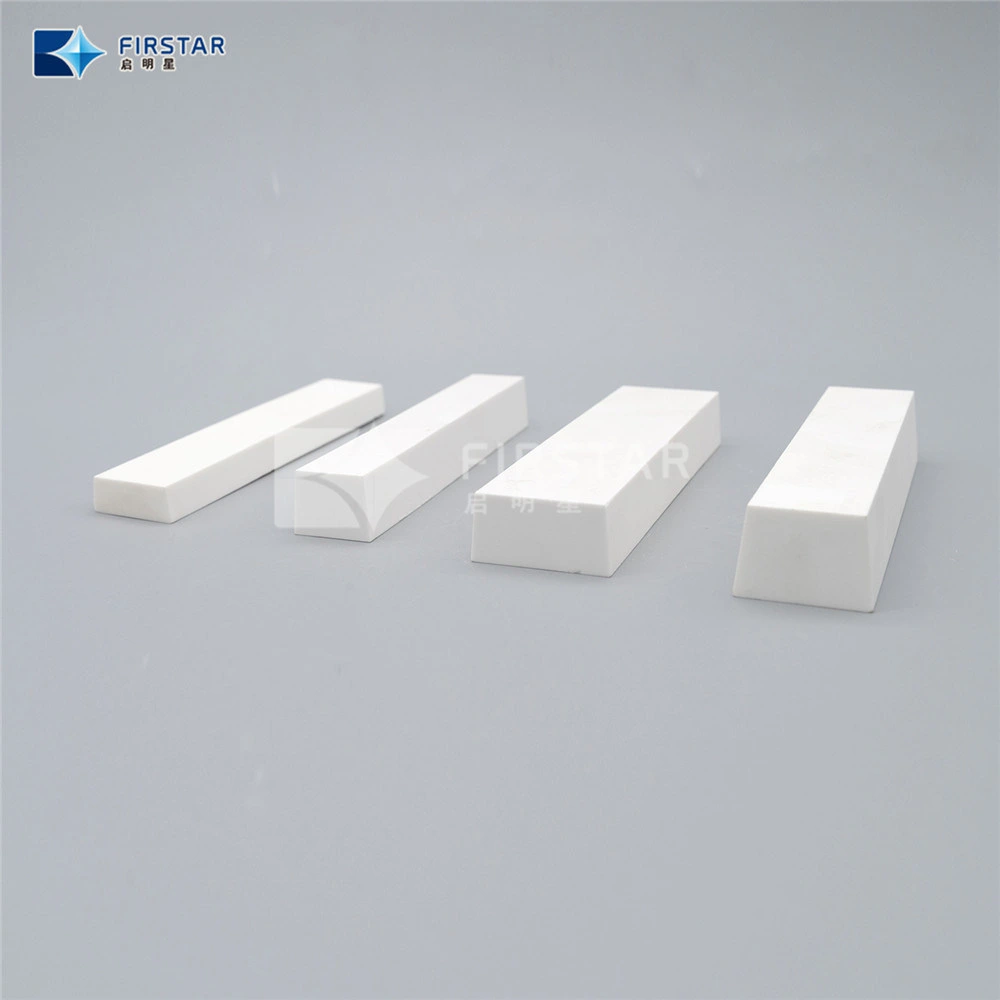

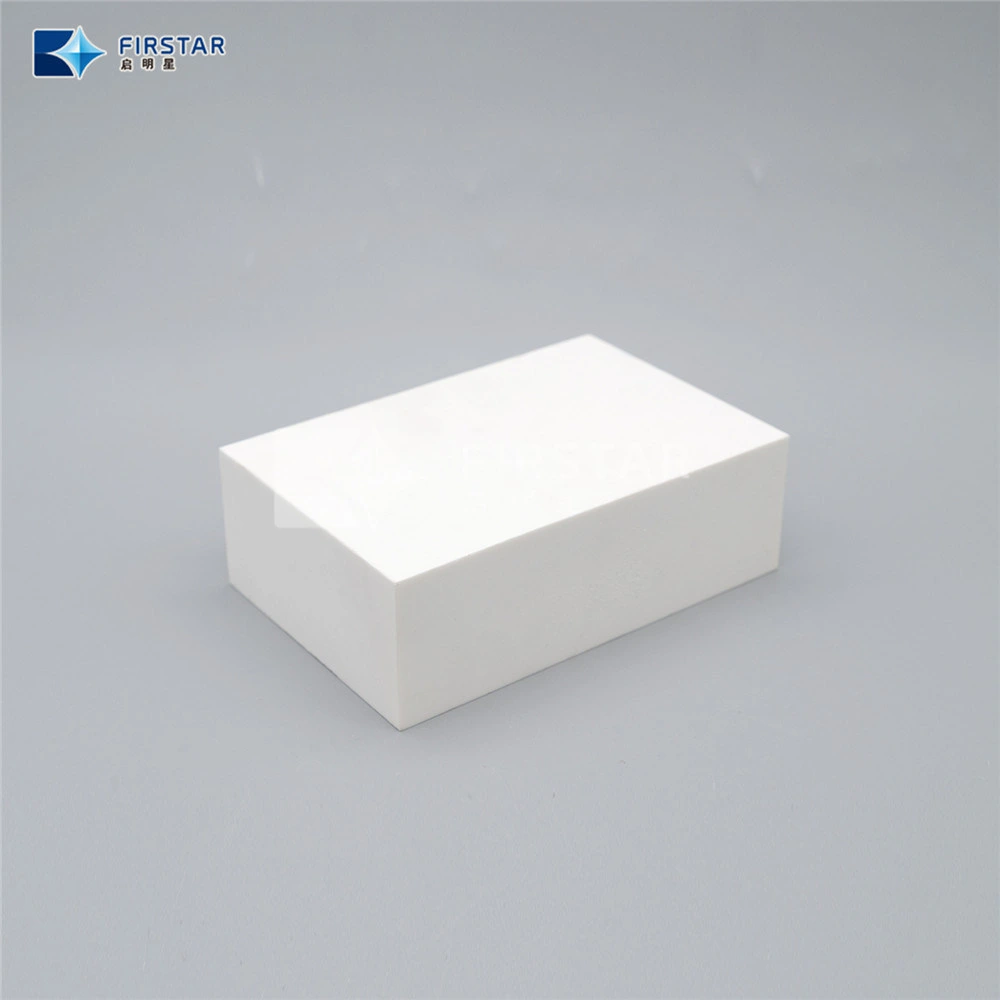

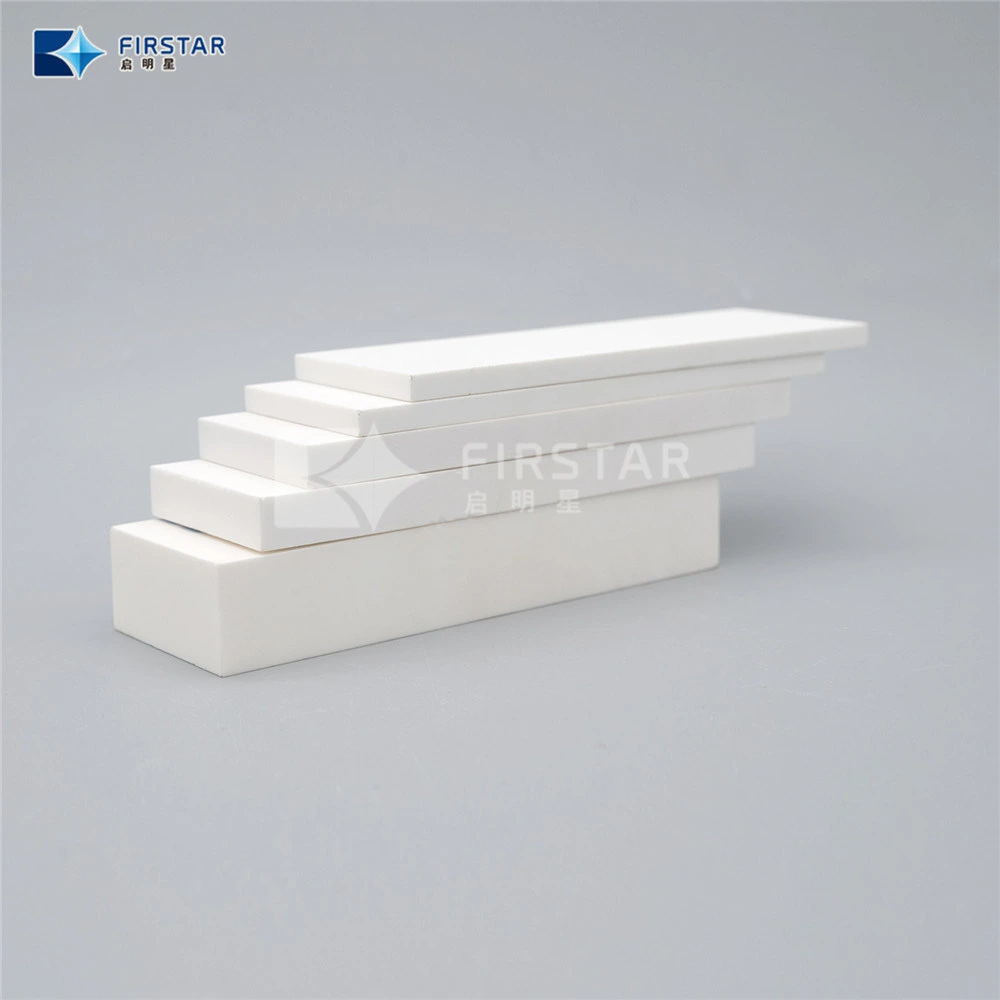

Hot sale white ceramic tile and ceramic wear liner in china
(1) Application
Widely used in power plants, steel mills, chemical, rubber, and coating fields, is the ideal surface wear-resisting material for material transfer equipment in mining, iron & steel works, thermal &powder plants, mine, etc, also used in ceramic, glaze, paint, zirconia silicate, alumina oxide, quartz, silicon carbide, lime carbonate, and mechanical equipment accessories, can extend the operating life effectively.
Theoretically the life time of the alumina ceramic is about 260 times longer than that of manganese steel and 170 times longer than that of chrome steel.
(2) Properties
High density, high hardness, low wear loss, regular shape, impact resistance, corrosion resistance, etc.
(3)Chemical Property
| Category | HC90 | HC92 | HC95 | HCT95 | HC99 | HC-ZTA | ZrO2 |
| Al2O3 | ≥90% | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
| ZrO2 | / | / | / | / | / | ≥21% | ≥95% |
| Density | >3.50g/ cm3 | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.83g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
| HV 20 | ≥900 | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1350 | ≥1100 |
| Rock Hardness HRA | ≥80 | ≥82 | ≥85 | ≥88 | ≥90 | ≥90 | ≥88 |
| Bending Strength MPa | ≥180 | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
| Compression strength MPa | ≥970 | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
| Fracture Toughness KIc MPam 1/2 | ≥3.5 | ≥3.7 | ≥3.8 | ≥4.0 | ≥4.2 | ≥4.5 | ≥7.0 |
| Wear Volume | ≤0.28 cm3 | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 | ≤0.10 cm3 | ≤0.05cm3 | ≤0.02cm3 |
(4)Package
Different package as to meet different customer's requirements.
Wooden Crates carton Plastic Pallet
(5)Application:
Ceramic complex pipeline of glass fiber reinforced plastics,
Alumina ceramic liner for cement cyclone,
Metal complex pipeline and elbow,
Abrasive liner for down spouting,
Abrasive liner for pipeline,
Preheater bracket,
Abrasive wheel of powder.
,
ZIBO QIMINGXING NEW MATERIAL is located in Zibo, Shandong,Near Qingdao port. With an excellent geographical location and a convenient logistics system,This enable us to provide you varies transportation modes (by express/air/sea) according to your needs. Also, ensure us OTD and save your shipping cost. Our 86700 m2 factory has obtained ISO 9001 and ISO 14001 certification and employs over 350 staff members who enable us to provide you with fully custom services upon request.
We accept customized designs, packing, logo or custom material. We can make custom design based on your inquiry. We provide NDA agreement to keep your design in private.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee your satisfaction.
Our business staff have 7~10 years of experience in the industry and can provide you with quality services. All your inquiries will be responded within 24 hours.
PROFESSIONAL
FULL SERVICE
PROTECTION FOR YOUR BENEFIT
FAQ
Q: What is your experience in your products?
A: We have 23 years experience in this industry line. We are professional manufacturer in this area.
Q: What is your MOQ?
A: The MOQ is different as per different products, for example, 1 Ton for ceramic ball.
Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first.
Q: Can you provide free sample?
A: Yes, within 10kg.
Q: What is your production time?
A: We have large stock for standard products. Normally within 7-10days after receipt the deposit.
Q: What are your payment terms?
A: T/T, L/C, Western Union
