Product Description

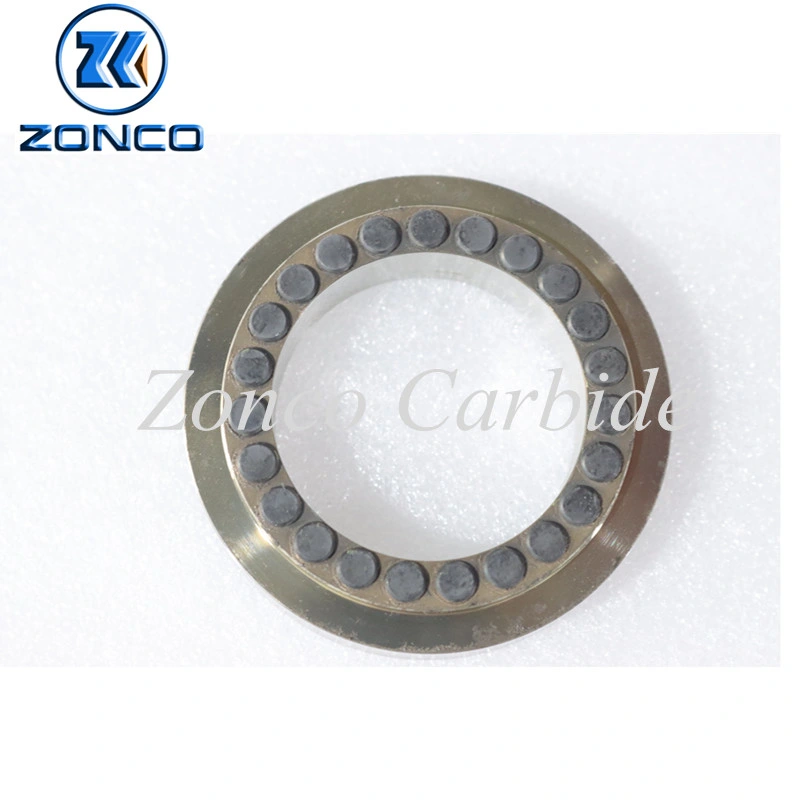

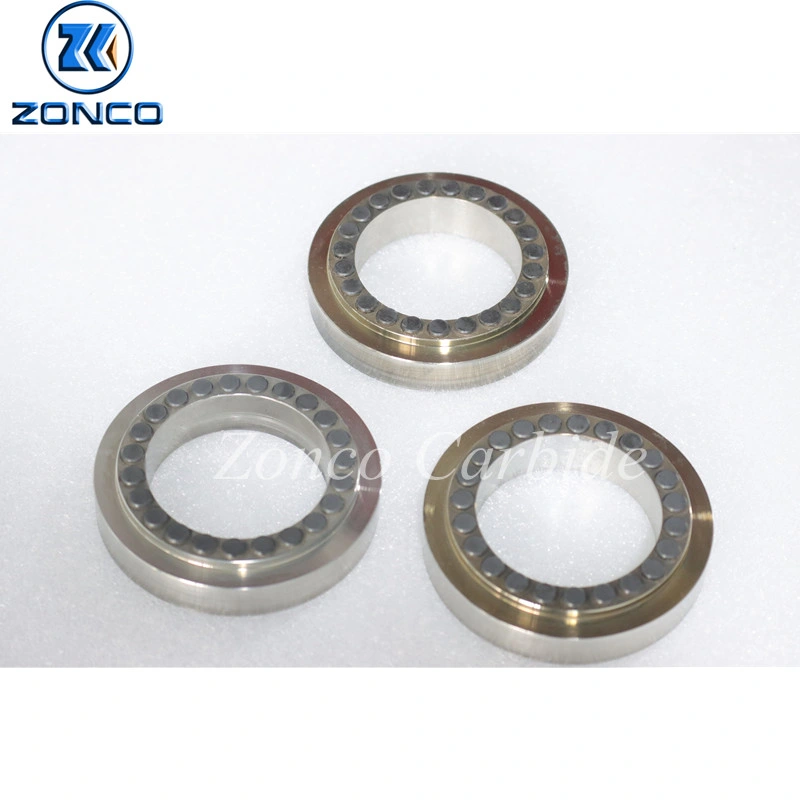

High Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor



1.Product Introduction of PDC Thrust bearing

Thrust ball bearings are kind of separable bearings and available in both single and bi-directional types.

For the single direction thrust ball bearings, they can bear axial load only from the single direction, while for double-direction thrust ball bearings, they can bear axial load from two directions.

However, both of the two kinds of bearings can not bear radial load.

Therefore these bearings are unsuitable for high speed operation and their limit speeds are very low. Bearing ring mounted on the shaft are called shaft rings, and those mounted in thehouing are called housing rings.

Typical applications: live centers in lathes, automotive clutches, speed reducer, etc.

2.Product Specification of PDC Thrust bearing

The bearings are available in size from 1inch to 10inch in diameter.We can make PDC Radial bearing and PDC Thrust bearing as your specific drawings or samples.

3.Production Feature and Application of PDC Thrust bearing

1.High Hardness
2.High wear resistance
3.High corrosion resistance
4.Longer service life
5.widely used in turbo drills, mud motors and many other oil field applications.

High Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor

Product NameHigh Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor
BrandZonco
Material100% Virgin Steel/Tungsten carbide
FeatureHigh Hardness,High wear resistance,High corrosion resistance,Longer service life
MOQ1 Piece





Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application

GradeWC%Co/Ni %Physical and mechanical propertiesGrain size (μm)Recommended application
Density (g/cm3)TRS (N/mm2)Hardness (HRA)
ZG01100015.3-15.5120095.50.3Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X96415.0-15.2160092.80.8-1.0Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG0694614.8-15.1250090.01.2Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X94614.8-15.1240091.51.0Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A94614.8-15.1215092.50.6-0.8
ZG0892814.6-14.9270089.01.2-1.6Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2901014.3-14.6380091.70.7Good general performance, suitable for casing and oil nozzle products
ZG11891114.3-14.7280088.51.2-1.6Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X881214.2-14.5300089.51.0-1.2Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15851513.8-14.2300086.51.2-1.6
ZG15X851513.8-14.2450089.00.7Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20802013.4-13.8310085.01.0Excellent wear resistance and toughness
ZN0694614.5-14.9200090.01.2Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN0991914.3-14.6230089.01.2-1.6
ZN11891114.0-14.3260088.01.2

High Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor


High Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor

Advantages:

Advanced process design

Specialized in production

Unique material properties

Personalized customization

Whole process quality control system

Strong supply ability guaranteed


High Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor


High Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor

High Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor
High Precision High Load Radial Tc Bearing, Tungsten Carbide Tiled Bearing for Mud Motor
