Product Description

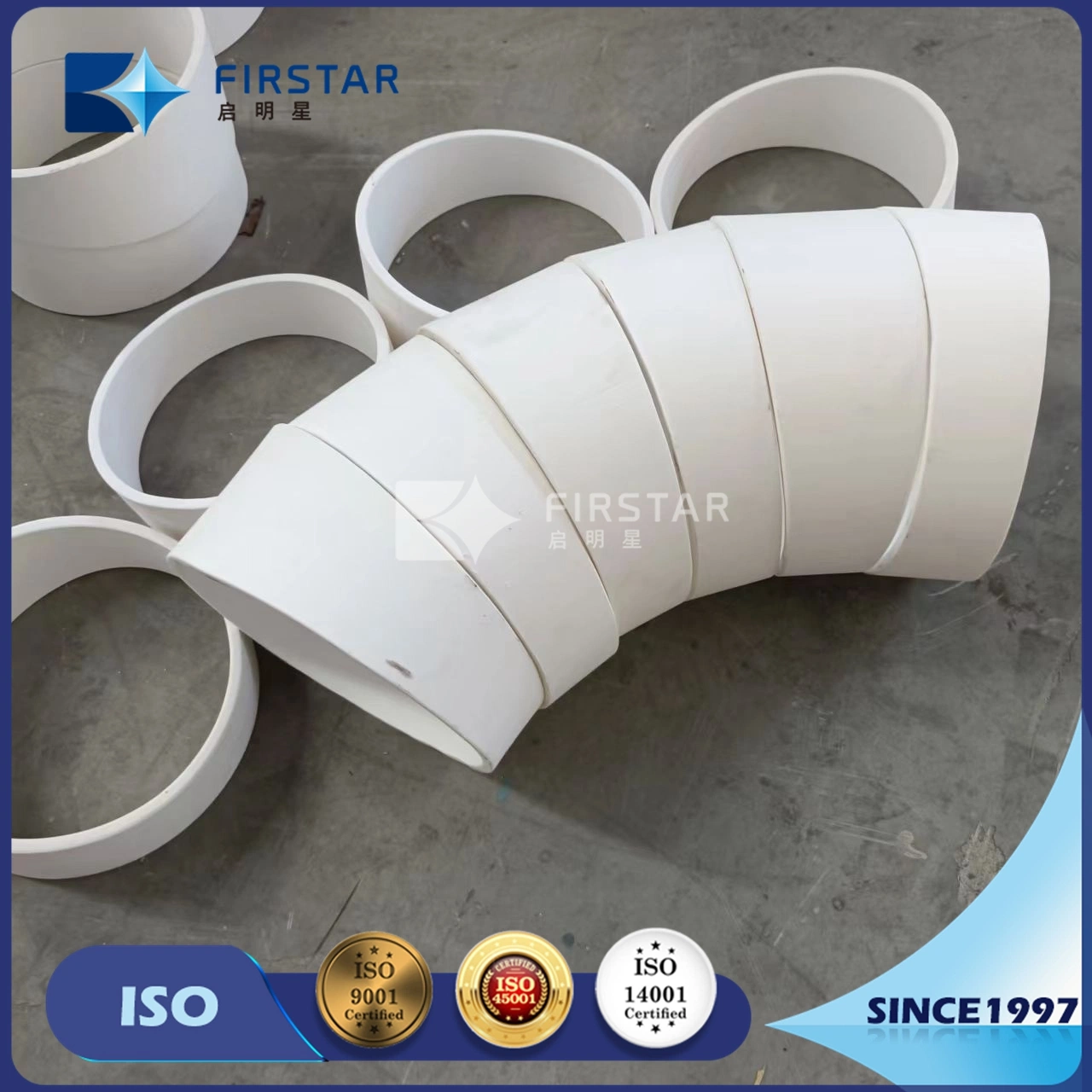

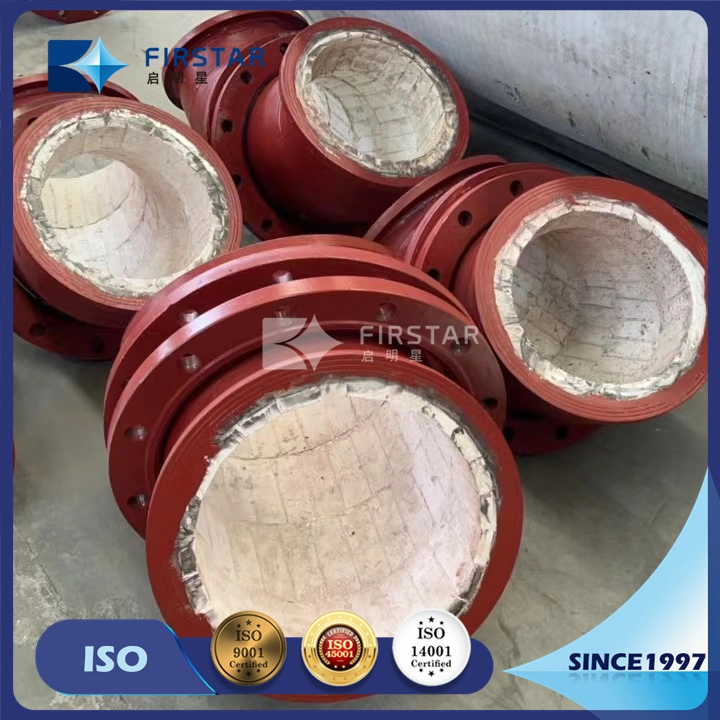

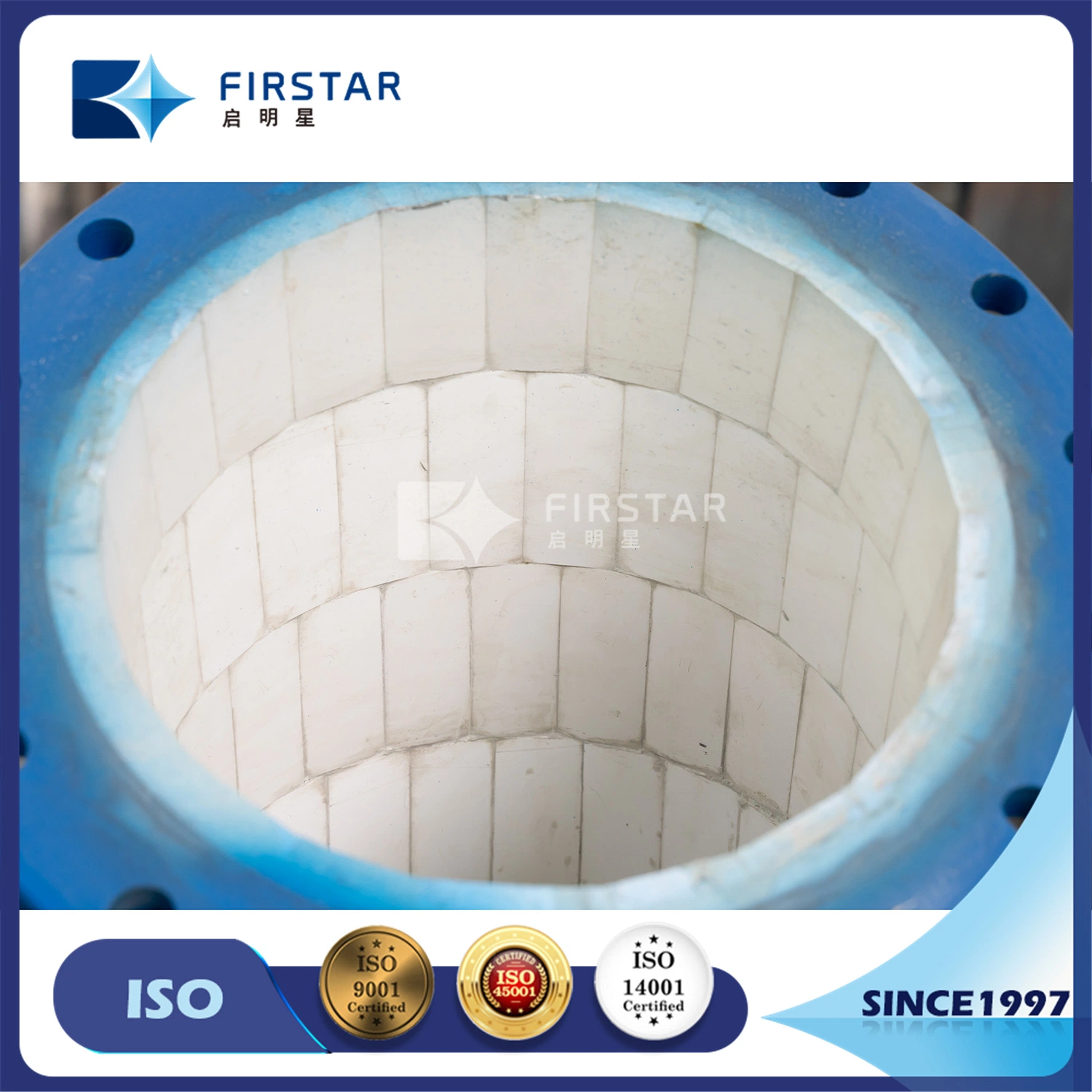

China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00qHgitCnYJWrl/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
l Alumina 92: most common wear product with great wear resistance
l Alumina 95: increased wear performance
l Alumina T95: premium alumina for best wear resistance
l Zirconium toughened alumina(ZTA): increased strength and impact resistance
2.Product features:
> High hardness
> Superior abrasion and impact resistance
> Corrosion and chemical resistance
> Light weight
> Easy installation by epoxy resin or bolt
> Improve your working environment-noise, vibration and safety
3. Product Specification:
- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.
- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.
- Hexagonal tile: S12.5xT3~20mm, S23.5xT6-25mm
- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)
- Ceramic Block: 40x40x40mm, 45x45x50mm,32x32x22mm, 38x38x38mm,etc.
- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.
5. Ceramic wear lining tiles for a variety of applications:
Processing equipment:
l Pharmaceutical clean rooms
l Food processing plants
l Grain handling
l Mineral processing
l Cement manufacturing
l Chemical processing
l Large Cyclones:
l Coal-fired power plants
l Steel Mills
l Asphalt Plants
l Petrochemical plants
l Pulp and paper mills
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00cIghtNnWhVul/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00eHzhtQnsalgW/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00MDzVEpyrsWgl/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00BHpWahNtsVzl/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00MHphQCFIglgV/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00eIuhaONMZVpW/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00KDrVaENdHhui/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
Category | HC90 | HC92 | HC95 | HCT95 | HC99 | HC-ZTA | ZrO2 |
Al2O3 | ≥90% | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
ZrO2 | / | / | / | / | / | ≥21% | ≥95% |
Density | >3.50g/ cm3 | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.83g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
HV 20 | ≥900 | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1350 | ≥1100 |
Rock Hardness HRA | ≥80 | ≥82 | ≥85 | ≥88 | ≥90 | ≥90 | ≥88 |
Bending Strength MPa | ≥180 | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
Compression strength MPa | ≥970 | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
Fracture Toughness KIc MPam 1/2 | ≥3.5 | ≥3.7 | ≥3.8 | ≥4.0 | ≥4.2 | ≥4.5 | ≥7.0 |
Wear Volume | ≤0.28 cm3 | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 | ≤0.10 cm3 | ≤0.05cm3 | ≤0.02cm3 |
Qimingxing offer quality wear and Ant- impact ceramics, in combination with our experienced and competent staff, ensure the increased efficiency and service life of all equipments and materials to which they are applied. - Established Ultrafine Energy Efficiency Technology Research Institute - Increase lifespan of wearable parts - New improved technology and products - Minimal downtime to minimize delays in production - Variety of wear combating options available as a one stop solution - Strong focus on product innovation supported by Chinese Academy of Sciences. - Customized application techniques to suite any wear problem
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00NIzVQEyoaWgi/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00OHzWarydClpV/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00FDpWtiyRahrV/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
More Abrasion ceramics products : abrasion ceramics , Alumina ceramics , wear resistant ceramics , alumina pipe liner , ceramic tube , alumina cylinder pipe , wear resistant alumina plate , abrasion ceramic tile , abrasive alumina sheet , friction plain tile , abrasion weldable tile , rubber backed ceramic liner , ceramic composite linings , alumina mosaic sheet , ceramic taper tile for pipe sleeve , ceramic ladder tile for pipe steel , engineering ceramics equipment , pre-fabricated pipe sleeve ,wear resistant bending pipe , abrasion materials
![China Wholesale Steel Pipe with Alumina Ceramic Tube/Ceramic Cylinder Rings/Plates Tiles](http://img6.grofrom.com/www.yuhejitilesupply.com/226f3j00nIgWaNOlZVpi/China-Wholesale-Steel-Pipe-with-Alumina-Ceramic-Tube-Ceramic-Cylinder-Rings-Plates-Tiles.webp)
FAQ
Q: What is your experience in your products?
A: We have 22 years experience in this industry line. We are professional manufacturer in this area.
Q: What is your MOQ?
A: The MOQ is different as per different products, for example, 1 Ton for ceramic ball.
Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first.
Q: Can you provide free sample?
A: Yes, within 1kg.
Q: What is your production time?
A: We have large stock for standard products. Normally within 7-10days after receipt the deposit.
Q: What are your payment terms?
A: T/T, L/C, Western Union
